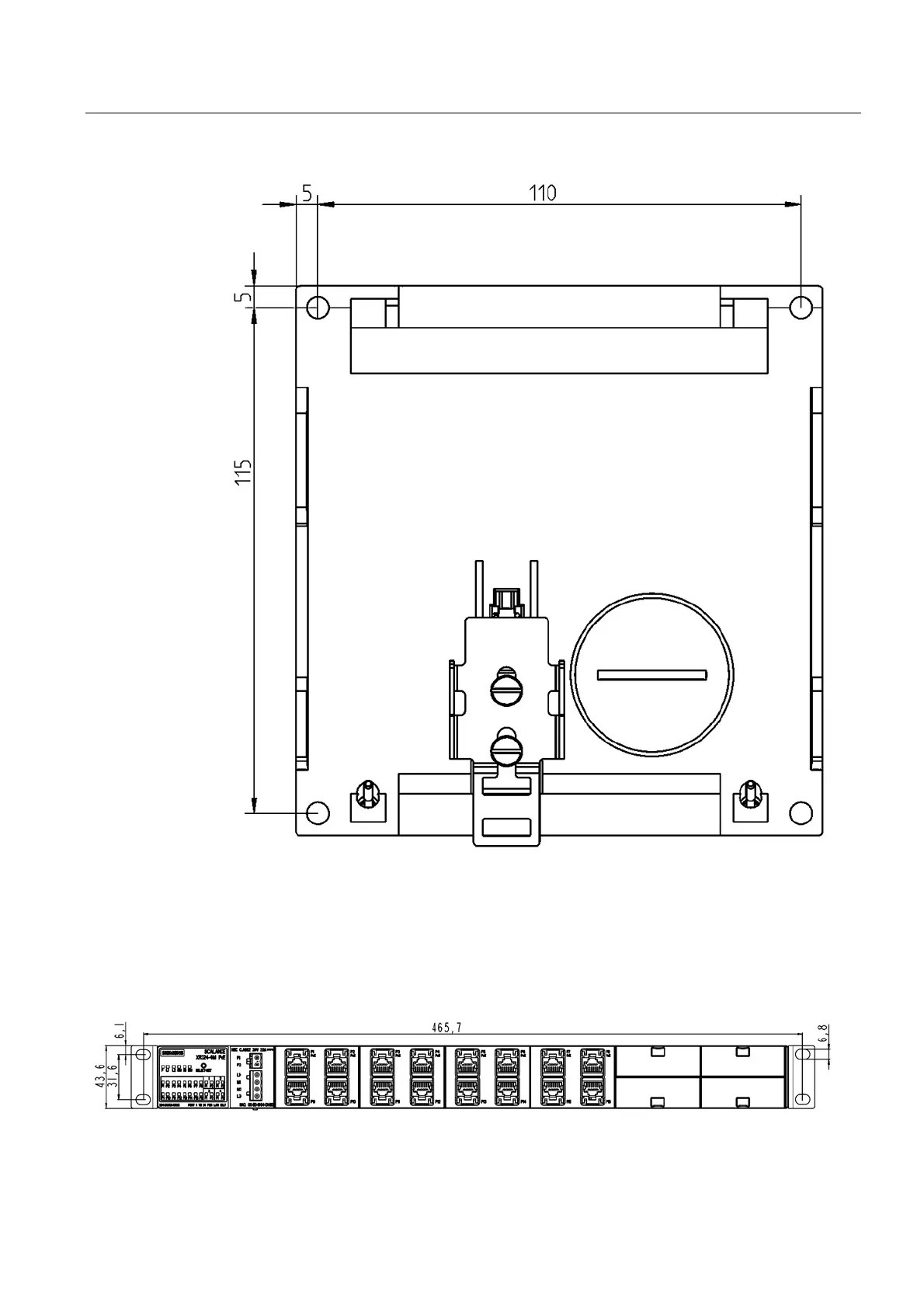

11.9 XR-300M PoE dimension drawings
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043
-10
273
Figure 11-30
X308-2M PoE: Drill
ing template
11.9
XR-300M PoE dimension drawings
All dimensions in the drawings are in mil
limeters.
Figure 11-31
XR324-4M PoE: F
ront view
272
274
