11.3 XR-300M dimension drawings
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
257

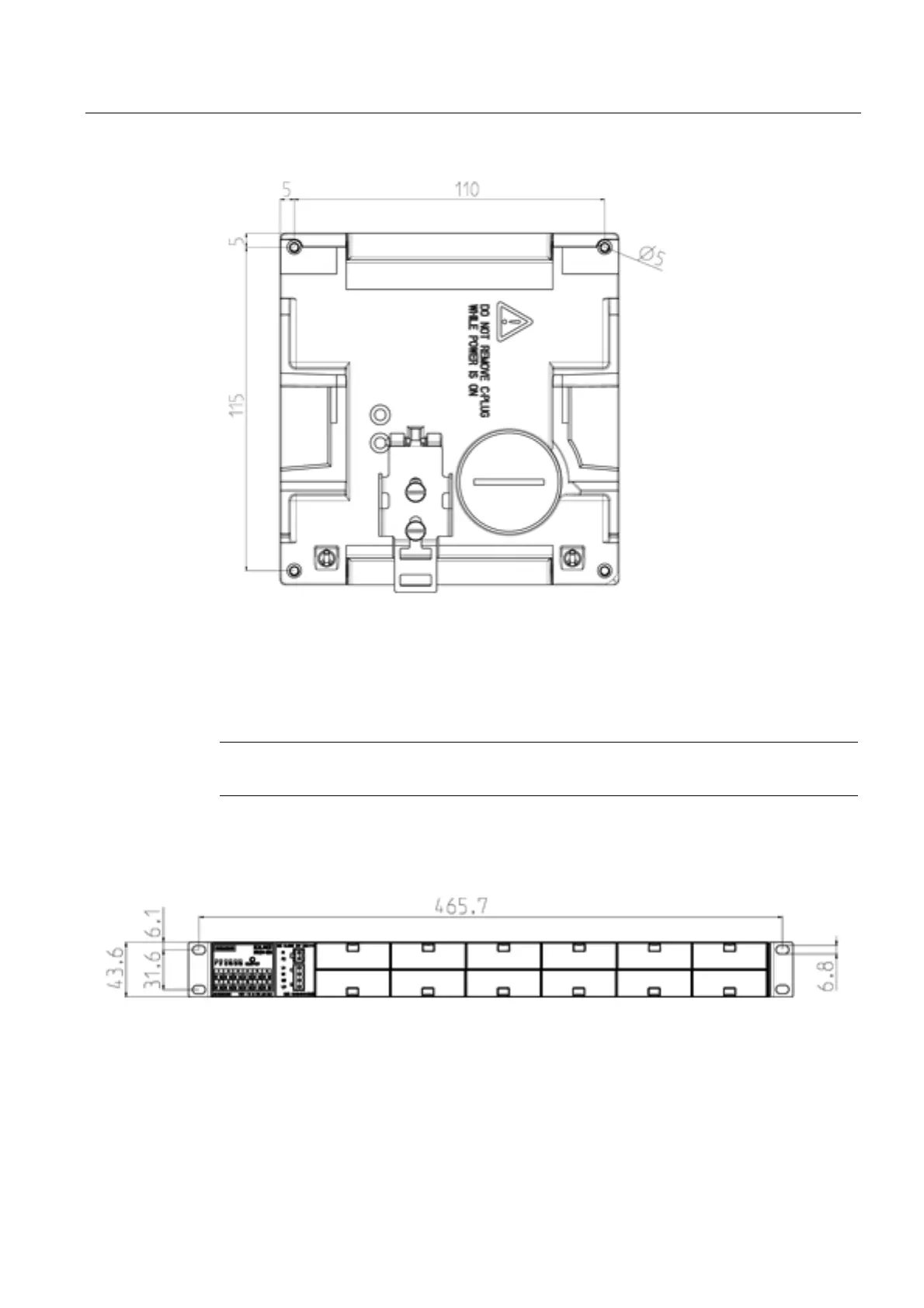

Figure 11-9 X308-2M drilling template
11.3 XR-300M dimension drawings
Note
The following dimension drawings are available for the XR-300M product group.
Figure 11-10 Front view of the XR324-12M
