Graphics
11.6 MM900 dimension drawings
SCALANCE X-300
268 Operating Instructions, 10/2010, A5E01113043-10

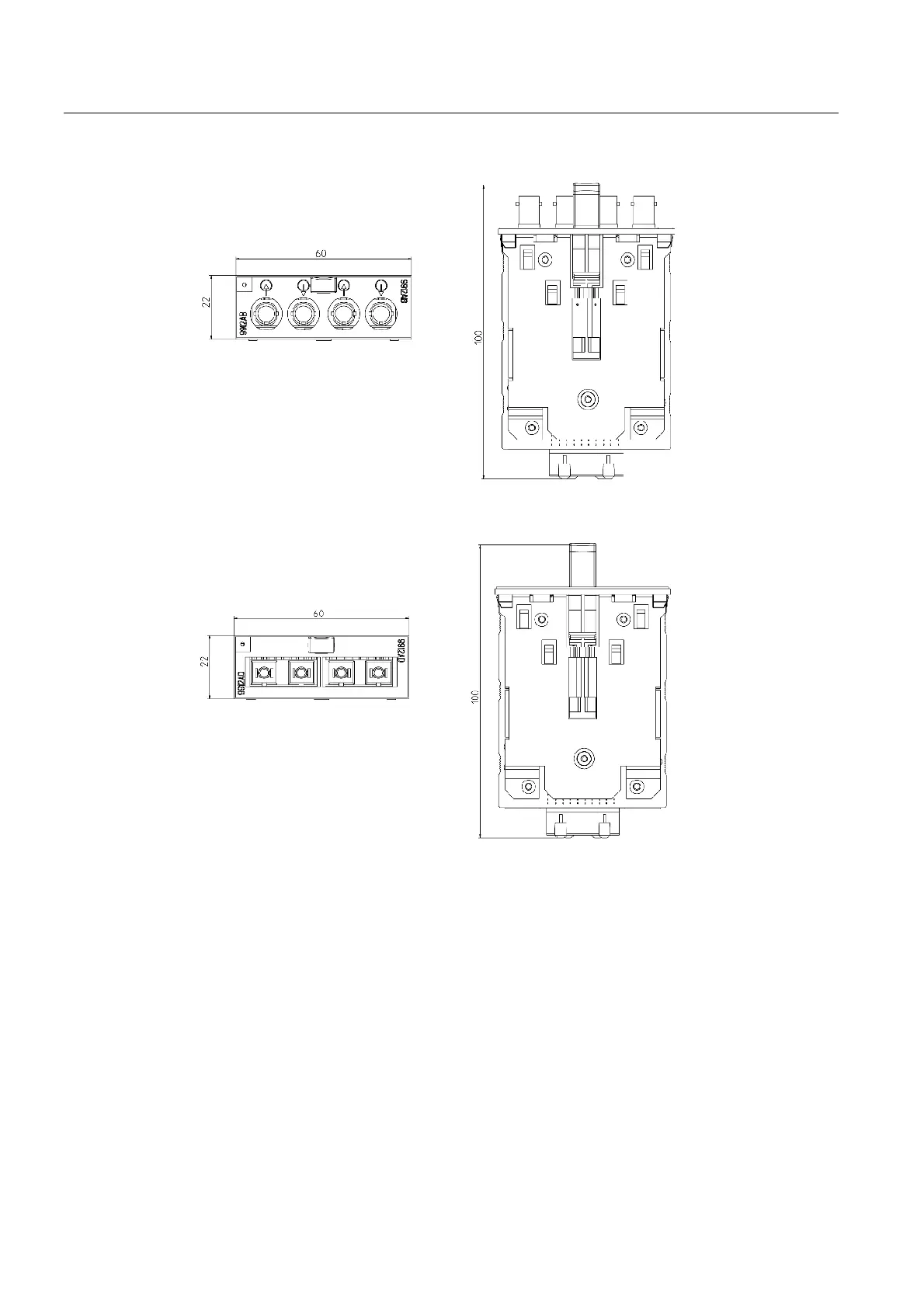

Figure 11-24 MM900 dimension drawing 3: BFOC ports
Figure 11-25 MM900 dimension drawing 4: Optical SC ports
