Network topologies
3.3 Ring with redundancy manager
SCALANCE X-300
34 Operating Instructions, 10/2010, A5E01113043-10
Configuration example
Sample configurations with IE Switch X-300, SIMATIC S7-200/300/400, operator control and
monitoring system, H system, and PC as end devices.

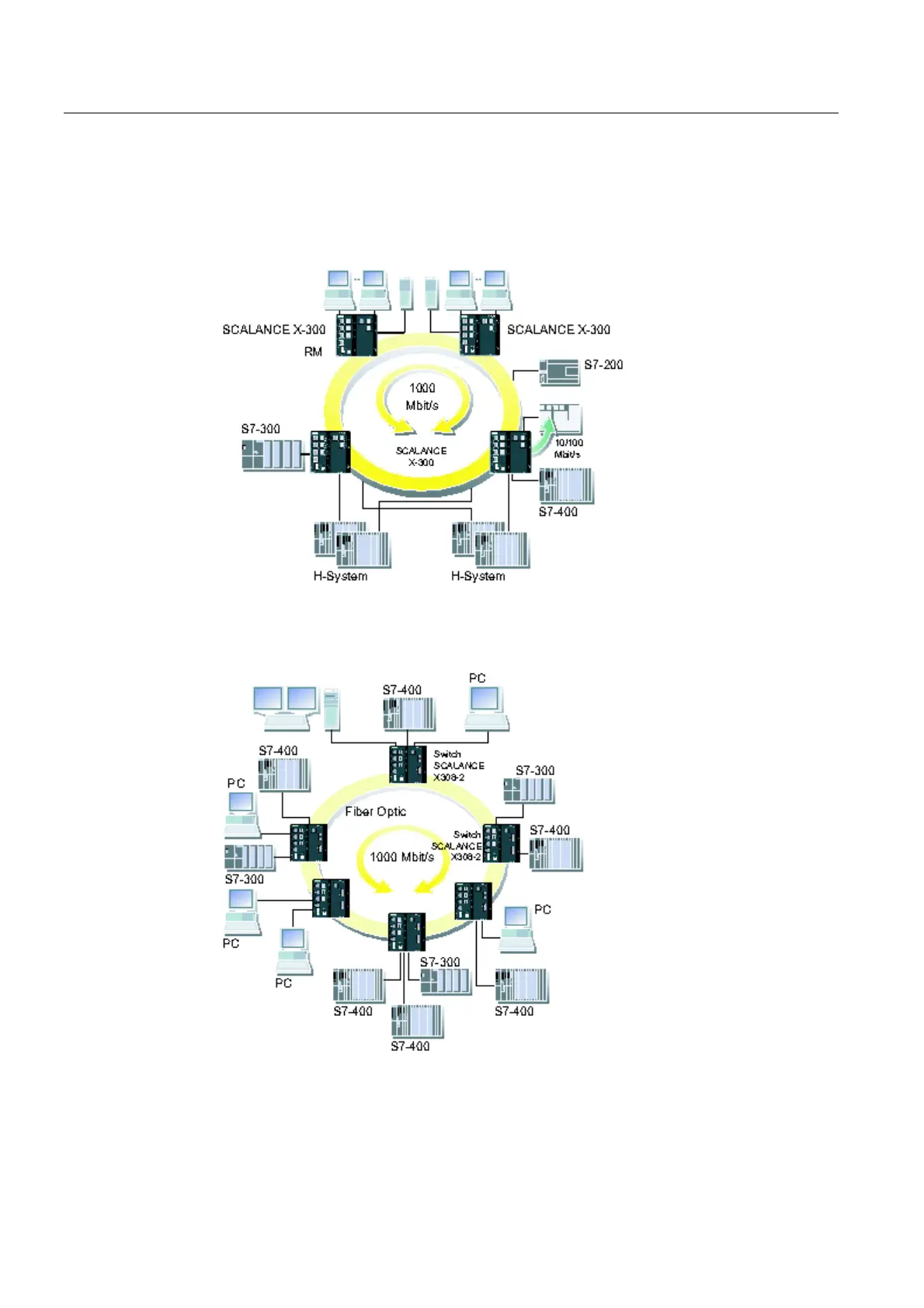

Figure 3-3 Gigabit ring with redundancy manager (RM)
Figure 3-4 Ring with FO cable and redundancy manager
