Description of the device
4.2 Product groups
SCALANCE X-300
Operating Instructions, 10/2010, A5E01113043-10
65
Ports of the X307-2EEC
The SCALANCE X307-2EEC has the following ports:
● 7 electrical ports (P3 to P9)
– 5 Fast Ethernet ports (P3 to P7)
– 2 gigabit ports (P8, P9)
● 2 optical Fast Ethernet ports (P1, P2)

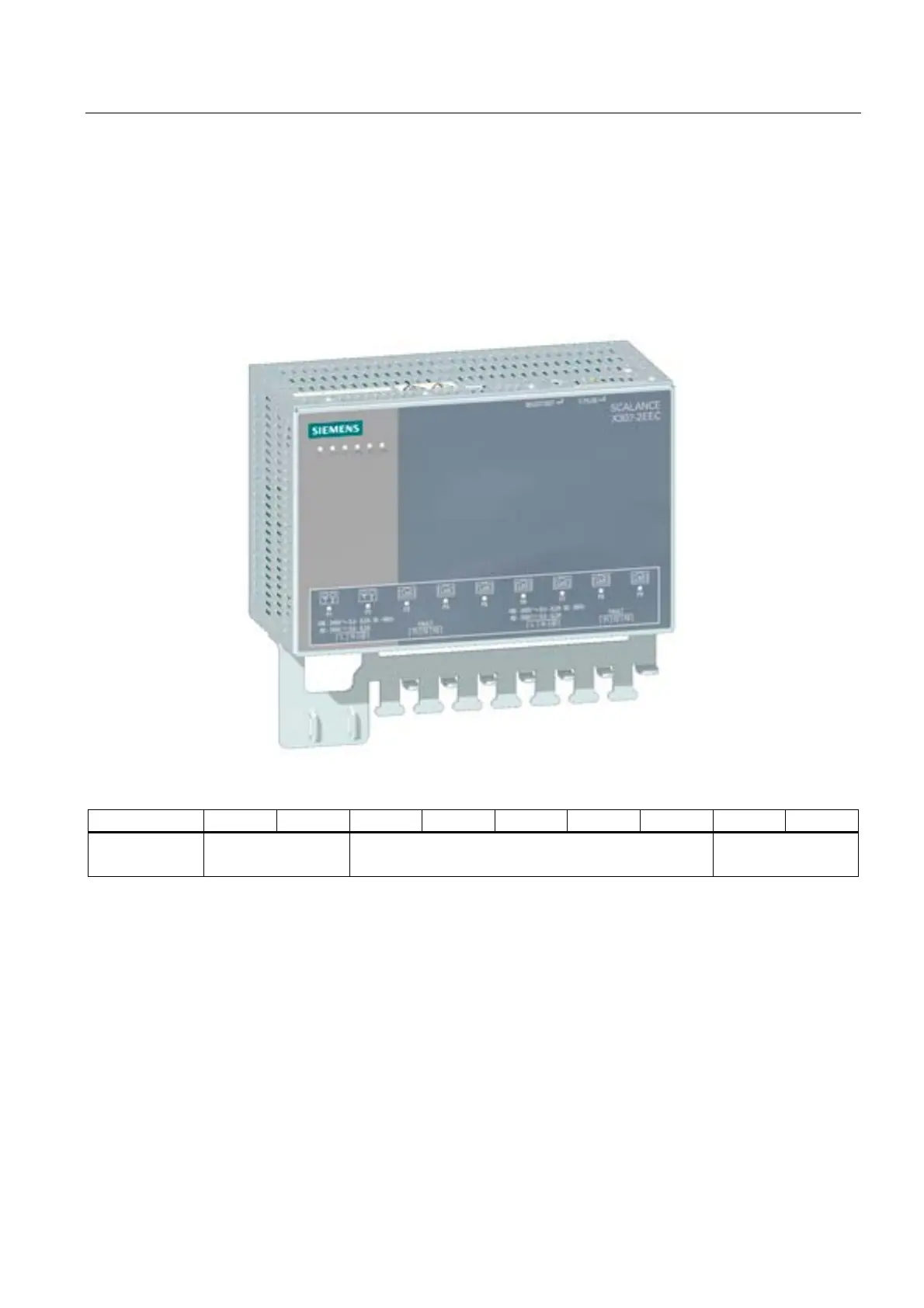

Figure 4-20 SCALANCE X307-2EEC
Port number P1 P2 P3 P4 P5 P6 P7 P8 P9
Connection type Optical
Fast Ethernet
Electrical
Fast Ethernet
Electrical
Gigabit
