4.4.2 Permitted mounting position
The only permissible mounting position is horizontal, i.e. the display is read hori-
zontally. Adequate ventilation cannot be guaranteed in other mounting positions

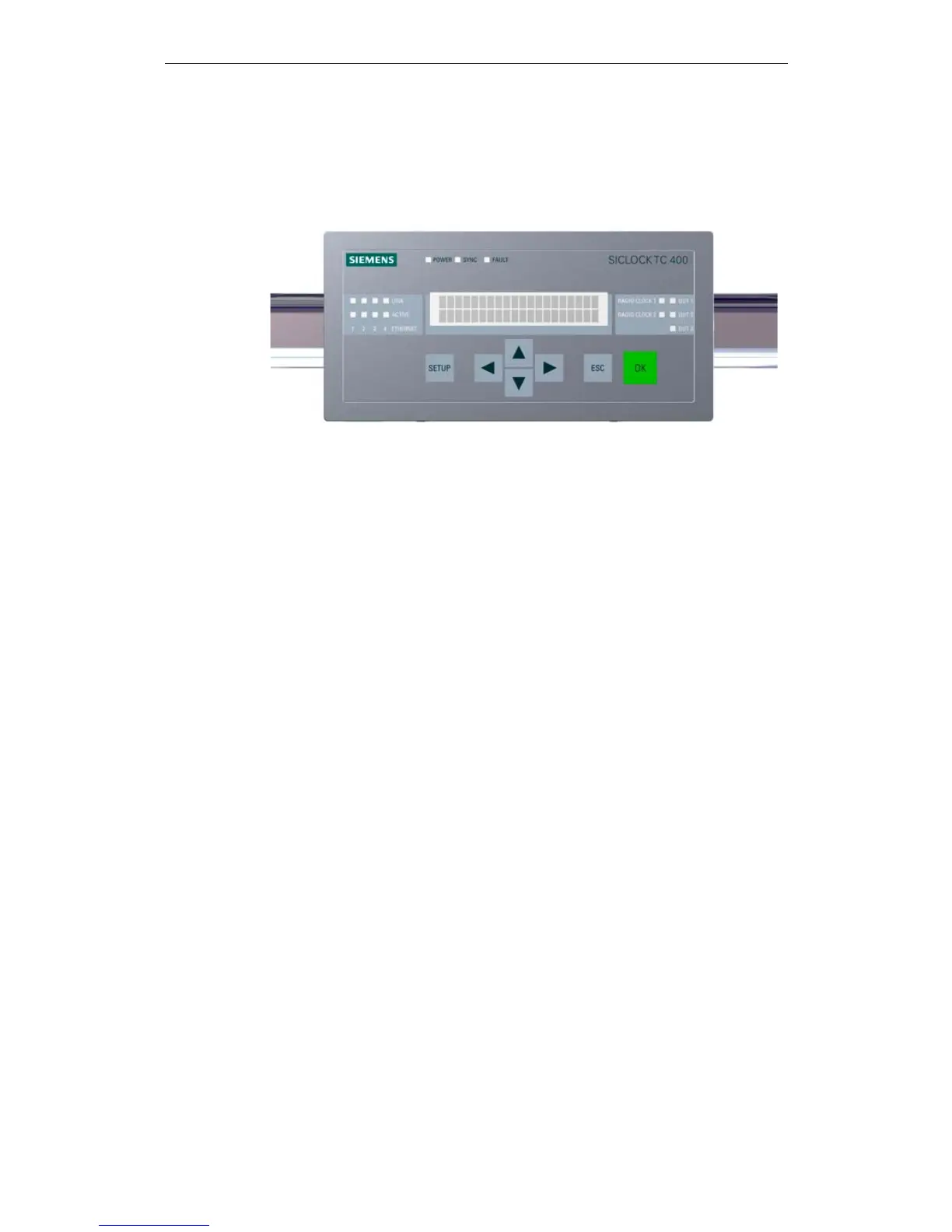

Figure 4-1 Horizontal mounting position
4.4.3 Fixing method
The housing can be snapped onto DIN rails or fixed to SIMATIC S5 standard
mounting rails.
See also Installation overview (Section 5.1).
