Siemens SICLOCK TC 400

Connecting
6-41
© Siemens AG 2007 All Rights Reserved
SICLOCK
®
TC 400
6.4 Connecting the time receivers
Time receivers can be connected via point-to-point connections (OUTPUT 1 to 3)
or via Ethernet.
Four Ethernet ports are available for the Ethernet connection and can be param-
eterized accordingly.
A redundant point-to-point connection can be implemented via OUTPUTs 1 and
2 when two SICLOCK TC 400s are used.
6.4.1 Point-to-point connections via OUTPUT 1 to 3
Current signal – low-resistance receiver (e.g. optocoupler)
Point-to-point connections via an active current interface can be connected to
OUTPUTs 1 and 2 as shown in Fig. 6-6.

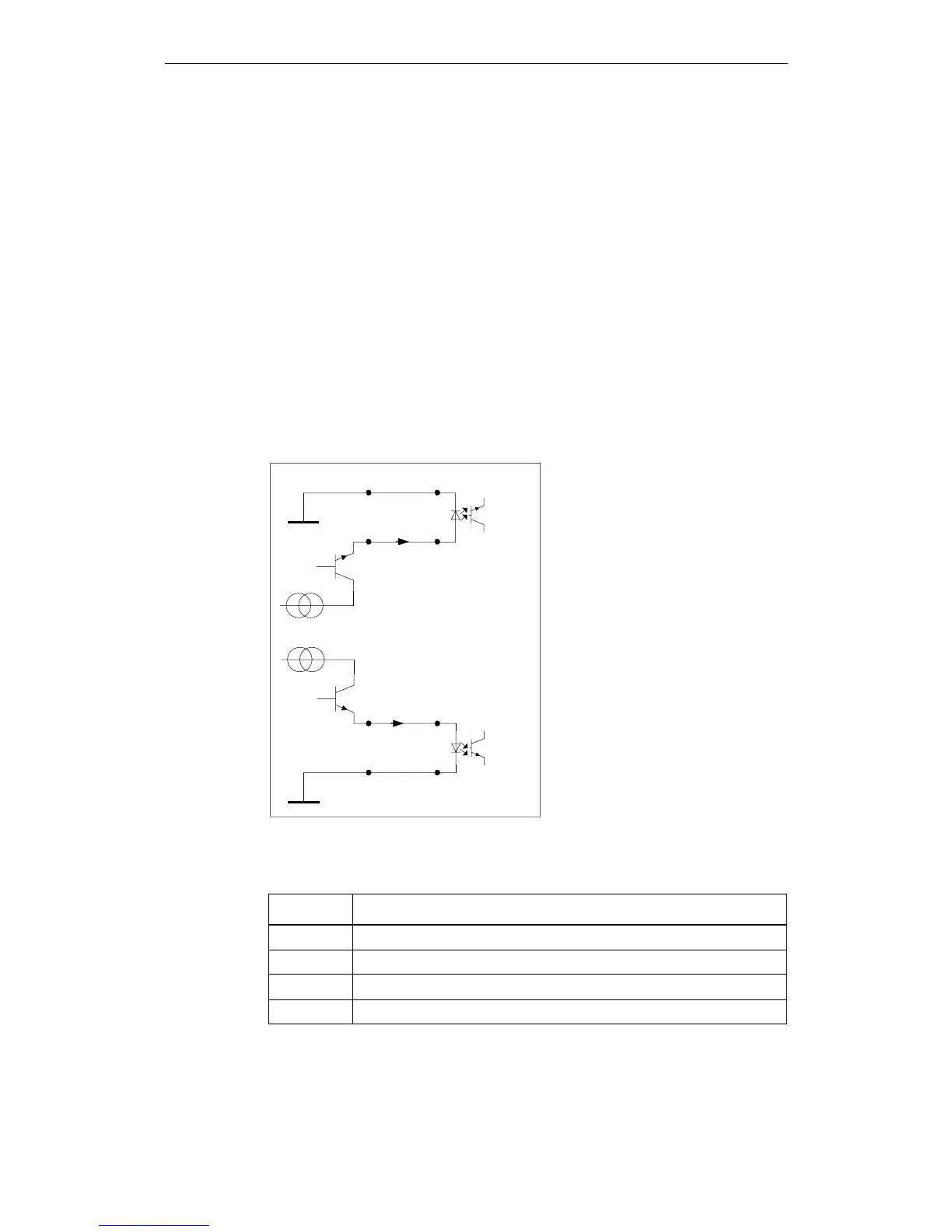

Figure 6-6 OUTPUTs 1 and 2 as current interface
Table 6-3 Terminals of OUTPUTs 1 and 2
Terminal Designation
1OUTPUT 1 GND
2OUTPUT 1
3OUTPUT 2
4OUTPUT 2 GND
2
1
24 V / 20 mA
3
4
77<DFWLYH
