Siemens SICLOCK TC 400

Connecting
6-43
© Siemens AG 2007 All Rights Reserved
SICLOCK
®
TC 400
6.4.2 Redundant point-to-point connections
OUTPUT 1 and OUTPUT 2 of the devices are decoupled internally so that one
output of each device can be connected in parallel to the same time receiver.

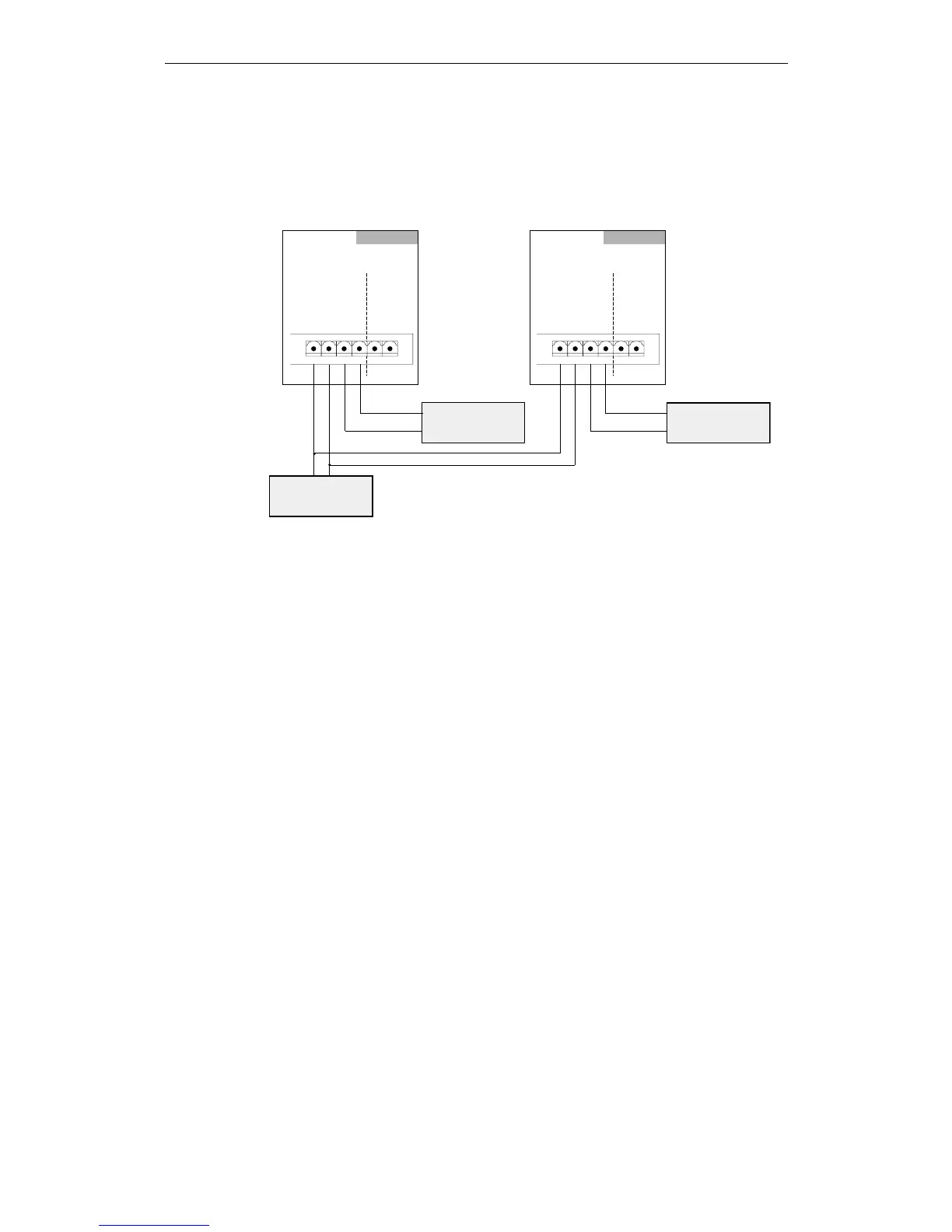

Figure 6-8 Example with redundant time reception at OUTPUT 1
Further information
Redundancy (Section 2.6)
OUTPUT 1 and 2 redundant (Section 9.2.4)
6,&/2&.
287387*1' 287387*1' 287387 287387
 

ಹ
ಹ
6,&/2&.
287387*1' 287387*1' 287387 287387
 

ಹ
ಹ
7LPHUHFHLYHU
7LPHUHFHLYHU
UHGXQGDQWWLPHIURPERWK
6,&/2&.DQG
UHVSHFWLYHO\
7LPHUHFHLYHU
