Hardware Description
3-21
© Siemens AG 2007 All Rights Reserved
SICLOCK
®
TC 400
3.3 Operator controls and displays
The front panel shows the current mode in the display and with LEDs. The device
can be operated directly via the keypad. A Web-based configuration tool is avail-
able for a wide range of configuration options, see Configuration Tool
(Section 7).

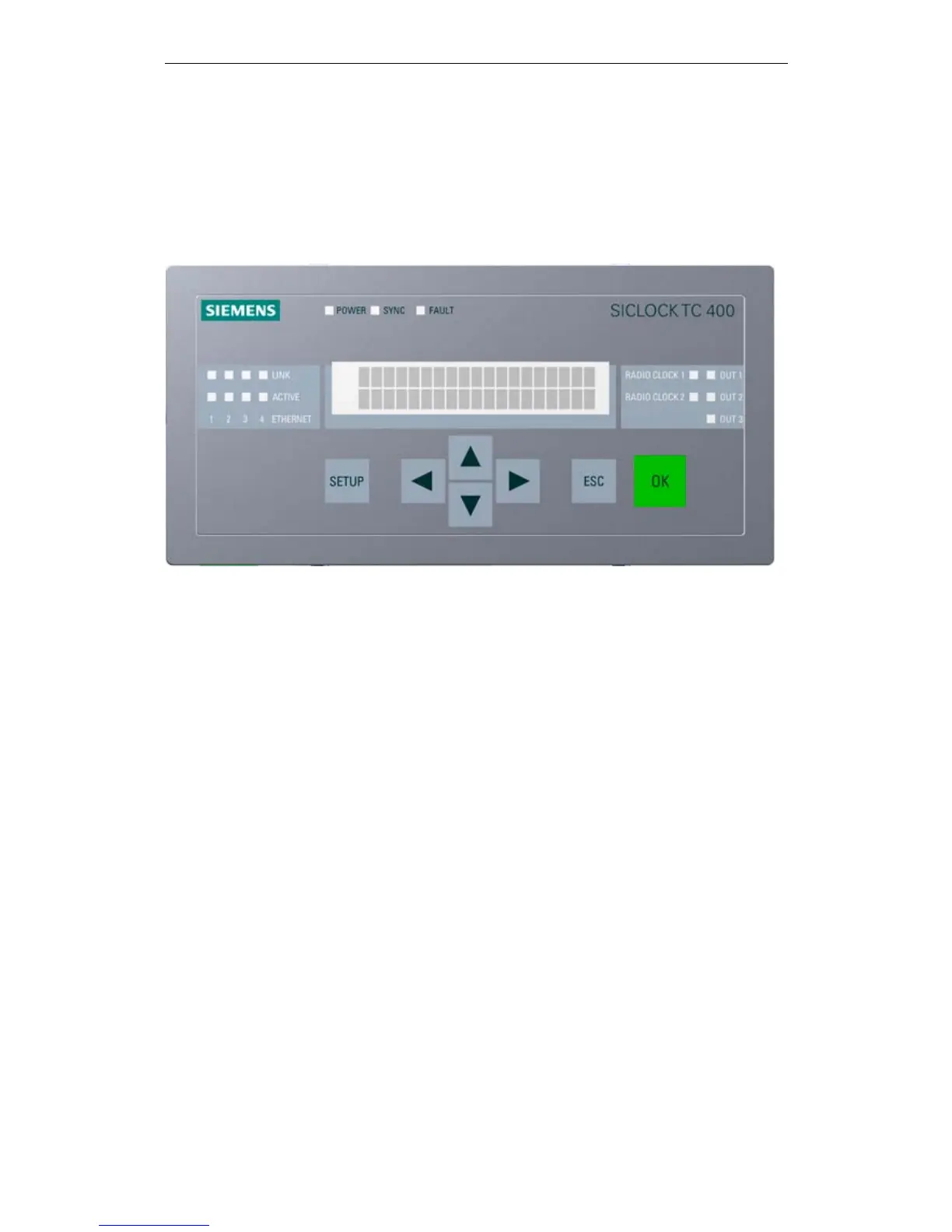

Figure 3-3 SICLOCK TC 400 front view
