Diagnostics Using the User Program
10-6
DP/PA Link and Y Link Bus Couplings
A5E00193841-011
Device identifier
The device identifier is a code that uniquely identifies the DP slave (PROFIBUS ID
number).

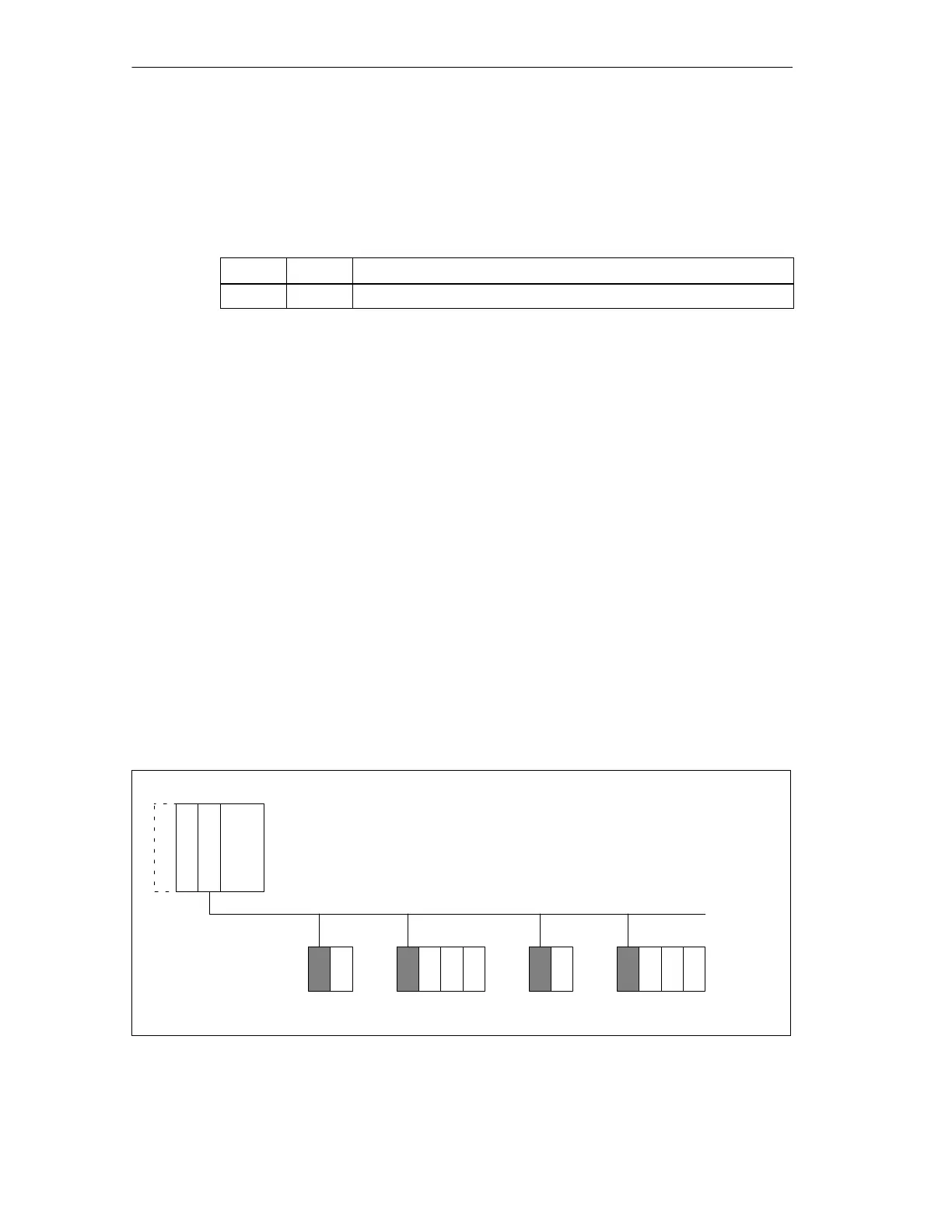

Table 10-6 Structure of the device identifier
Byte 4
Byte 5 Designation
80
H
52
H
IM 157
10.2.2 Module diagnosis
The module diagnosis identifies the IM 157 slots for which there is a diagnosis.
The terms slave, module and slot
A slave is a bus node that can be accessed via a separate PROFIBUS address. It
can physically or logically consist of one or more modules. The slaves and their
modules are depicted in the module diagnosis in virtual slots:
A non-modular slave always occupies two slots.
The first slot represents a “virtual header module” and the second a “virtual
module”.
A modular slave that consists of x modules occupies x+1 slots.
The first slot is assigned to the header module; the remaining slots are
assigned in ascending order to the individual modules.
Example of a slot assignment
Underlying PROFIBUS
IM157
IM157
Coupler
Link
Slot
PROFIBUS address
1st slave
12
3
2nd slave
34
4
5 6
3rd slave
78
5
4th slave
910
7
11 12
Figure 10-2 Example of a slot assignment
