Fundamentals of PROFIBUS-PA
A-5
DP/PA Link and Y Link Bus Couplings
A5E00193841-011
A.4 Partyline and star-type topology
Topology
PROFIBUS-PA can have a partyline or star-type topology.
PROFIBUS-DP
PROFIBUS-PA
24 VDC
DP/PA coupler
(with integrated
bus terminating
element)
Distribution box
Line
T junction
Star
Main line
Spur line
Bus terminating element
Spur line

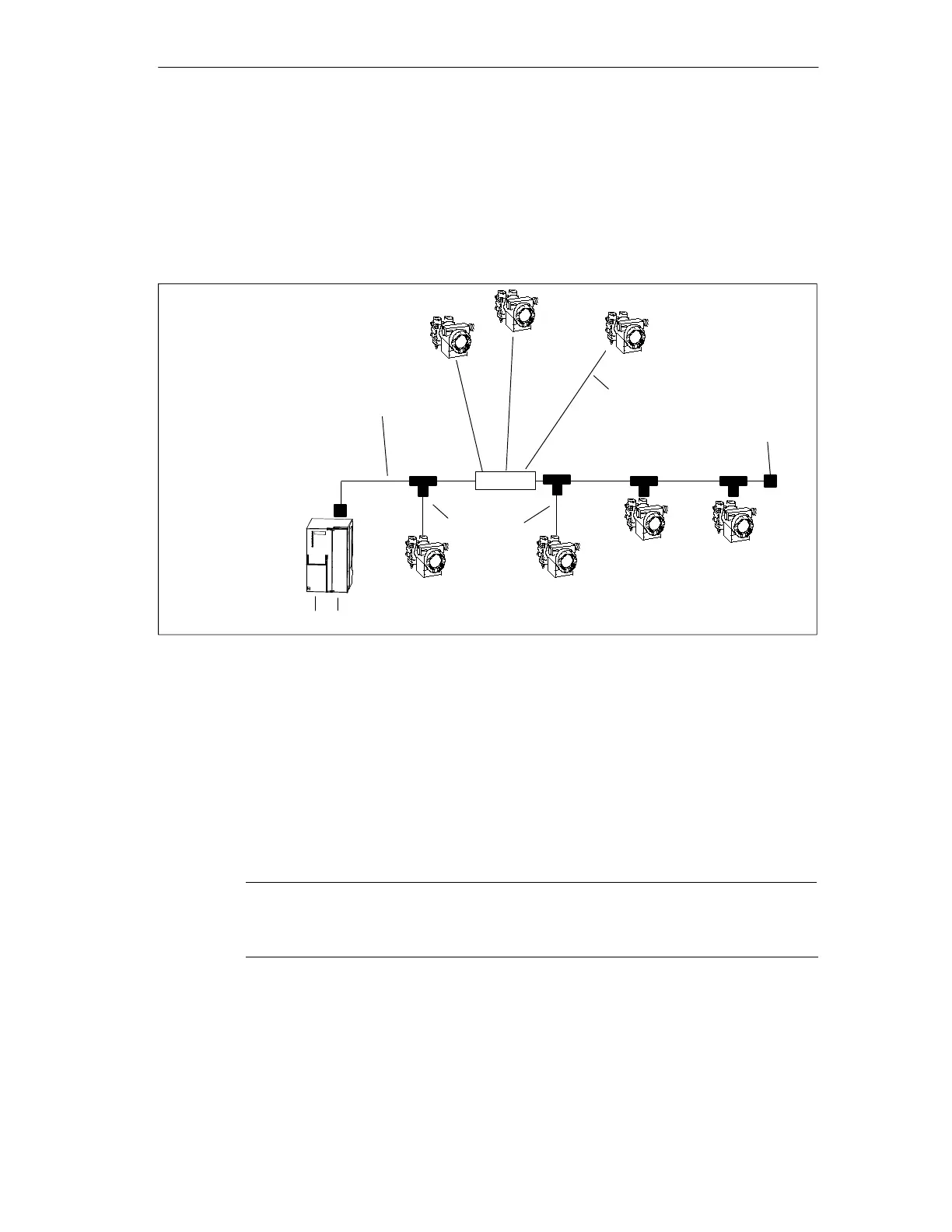

Figure A-3 Partyline and star-type topology
Network extension
For a standard PROFIBUS-PA cable (cable type A as per PNO), the maximum
length of the trunk and spur lines is as follows given maximum power consumption
from the DP/PA coupler:
560 m for the DP/PA coupler (6ES7 157-0AC80-0XA0)
920 m for the DP/PA coupler Ex [i] (6ES7 157-0AD81-0XA0)
Note
Longer cables are possible if the overall power consumption of the PA field
devices is low and if they are distributed.
