Siemens SIMATIC Box PC 820 User Manual

1-5
Box PC 820 / PC FI45 V2, Manual
A5E00051531-03
312
106,68
8,19
(12,28)
(4,2)
(0,32)
All measurements in mm
(All measurements in inches)

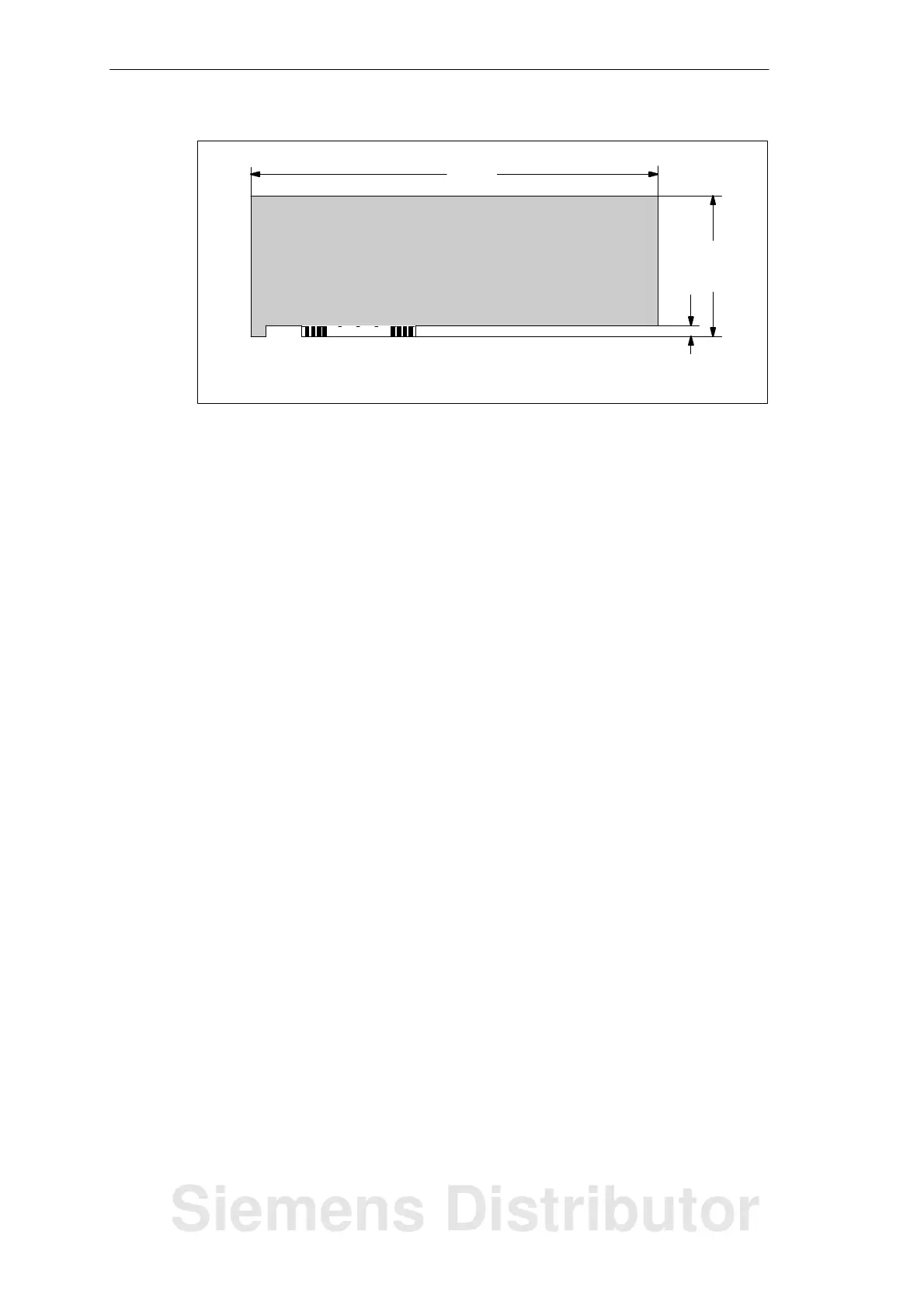

Figure 1-5 Large PCI Module (5 V)
Information on Large PCI Modules
Large PCI modules have to be equipped with a so-called extender (usually
included with large PCI modules) which serves to guide them along the rails of the
ventilator case. The extender guides large PCI modules along the rails of ISA
modules.
