Siemens SIMATIC Box PC 820 User Manual

1-4
Box PC 820 / PC FI45 V2, Manual
A5E00051531-03
1.1.2 Maximum Dimensions of Expansion Modules
Information on Modules
The Box PC 820 / PC FI45 V2 is designed for modules according to AT/PCI
specifications. The size of the modules should not exceed the dimensions
indicated. If the given height is exceeded, this may cause contacting problems,

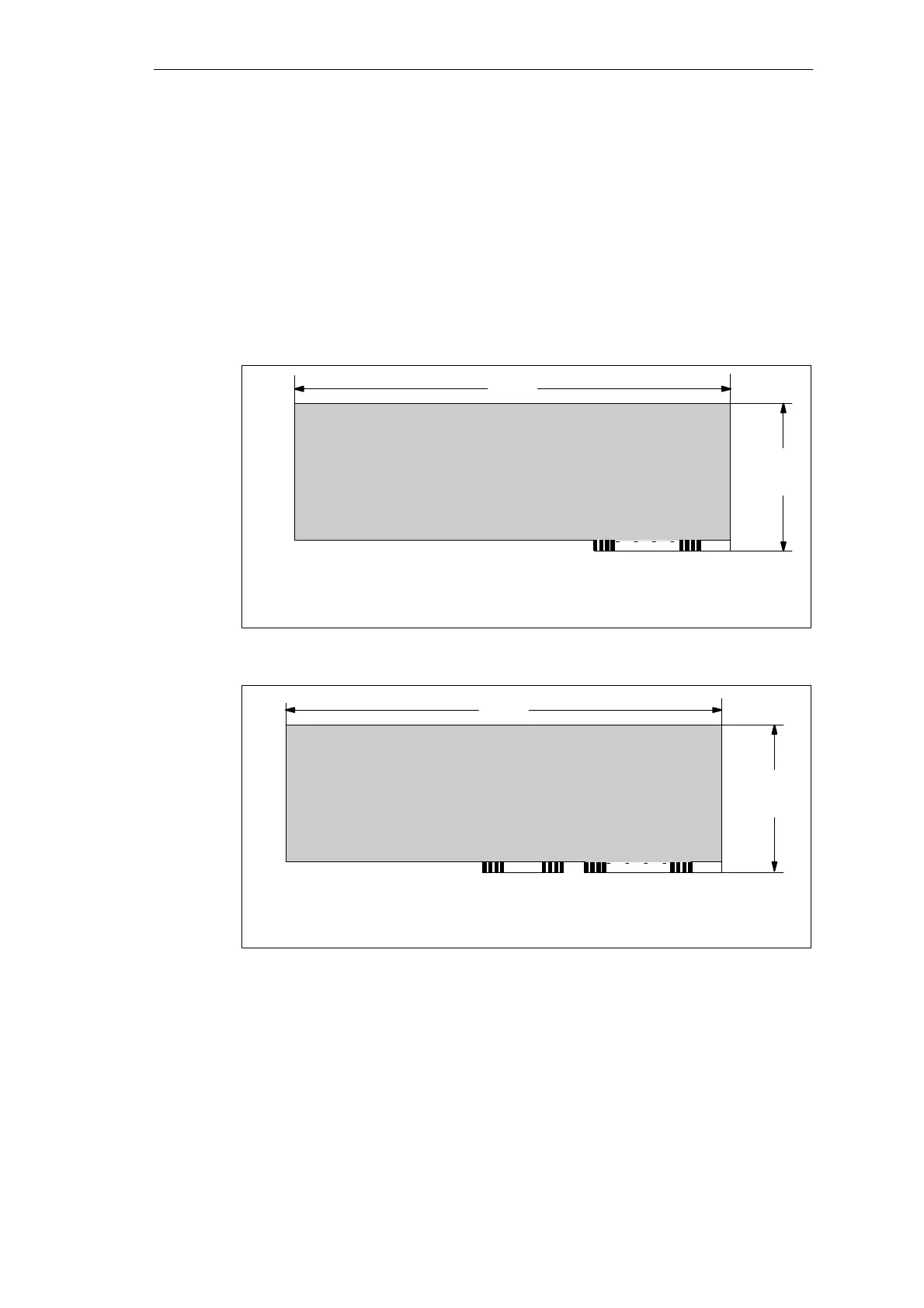

functional disorders, or difficulties with installation. The figures below illustrate two
cards with full AT/PCI overall length. Individual slots may require different card
dimensions.
340
106,7
A31 A1
All measurements in mm
(13,4)
(4,2)
(All measurements in inches)
Figure 1-3 XT Module
340,7
121,92
A31 A1C18 C1
(13,41)
(4,8)
All measurements in mm
(All measurements in inches)
Figure 1-4 AT Module
System Unit
