Circuit diagram example
4.4 TIA Portal configuration
Safety engineering with AS‑Interface in the SIMATIC ET 200SP, including typical circuit diagram
40 Function Manual, 08/2020, A5E44991382002A/RS-AB/002
The solenoid for releasing the door tumbler is controlled via a standard output of the AS-i
slave installed in the position switch (output bit 0, see "Digital I/O"; Q0.0 in this example).
The read back signal (normally closed contact) of the solenoid is the second fail-safe channel
of the AS-i slave (see Section 4.2.3 (Page 25), 1BA4 version). Since it is directly processed to a
fail-safe digital input bit (in this example l32.1, see below) with the first fail-safe channel in
the F-CM AS-i Safety ST module, the read-back signal of the solenoid is accessed via the
associated standard input bit of the AS-i slave installed in the position switch (input bit 0, see
"Digital I/O"; in this example I0.0).

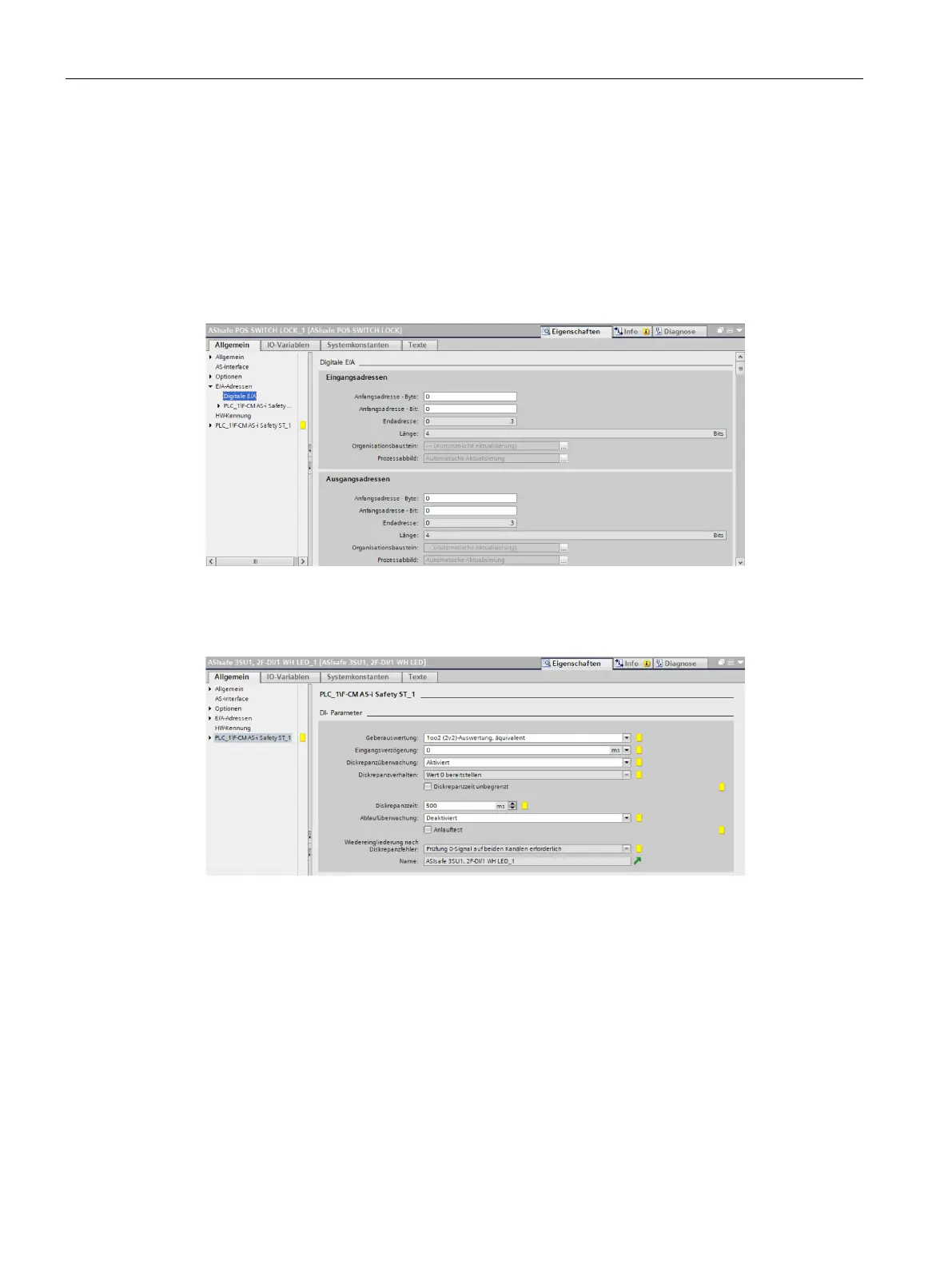

Figure 4-14 Address for controlling the solenoid
The safe monitoring of the emergency stop command device is then configured as follows.
Figure 4-15 Configuration of the emergency stop command device

Siemens simatic et200sp Specifications

General

Category	I/O Systems
Power Supply	24 V DC
Protection Rating	IP20
Number of Modules	Up to 64 modules
Mounting	DIN Rail
Communication Protocols	PROFINET, PROFIBUS
Storage Temperature	-40 °C to +70 °C
Digital Inputs	Yes (depending on module)
Digital Outputs	Yes (depending on module)
Analog Inputs	Yes (depending on module)
Analog Outputs	Yes (depending on module)
Modularity	Modular
Relative Humidity	5 to 95% (non-condensing)
Weight	Varies by configuration
System Type	Distributed I/O
