1.2 Structure of the devices
SIMATIC IPC377G
12 Operating Instructions, 07/2022, A5E51366314-AB

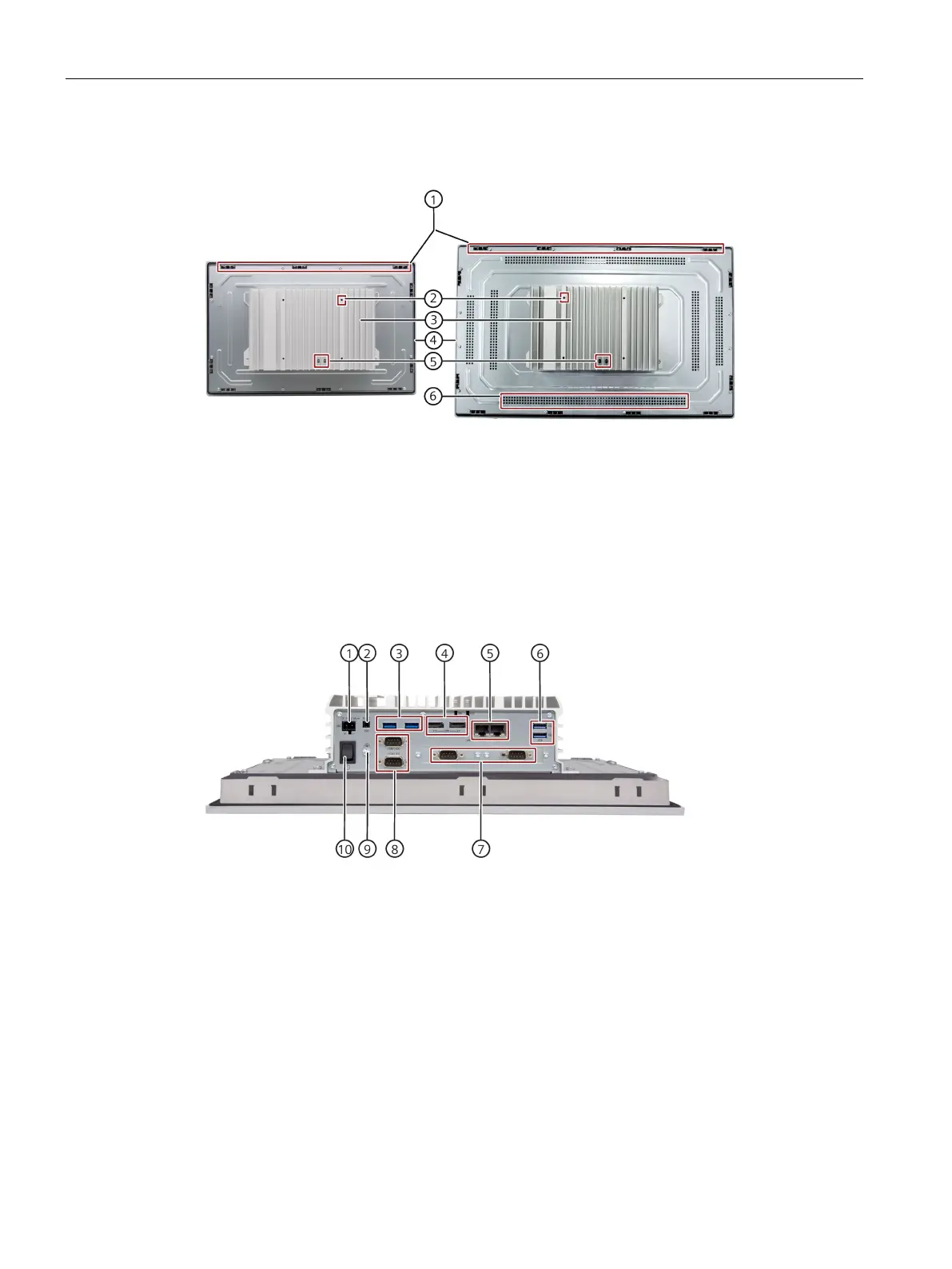

Rear view 15" and 22"
Rear view of 15" device is on the left, and rear view of 22" device is on the right.
①
Recesses for mounting clips
②
Recess holes for VESA mounting
③
Cooling fin
④
Mounting seal
⑤
LED displays
⑥
Thermal holes
1.2.2 Interfaces and operator controls
①
Power supply
Connection for a 24 V DC power supply
②
Audio (optional)
Connection for analog audio source and speaker
③
USB 3.1 port (X60/X61)
2 × USB 3.1 port, high current
④
DPP (X70/X71)
2 × DisplayPort connection
⑤
LAN (X1P1/X2P1)
2 × RJ45 Ethernet connections for 10/100/1000 Mbps
⑥
USB 3.1 port (X62/X63)
2 × USB 3.1 port, high current
⑦
COM (Optional)
2 × Serial interface, 9-pin RS232 D-sub connector
⑧
COM (X30/X31)
2 × Serial interface, 9-pin RS232/RS422/RS485 D-sub connector
⑨
Function earth
Connection for function earth
⑩
On/Off switch
Switch on; Switch off
