Technical specifications

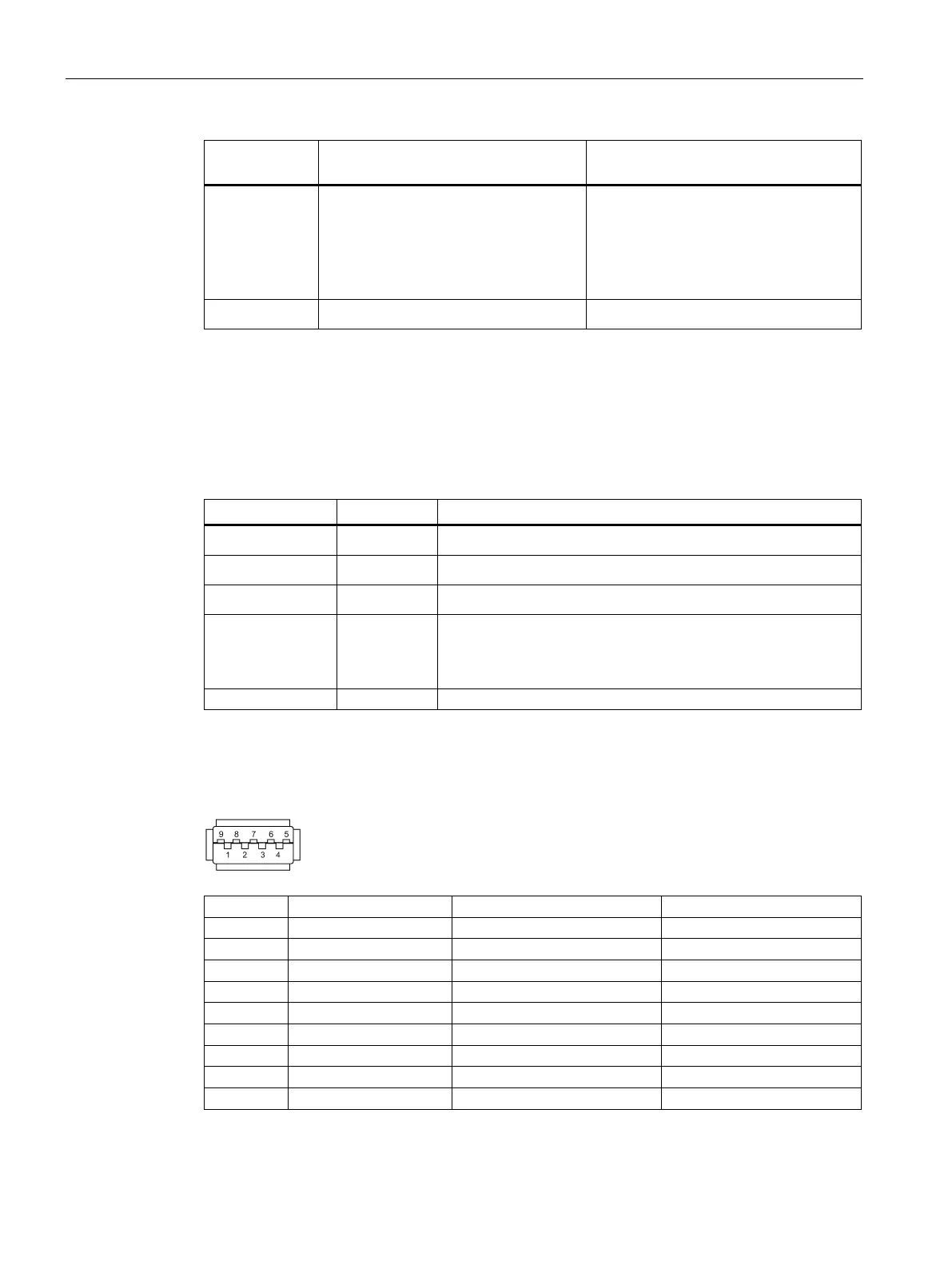

8.5 Hardware descriptions
SIMATIC IPC377G
78 Operating Instructions, 07/2022, A5E51366314-AB
Component /
port
Description Parameters
Memory
DDR4 SDRAM
Memory expansion up to 16 GB with the
following memory modules:
• 4G DDR4 SDRAM
• 8G DDR4 SDRAM
• 16G DDR4 SDRAM
Graphics Integrated graphics
• Intel® UHD Graphics
8.5.2 External interfaces
8.5.2.1 Overview of external interfaces
Interface
Position
Description
USB
External
• 4 × USB 3.1 Gen2 (up to 10Gb/s)
Ethernet port
External
• 2 × RJ45 Ethernet 10/100/1000 Mbps
DisplayPort
External
• 2 × DP++
COM1/2/3/4 External 9-pin D-sub, either:
• COM1/2: 2 × RS232/RS422/RS485
1
(switchable)
• COM3/4: 2 × RS232 (optional)
Audio (optional)
External
Connection for analog audio source and speaker
1
In BIOS Setup, you can configure support for RS232/RS422/RS485 for COM1 and COM2 ports.
8.5.2.2 USB 3.1 port
Pin
Short name
Meaning
Input / output
1
VBUS
+ 5 V (Power switch)
Power out
2
D-
Data channel USB2
Input / output
3
D+
Data channel USB2
Input / output
4
GND
Ground
–
5
RX-
Data channel USB3
Input
6
RX+
Data channel USB3
Input
7
GND
Ground
–
8
TX-
Data channel USB3
Output
9
TX+
Data channel USB3
Output
