Expanding and assigning parameters to the device
6.3 Installing and removing M.2 NVMe/SATA SSD
SIMATIC IPC377G
Operating Instructions, 07/2022, A5E51366314-AB
47

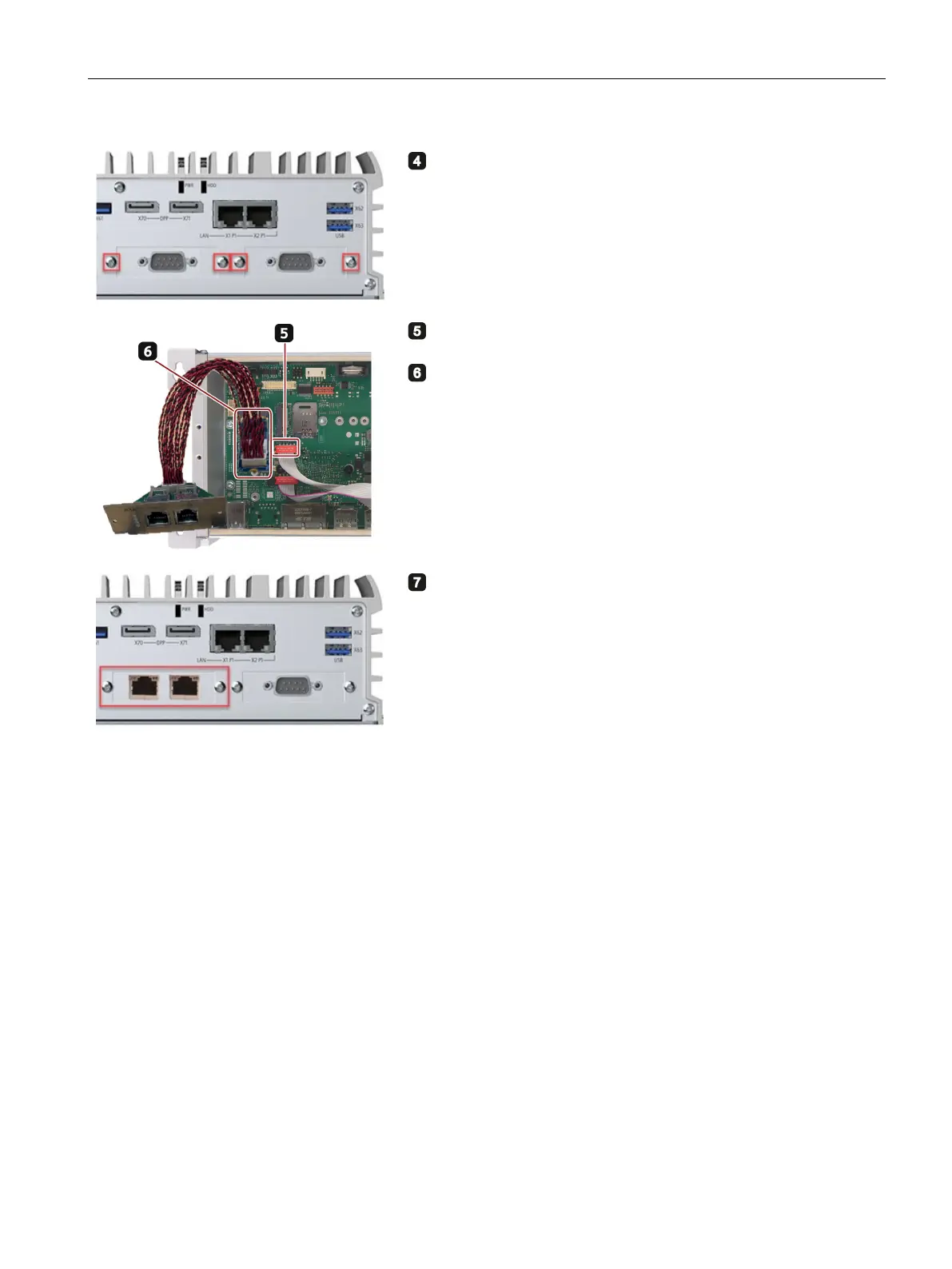

Unscrew either one set of the marked screws for fixing the
COM interface.
Remove the COM interface and its jumpers on the
motherboard.
Follow above steps to install the M.2 Module with an
additional interface-card on the X100 or X101 interfaces slot.
Note: The cable length of the M.2 Module should not be
shorter than 100 mm and no longer than 200 mm.
Secure the additional interface-card in the position of the
COM interface with screws.
Procedure - Removing the M.2 Module
Follow above steps in reverse order to remove the M.2 Module.
6.3 Installing and removing M.2 NVMe/SATA SSD
Requirements
• The device is disconnected from the power supply.
• The device is opened.
• A M.2 NVMe/SATA SSD that is approved for industrial applications.
• A T10 screwdriver
