Expanding and assigning parameters to the device
6.2 Installing and removing M.2 Module
SIMATIC IPC377G
46 Operating Instructions, 07/2022, A5E51366314-AB

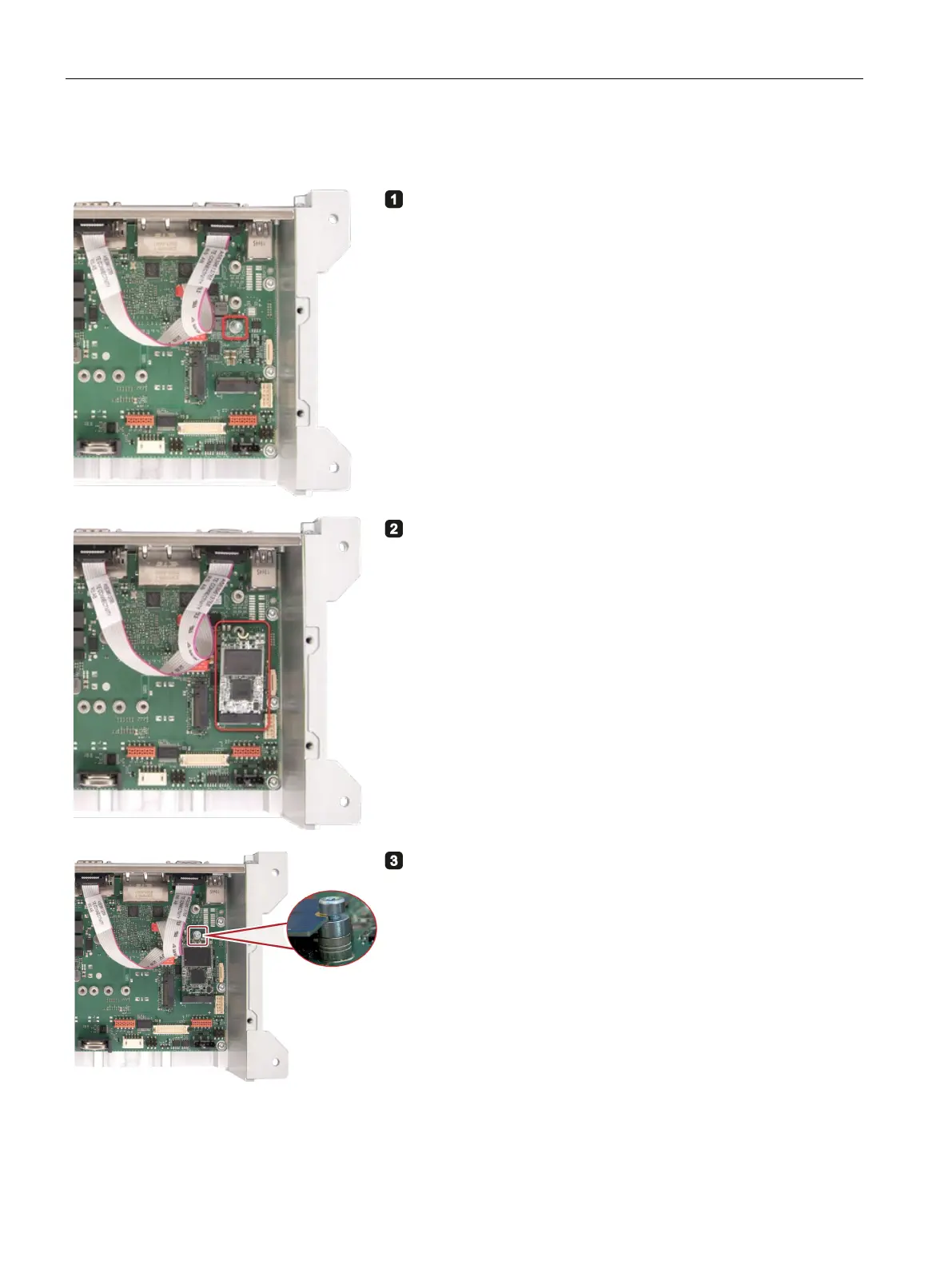

Procedure - Installing the M.2 Module
Unscrew the marked screw.
Align the golden finger on the M.2 Module on your
motherboard, and then press firmly until the M.2 Module is
completely seated on the slot.
Secure the M.2 Module with the screw which is unscrewed in
the first step.
Note: Make sure the M.2 Module board is located between
head and spacer of assembly screw.
If the M.2 Module has a cable with an additional interface-card connected to the housing opening, you
need to do the following procedures:
