Siemens SIMATIC IPC377G User Manual

Technical specifications
8.5 Hardware descriptions
SIMATIC IPC377G
80 Operating Instructions, 07/2022, A5E51366314-AB

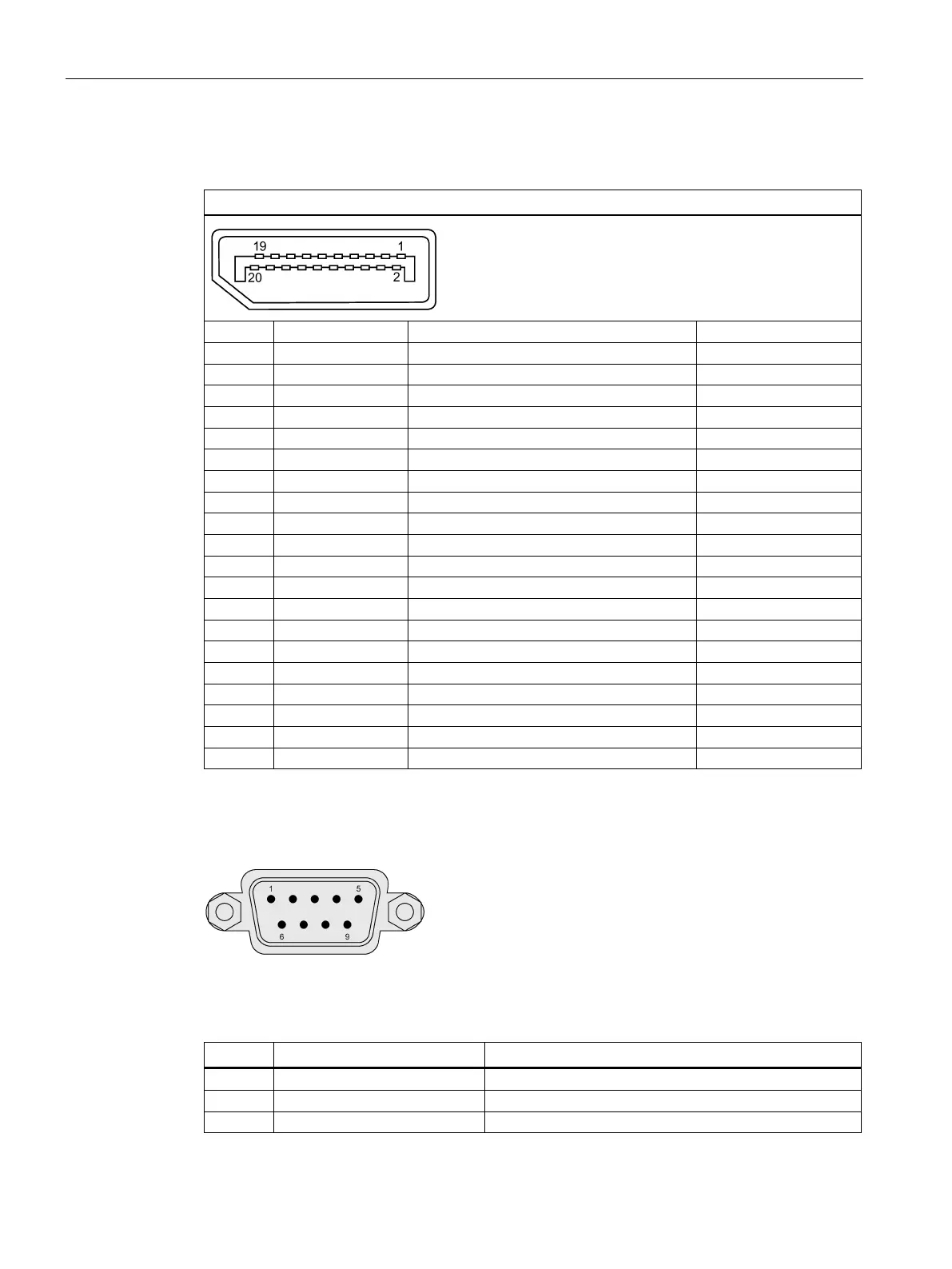

8.5.2.5 DisplayPort
DisplayPort interface
Pin no.
Abbreviation
Meaning
Input/output
1
ML_Lane 0+
DP data 0+
Output
2
GND
Ground
-
3
ML_Lane 0-
DP data 0-
Output
4
ML_Lane 1+
DP data 1+
Output
5
GND
Ground
-
6
ML_Lane 1-
DP data 1-
Output
7
ML_Lane 2+
DP data 2+
Output
8
GND
Ground
-
9
ML_Lane 2-
DP data 2-
Output
10
ML_Lane 3+
DP data 3+
Output
11
GND
Ground
-
12
ML_Lane 3-
DP data 3-
Output
13
CONFIG 1
CONFIG 1
-
14
CONFIG 2
CONFIG 2
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19
GND
Ground
-
20
DP_PWR
+3.3 V (Power switch)
power out
8.5.2.6 Serial interface
RS232
RS422
RS485
Pin assignment RS232
Pin
Short description
Meaning
1
DCD
Data carrier detect (I)
2
RxD
Received data (I)
3
TxD
Transmitted data (O)
