Technical specifications
8.5 Hardware descriptions
SIMATIC IPC377G
82 Operating Instructions, 07/2022, A5E51366314-AB
Interface
Position
Description
USB dongle
Internal
• 1 × USB 2.0 type A connector
SIM card slot
Internal
• 1 × SIM card slot
LVDS
Internal
• 1 × LVDS connector
Backlight
Internal
• 1 × Backlight connector

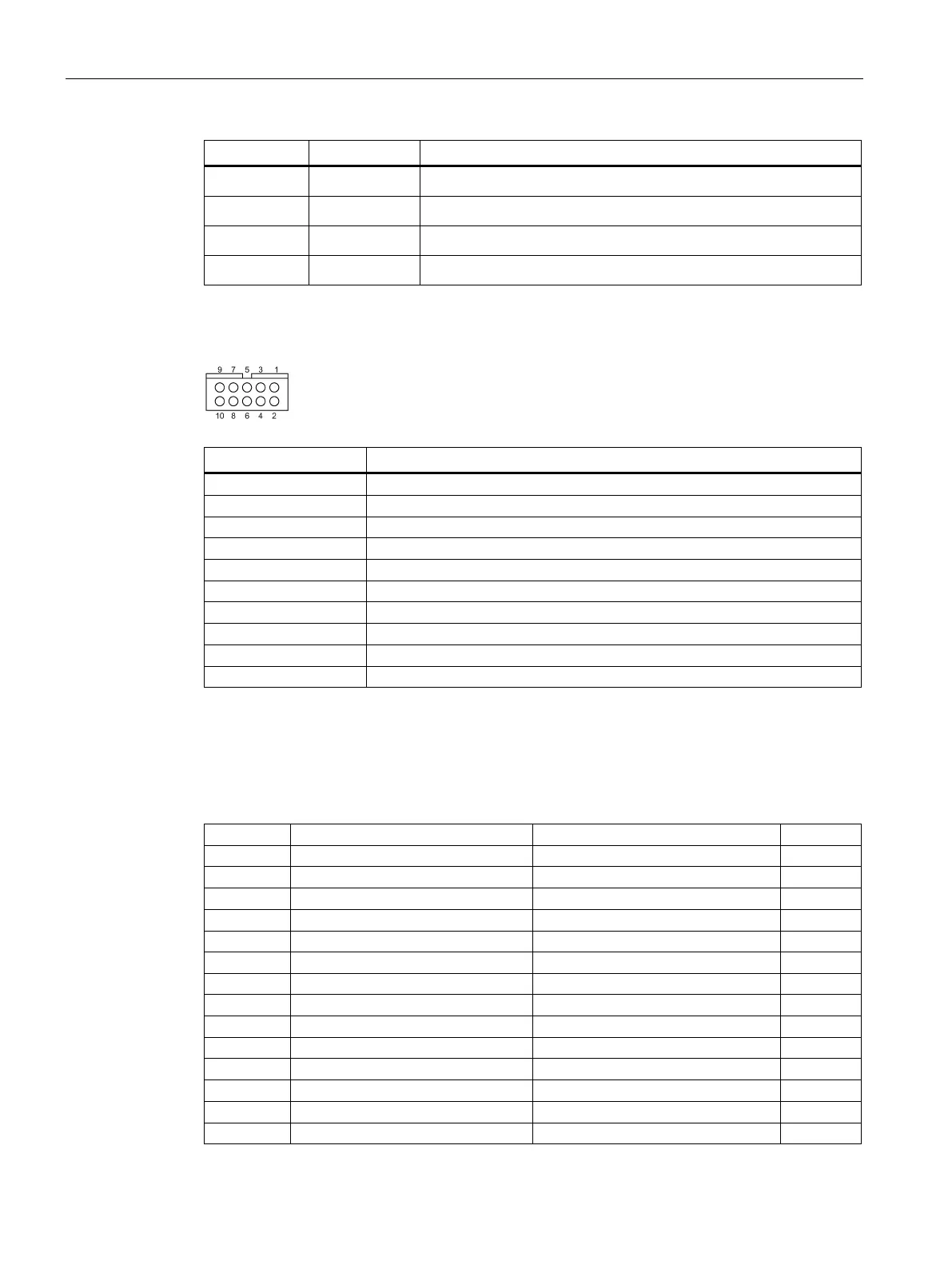

8.5.3.2 USB 2.0 pin header
Pin
Signal
1
VBUS_USB1
2
VBUS_USB2
3
USB1_D-
4
USB2_D-
5
USB1_D+
6
USB2_D+
7
GND
8
GND
9
GND
10
GND
8.5.3.3 M.2 interface
M.2 Module (X100)
Pin no.
Signal
Signal
Pin no.
NC
75
74
3.3V
GND
73
72
3.3V
GND
71
70
3.3V
NC
69
68
SUSCLK
RESET#
67
66
SIM DETECT
ANTCTL3
65
64
COEX_RXD(I)
ANTCTL2
63
62
COEX_TXD(O)
ANTCTL1
61
60
COEX3(I/O)
ANTCTL0
59
58
NC
GND
57
56
NC
REFCLKp
55
54
PEWAKE#
REFCLKn
53
52
CLKREQ#
GND
51
50
PERST#
PETp0
49
