Siemens SIMATIC IPC377G

Technical specifications
8.5 Hardware descriptions
SIMATIC IPC377G
Operating Instructions, 07/2022, A5E51366314-AB
79

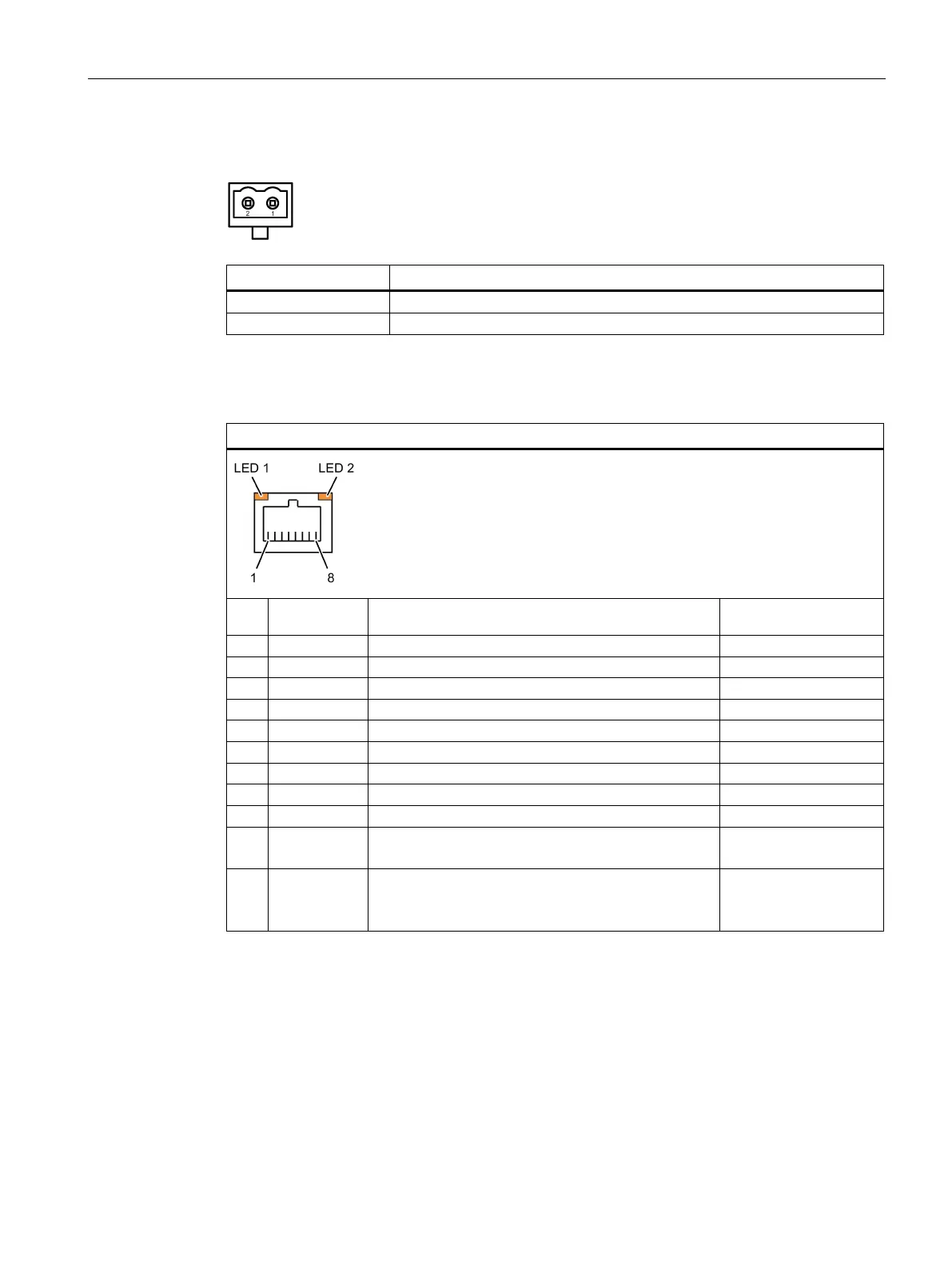

8.5.2.3 DC in connector
Pin
Short description
1
+24V
2
GND
8.5.2.4 Ethernet port
Ethernet RJ45 interface
Pin
no.
Short
description
Meaning
Input / output
1
BI_DA+
Bi-directional data A+
Input/output
2
BI_DA-
Bi-directional data A-
Input/output
3
BI_DB+
Bi-directional data B+
Input/output
4
BI_DC+
Bi-directional data C+
Input/output
5
BI_DC-
Bi-directional data C-
Input/output
6
BI_DB-
Bi-directional data B-
Input/output
7
BI_DD+
Bi-directional data D+
Input/output
8
BI_DD-
Bi-directional data D-
Input/output
S
Shield
–
LED 1 Orange light:1000 Mbps
Off: Port is not active
–
LED 2 Orange light: Port is active but without data activity
Orange blink: Port is active and there is data activity
Off: Port is not active
–
The Ethernet interface supports MDXI (auto crossover) for all transmission rates.
