Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC377G
28 Operating Instructions, 07/2022, A5E51366314-AB
Requirements
• All packaging components and protective foils should be removed from the device.
• To install the device, you need the mounting clips from the accessories kit.
• A PH2 screwdriver

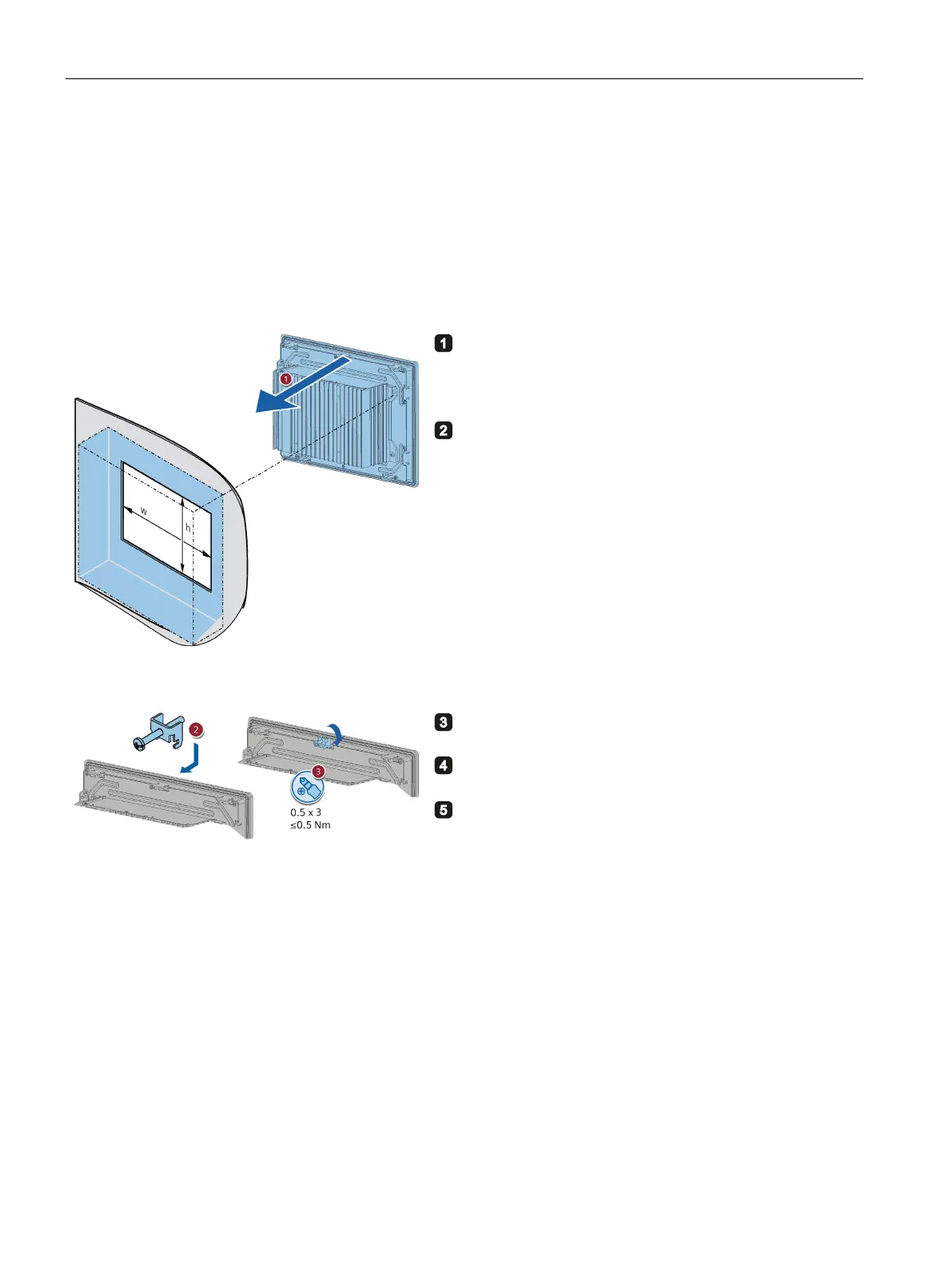

Procedure for mounting
Insert the panel device into the mounting cutout from the front.
Insert a mounting clip into the cutout provided with the device.
Tighten the threaded pin to secure the mounting clip. The
maximum tightening torque for threaded pins is 0.5 Nm.
Repeat step 2 and 3 to secure all mounting clips.
Check the fitness of the mounting seal.
Result
The device is mounted and the relevant degree of protection is ensured at the front.
