8.5 Hardware descriptions
SIMATIC IPC677D
Operating Instructions, 09/2014, A5E32995420-AC
129
8.5
Hardware descriptions
8.5.1
Motherboard
8.5.1.1
Structure and functions of the motherboard

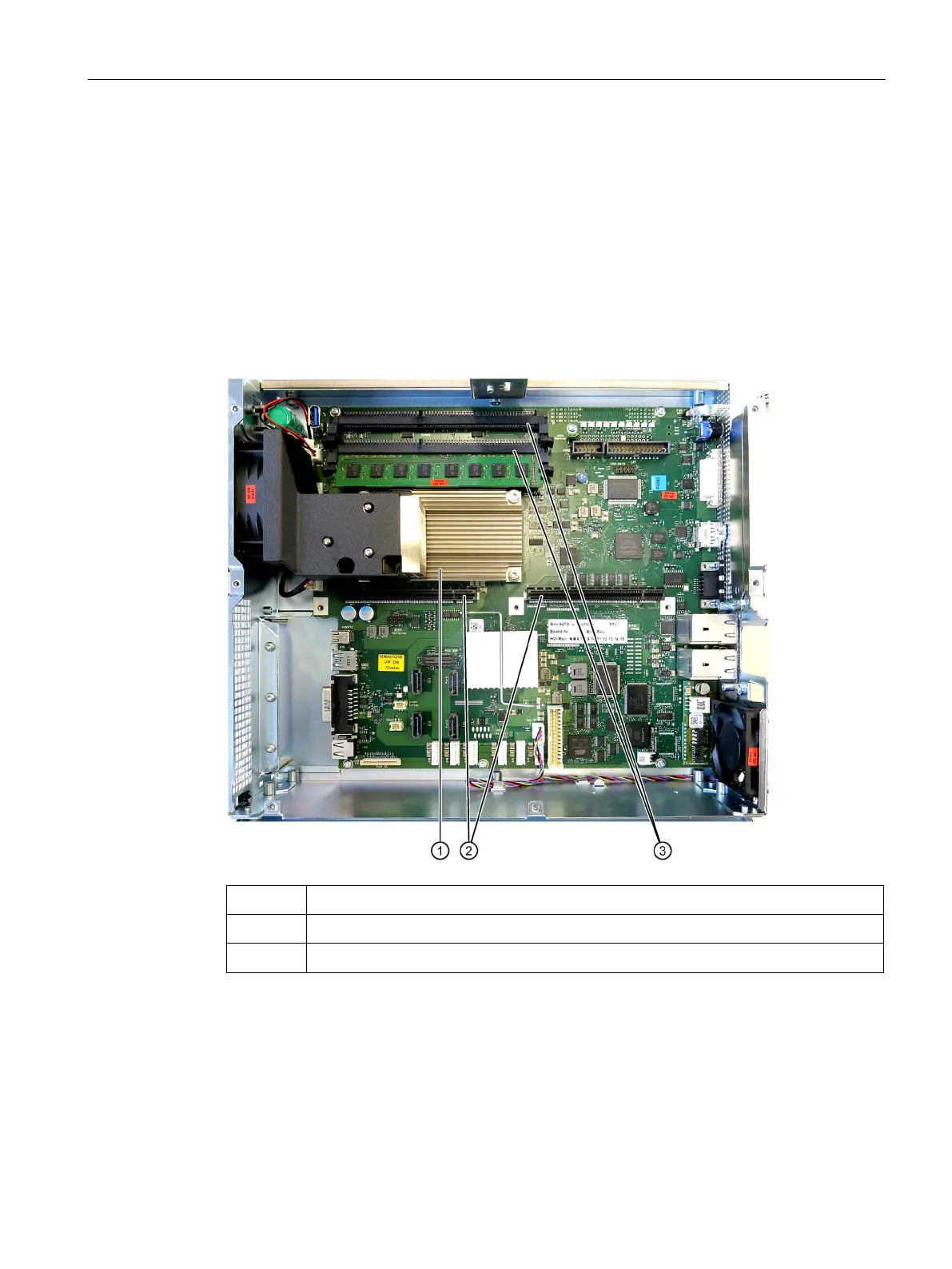

The essential components of the motherboard are the processor and the chip set, two slots
for memory modules, internal and external interfaces and the Flash BIOS.
①
Processor heat sink
②
Slot for the bus board
③
Two memory module slots
