Siemens SIMATIC IPC677D - Connecting the PROFINET Strain Relief

Mounting and connecting the device
3.3 Connecting the device
SIMATIC IPC677D
Operating Instructions, 09/2014, A5E32995420-AC
47
3.3.9
Connecting the PROFINET strain relief
The PROFINET strain relief supplied in the product package is used to prevent accidental
removal of the Ethernet cable and Industrial Ethernet FastConnect connector from the
device. You need two cable ties to use the strain relief.
To fix the PROFINET strain relief, you will need a TORX T10 screwdriver.
Procedure

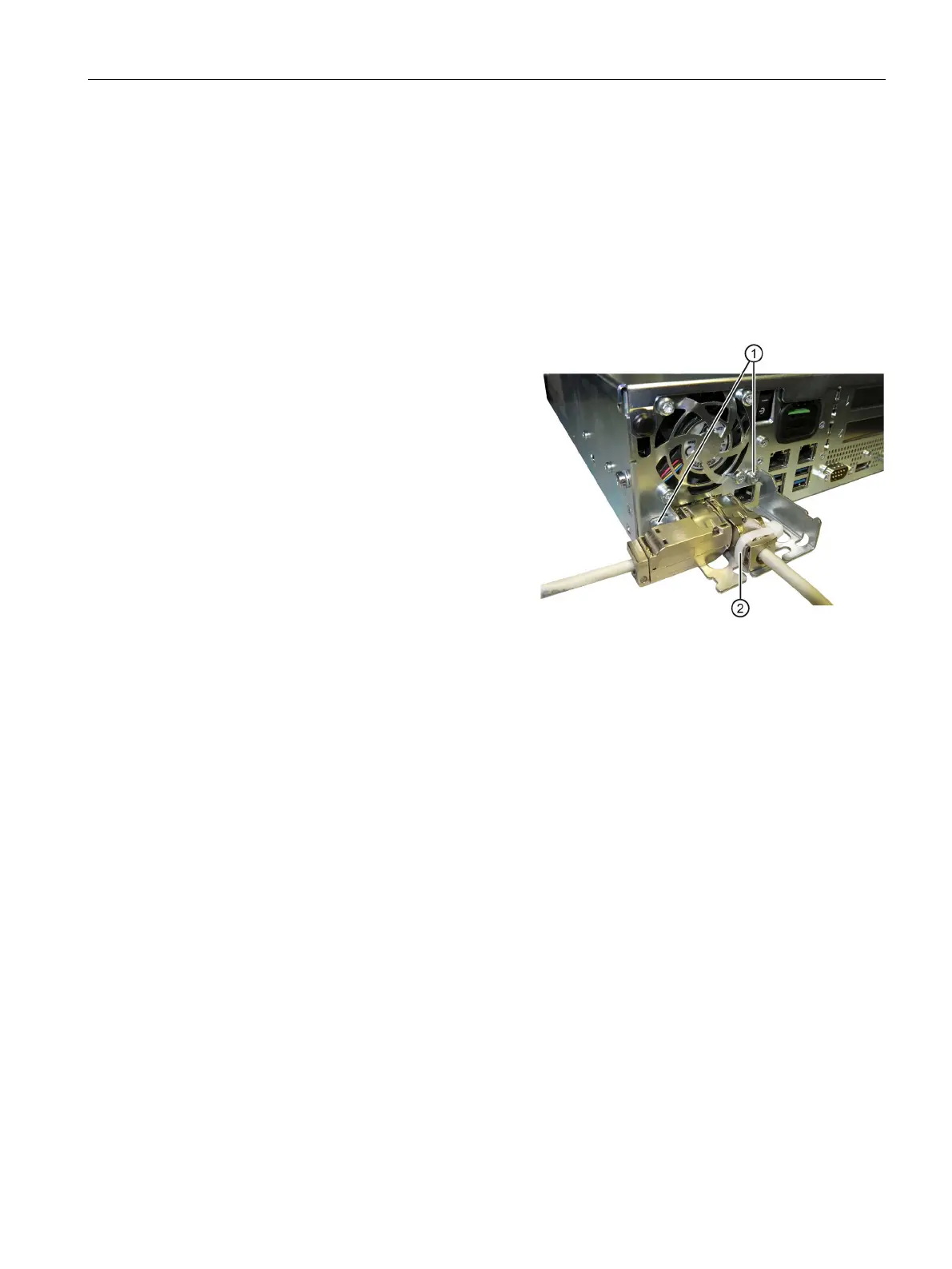

1.
Secure the PROFINET strain relief with
two oval
-head screws M3 ① to the de-
vice housing.
2.
Connect the PROFINET cables with the
device and secure the PROFINET co
n-
nector with straight cable outlet to the
strain relief with cable ties
②.
