Expanding the device and assigning device parameters
6.3 Expansion cards
SIMATIC IPC677D
72 Operating Instructions, 09/2014, A5E32995420-AC
6.3
Expansion cards
6.3.1
Notes on the expansion cards
The device is designed for use with PCI expansion cards conforming to PCI specification
V 2.2:
● 5 V 32 Bit PCI
● Universal 5 V & 3.3 V 32 Bit PCI
The following PCIe specifications apply to the use of PCIe cards:
● x16: V3.0
● x4: V2.0
Equipment options:
● 2 × PCI
● 1 × PCI, 1 × PCIe x16
● 1 × PCIe x4 Slot 1, 1 × PCIe x16 Slot 2
6.3.2
Removing and installing expansion cards
Requirement
● The device is opened.

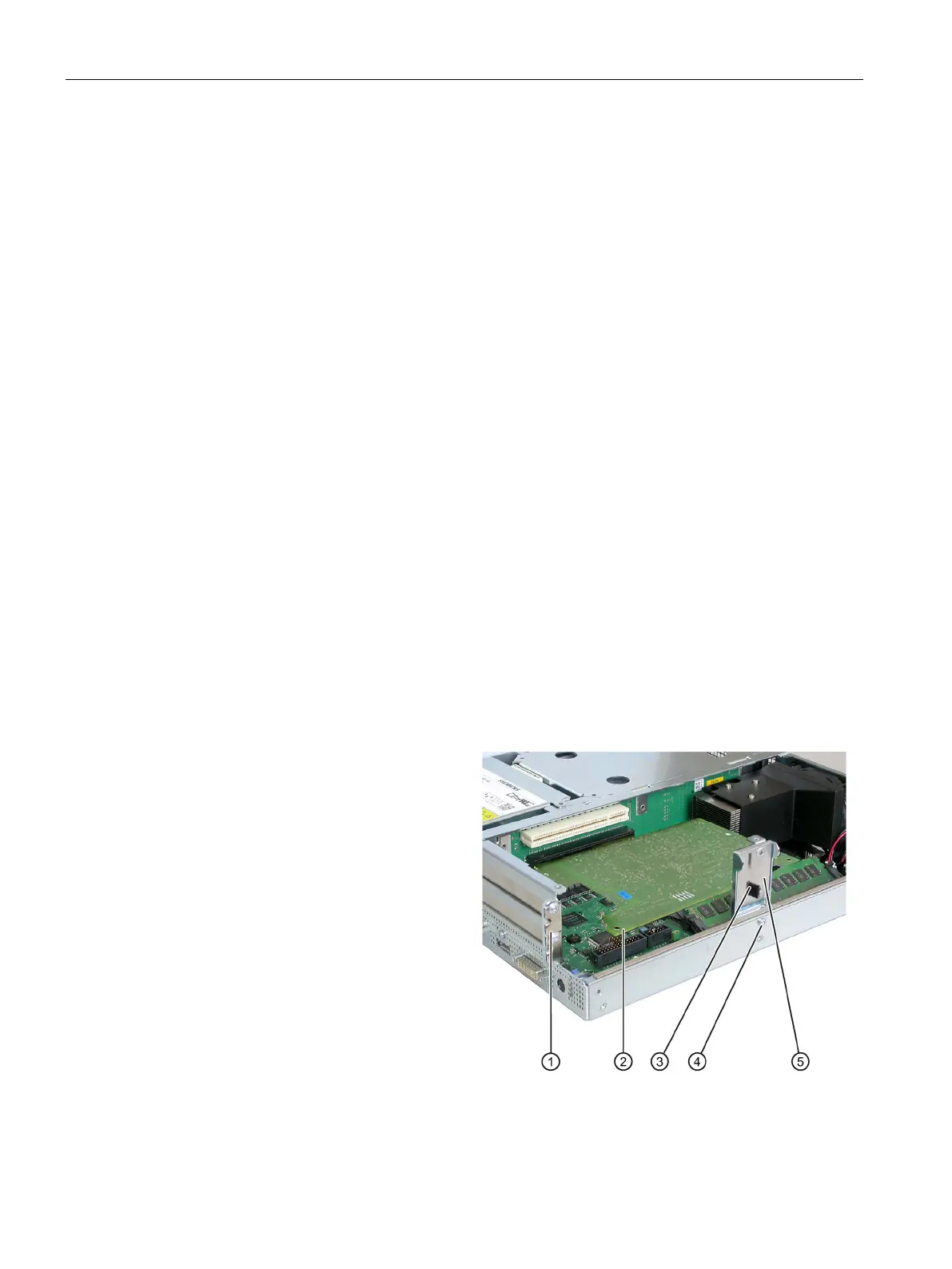

Procedure
1.
Loosen the fastening screw
④
and remove the card retainer ⑤.
2.
Remove the slot cover
① from
the intended slot.
3.
Insert the expansion card
④ into
the intended slot.
4.
Mount the card bracket and insert
the slider ③
.
5.
Screw in the slot cover ①
of the
expansion card.
6.
Insert the slider.
