Removing and installing a DVD drive
Requirement
● The device is opened.
Procedure
Removing external drive
1.
Remove the internal HDD/SSD drive bay module.
2.
Loosen the following connectors of
the optical
drive from the mother-
board:
•

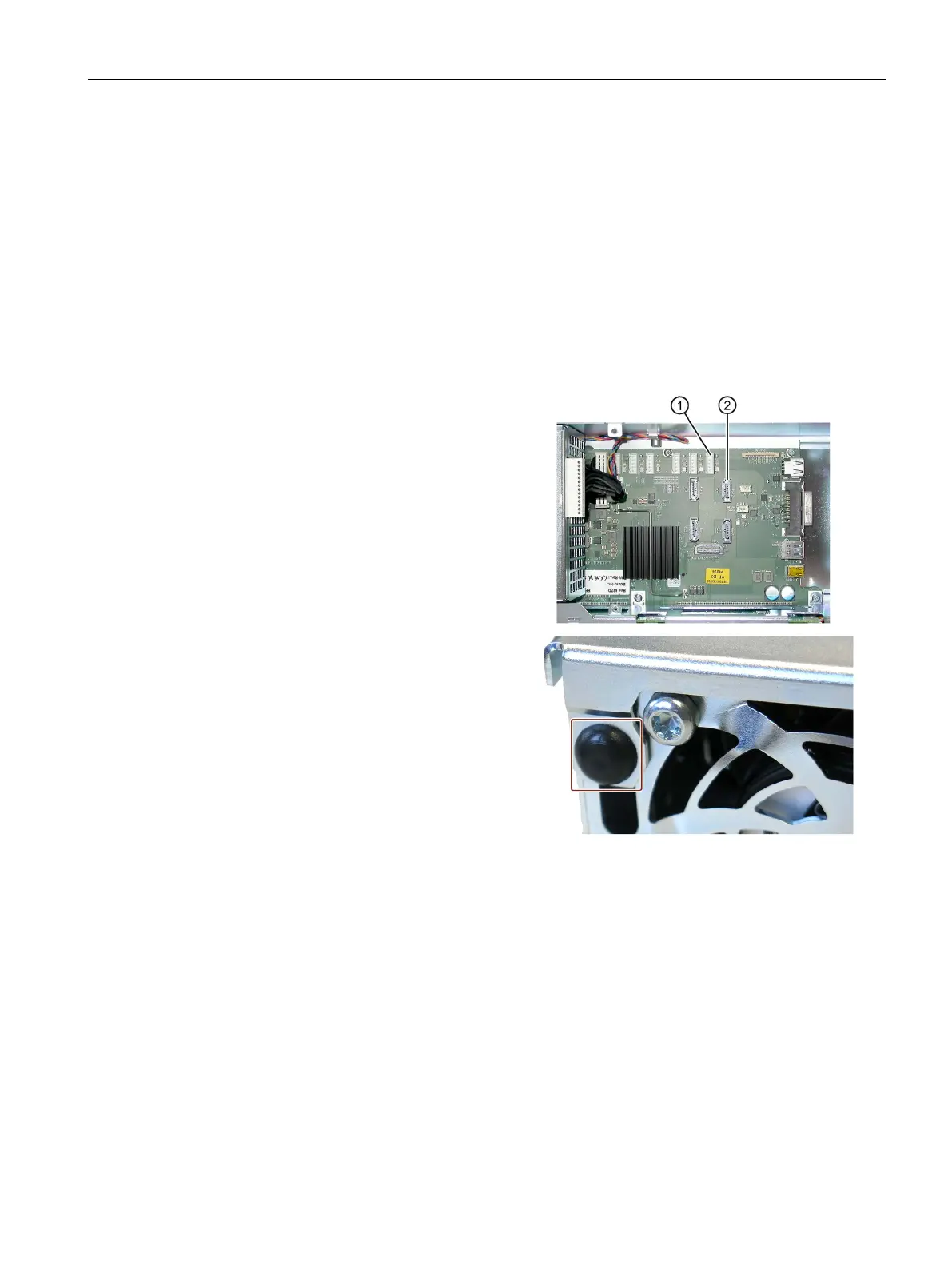

Power supply connector ①.
•
SATA connector ②
3.
Loosen the designated rivets on the
left and right on the cover with a
screwdriver and put the cover down
with the optical drive facing dow
n-
wards.
