7.7 Removing and installing hardware
SIMATIC IPC677D
Operating Instructions, 09/2014, A5E32995420-AC
95
7.7.4
Removing and installing the power supply
Requirement
● The device is opened.
Procedure

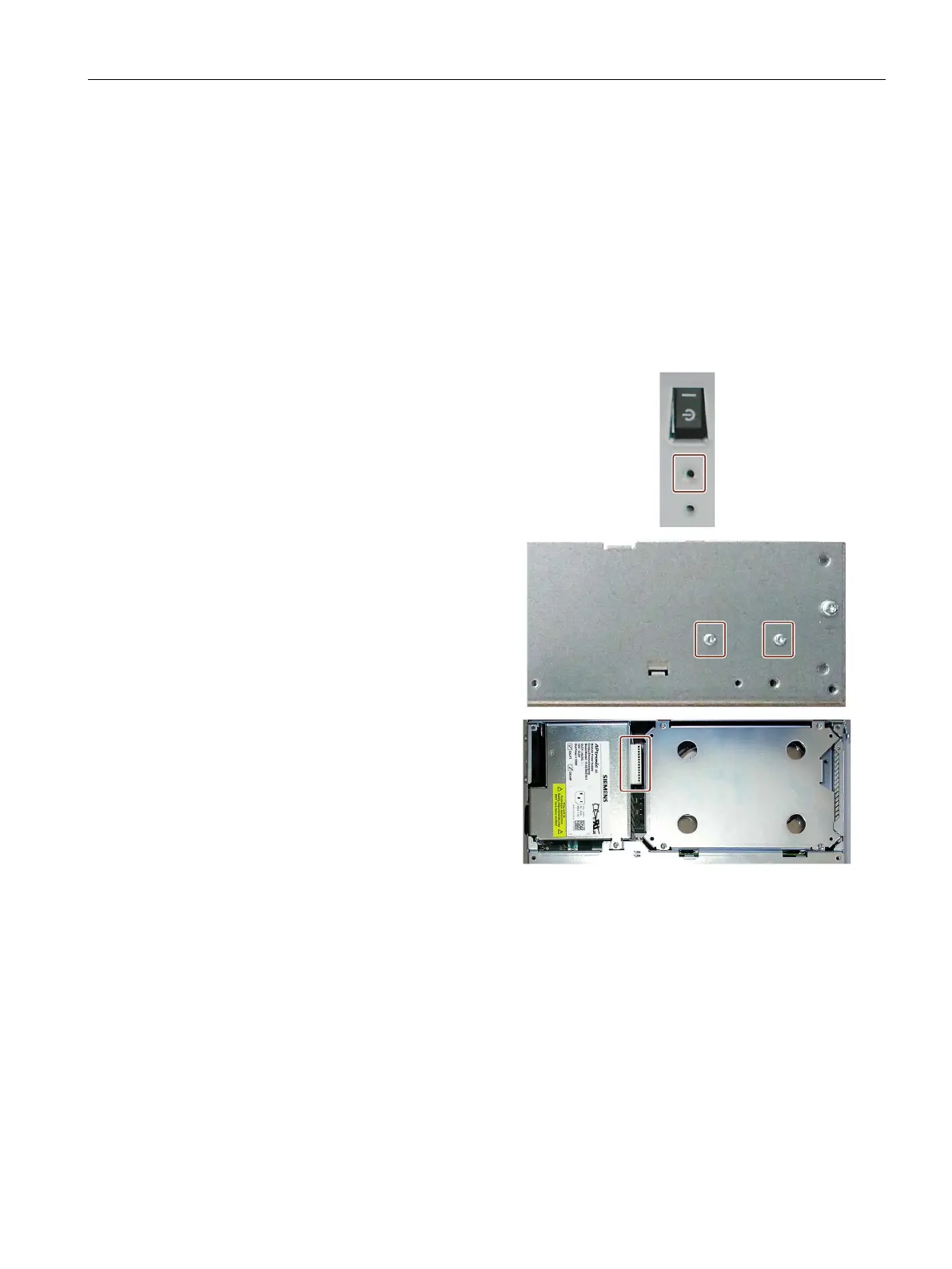

Removal
1.
Remove the screw at the ind
i-
cated location below the on/off
switch on the back of the device.
2.
Remove the identified screws
(Torx
T10) on the side.
3.
Lift up
the power supply slightly
and remove the identified power
supply connector from the power
supply unit.
4.
Lift out the power supply unit completely.
Installation
Proceed in reverse order.
