Overview
1.2 Design of the device
SIMATIC IPC677D
Operating Instructions, 09/2014, A5E32995420-AC
15
Device with PROFINET interface

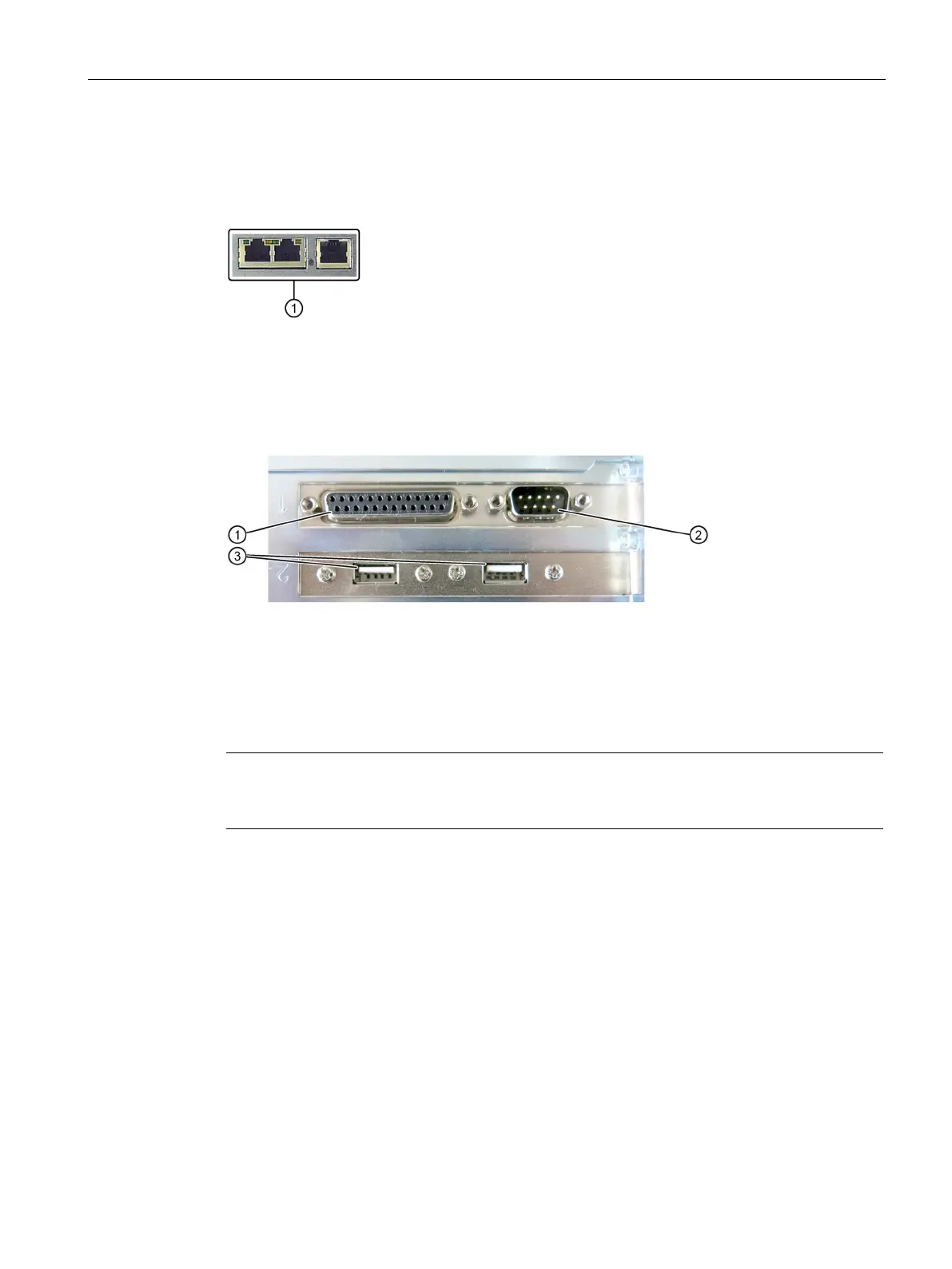

The following PROFINET interface is located at the position of the PROFIBUS interface ①
in the figure above:
CP 1616 onboard interface, three RJ45 sockets for devices with PROFINET, IRT capable
Device with COM2/LPT and USB expansion (optional)
The following expansion cards are located at the position of the cover ⑨ in the figure above:
Devices with resistive single-touch screen
sealed cover for the front USB port, the degree of protection IP65 for the
front of the device is no longer guaranteed.
