Mounting and connecting the device
3.1 Preparing for mounting
SIMATIC IPC677D
30 Operating Instructions, 09/2014, A5E32995420-AC
Requirements for complying with degree of protection
The degree of protection of the HMI device can only be guaranteed if the following
requirements are met:
● Material thickness at the mounting cutout for IP65 degree of protection, or for
enclosure type 4X/type 12 (indoor use only): 2 mm to 6 mm
● Permitted deviation from plane at the mounting cutout: ≤ 0.5 mm
This condition must be fulfilled for the mounted HMI device.
● Permissible surface roughness in the area of the seal: ≤ 120 µm (R
z
120)

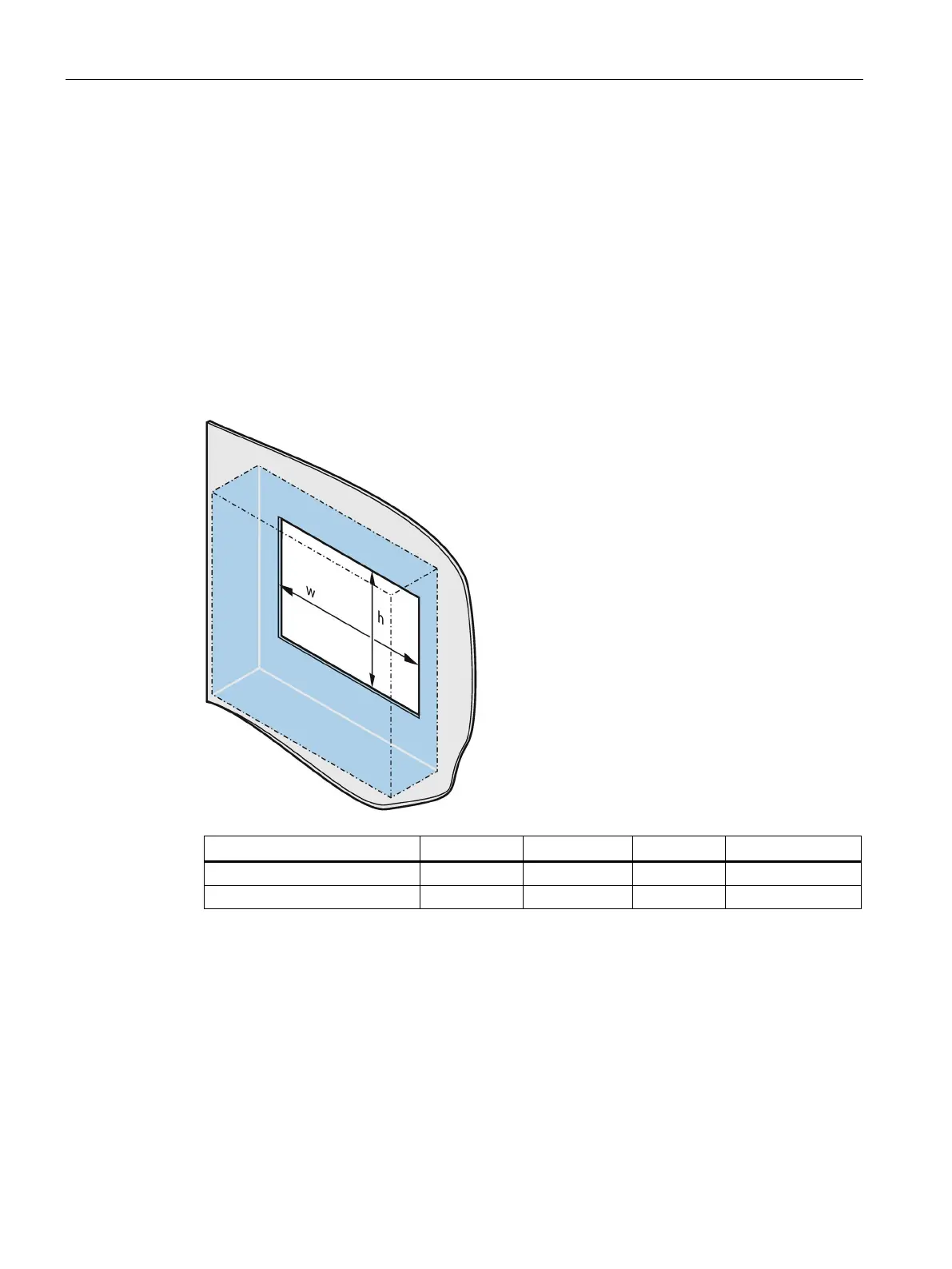

Dimensions of the mounting cutout
Mounting cutout
15"
2
15"
3
19"
22"
Width w
1
399 mm
396 mm
465 mm
542 mm
Height h
1
280 mm
291 mm
319 mm
362 mm
1
Width and height must be interchanged for mounting in vertical format.
2
Device with capacitive multi-touch screen
3
Device with resistive single-touch screen
Installation depth
Information on the overall depth is available in the section "Dimension drawings (Page 115)".
