Maintaining and servicing your device
7.7 Removing and installing hardware
SIMATIC IPC677D
98 Operating Instructions, 09/2014, A5E32995420-AC

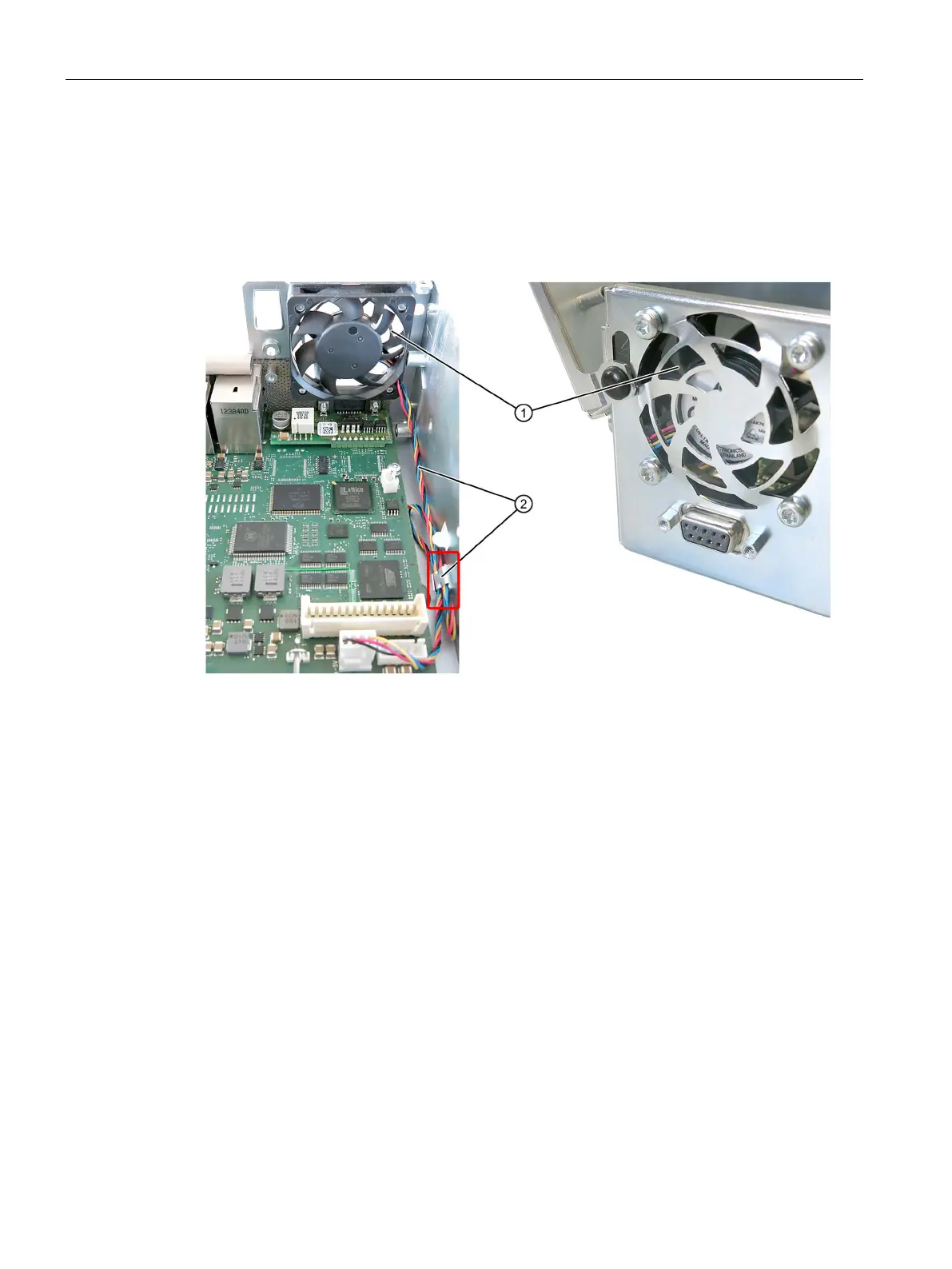

The figure shows the correct mounting position.
● Direction of flow: Make sure that the blades
① of the power supply fan are on the outside
of the housing.
● Run the power supply cable
② along the housing edge and fasten any excess cable as
loop as shown in the illustration.
