Siemens SIMATIC KTP400 Basic User Manual

Mounting and connecting
3.1 Preparations
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
24 Operating Instructions, 08/2008, A5E01075587-01

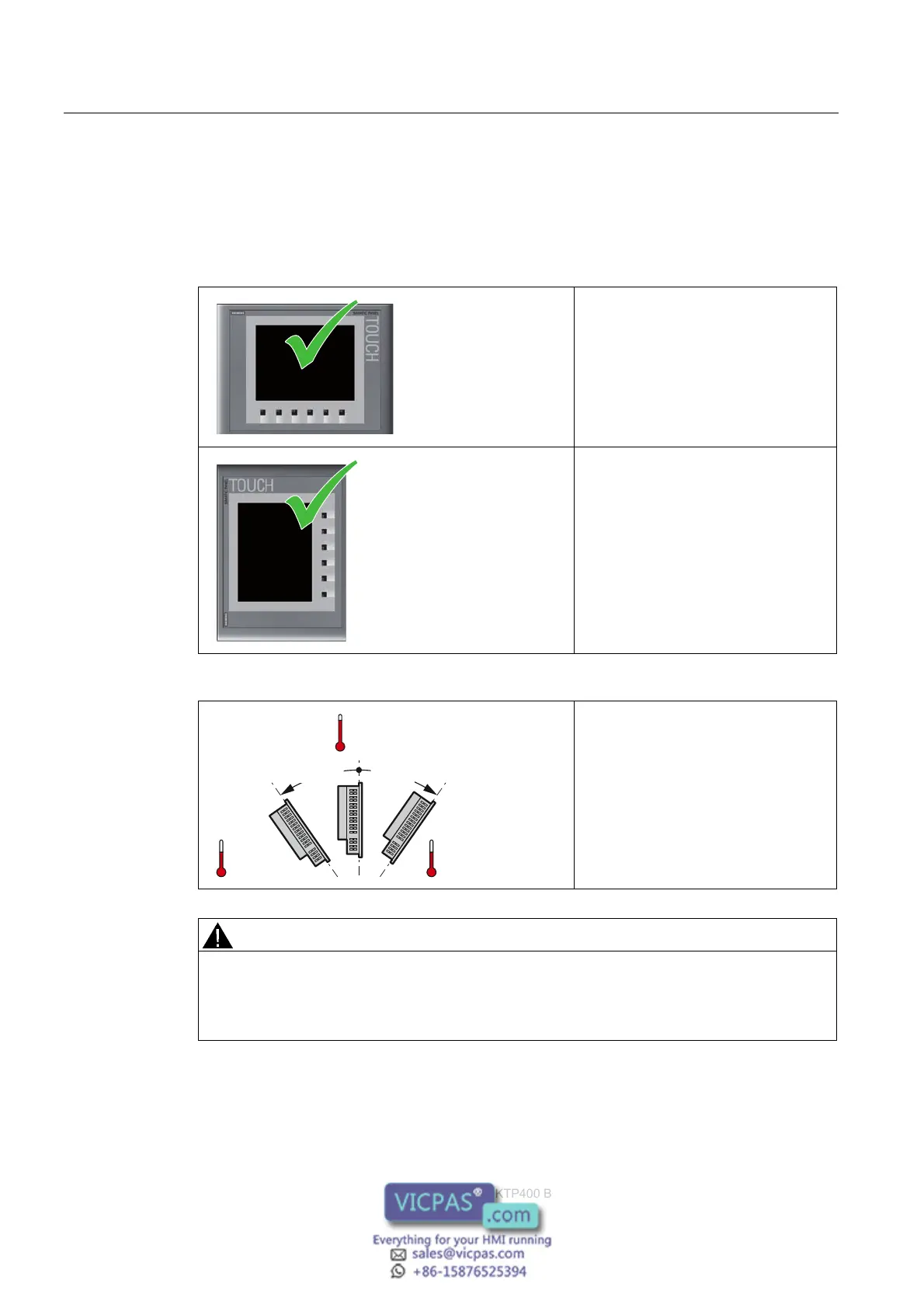

3.1.3 Selecting a mounting position
Select one of the approved mounting positions for your HMI device. The approved mounting
positions are described in the following sections.
Horizontal mounting positions
All Basic HMI devices are suitable for
horizontal mounting positions.
The following Basic HMI devices are
also suitable for vertical mounting
positions:
• KTP400 Basic
• KTP600 Basic
Vertical mounting positions
40 °C
0 °C
40 °C
0 °C
50 °C
0 °C
rದr rದr
The Basic HMI devices are self-
ventilating. Vertical and angled
mounting is permitted in:
• Mounting cabinets
• Control cabinets
• Switchboards
• Consoles
CAUTION
Exceeding the ambient temperature
Forced ventilation is required if the maximum permitted ambient temperature for operating
the HMI device is exceeded. The HMI device can otherwise be damaged and its approvals
and warranty will be void.
See also
Conditions of use (Page 83)

Siemens SIMATIC KTP400 Basic Specifications

General

Display Type	TFT LCD
Display Resolution	480 x 272 pixels
Supply Voltage	24 V DC
Display Size	4.3 inches
Touchscreen	Yes
Interface	PROFINET
Protection Class	IP65
Operating Temperature	0 to 50 °C
Storage Temperature	-20°C to 60°C
Communication Interface	PROFINET
Mounting	Panel Mount
