4.4 Entering data on the KTP600, KTP1000, TP1500 Basic

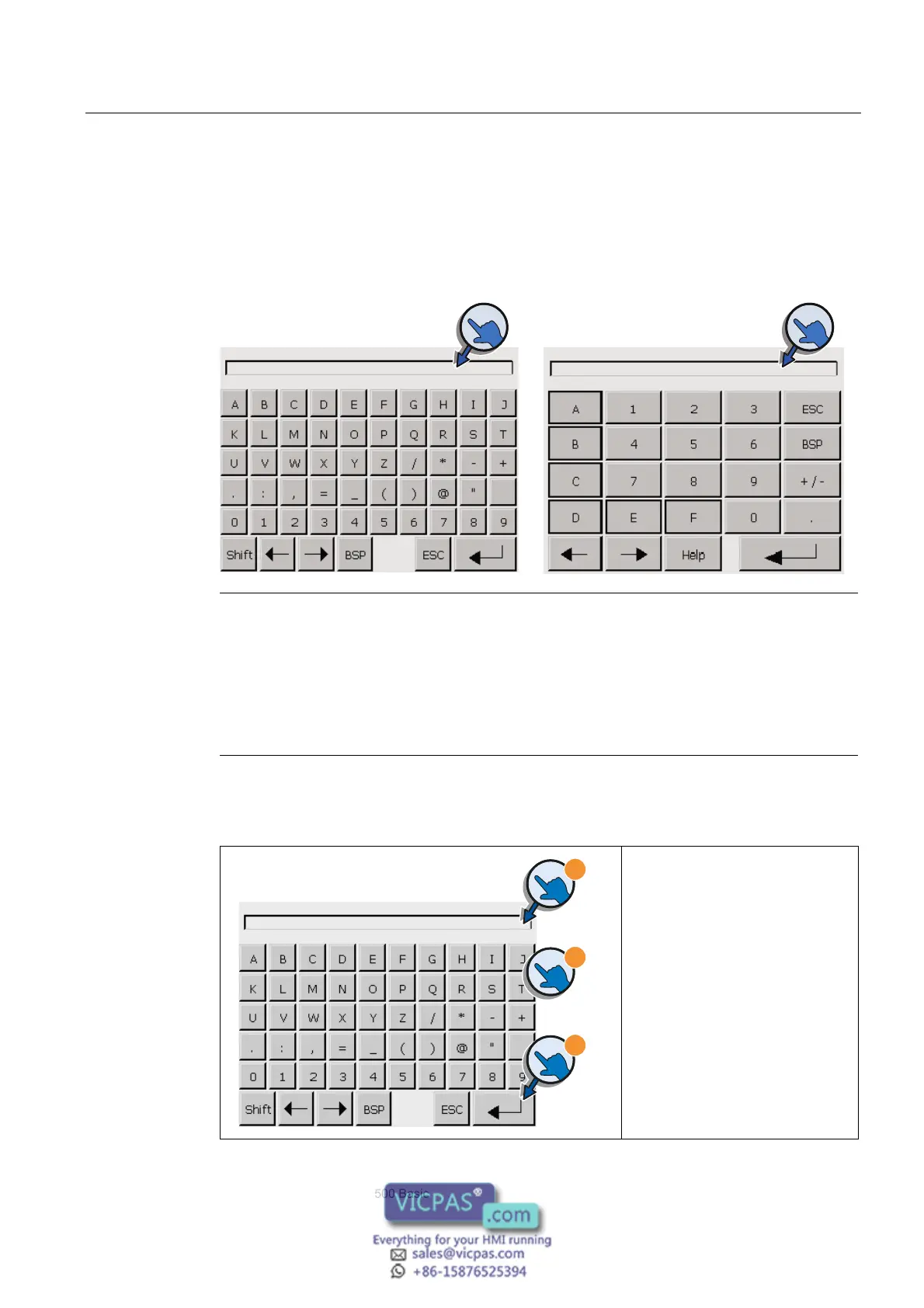

Alphanumerical screen keyboard
The screen keyboard appears on the HMI device touch screen when you touch an operator
control that requires input.
681 ))))
7H[W 1XPEHU V
Note
Job mailbox has no effect
PLC job 51 "Select screen" has no effect while the screen keyboard is open.
Key assignment
The alphanumerical keyboard layout is monolingual.
A language change within the project does not have any effect on the layout of the
alphanumerical screen keyboard.
Entering alphanumerical values
1
2
3
1. Touch the desired operator
control on the screen.
The alphanumerical screen
keyboard opens.
2. Enter the value. Depending on
the settings, the HMI device
outputs an audible signal.
Use the <Shift> key to enter
lower-case letters.
3. Press <Return> key to confirm
your entries, or cancel them with
<ESC>.
Either action closes the screen
keyboard.
