Mounting and connecting

3.2 Mounting the HMI device

KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic

28 Operating Instructions, 08/2008, A5E01075587-01

3.2 Mounting the HMI device

Required tools and accessories

Before beginning mounting, have the following tools and accessories at hand:

Slotted screwdriver, size 2

Mounting clamps

• KTP400 Basic: 5

• KTP600 Basic: 8

• KTP1000 Basic: 12

• TP1500 Basic: 14

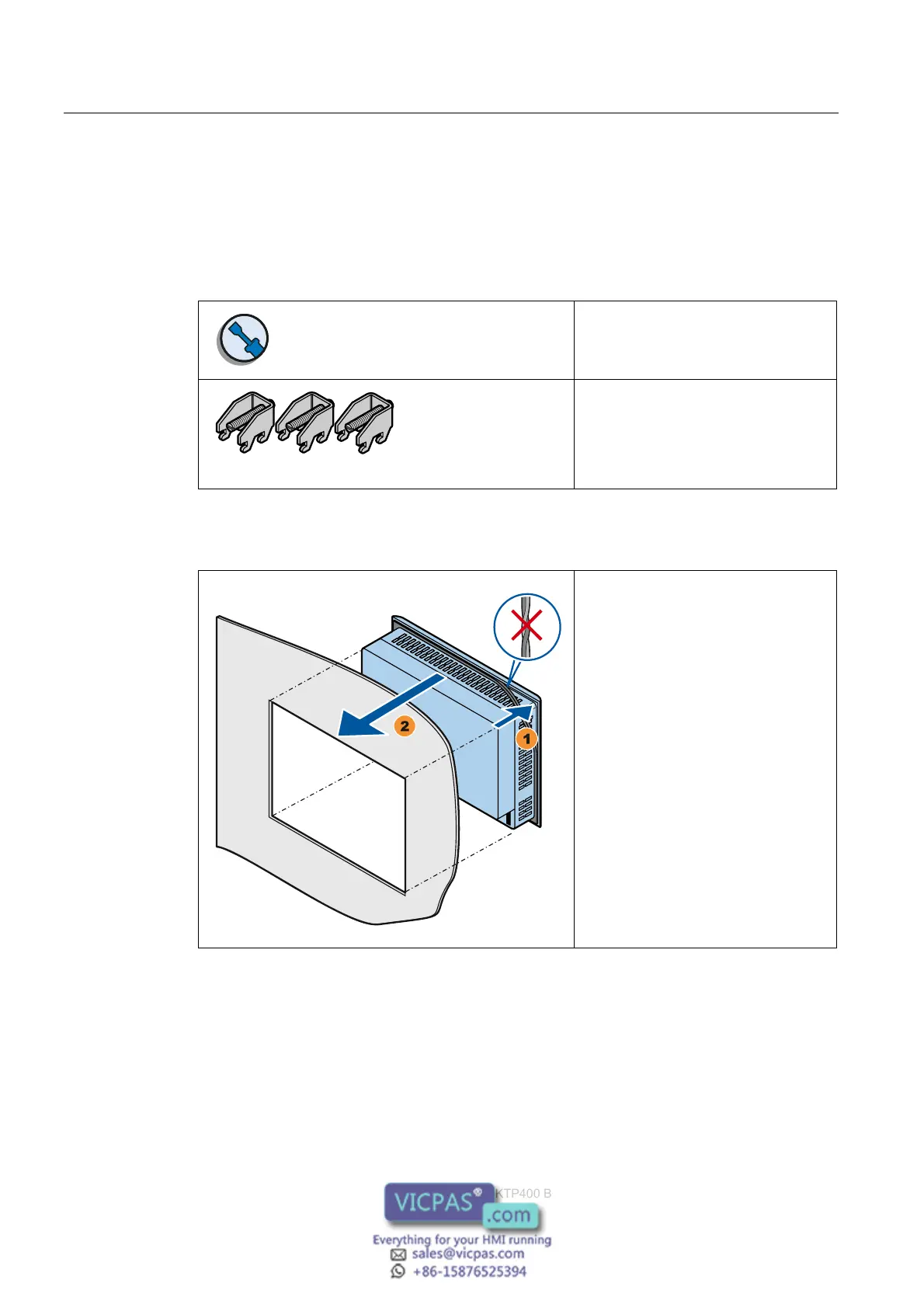

Inserting the HMI device

,3

1. If necessary, insert the mounting

seal in the groove on the back of the

HMI device front panel.

Ensure that the mounting seal is not

twisted. A correctly inserted

mounting seal is required to ensure

IP65 degree of protection.

2. Insert the HMI device into the

mounting cut-out from the front.

Ensure that the protruding labeling

strips are not caught between the

mounting cut-out and HMI device.
