Siemens SIMATIC KTP400 Basic User Manual

Mounting and connecting
3.1 Preparations
KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
26 Operating Instructions, 08/2008, A5E01075587-01

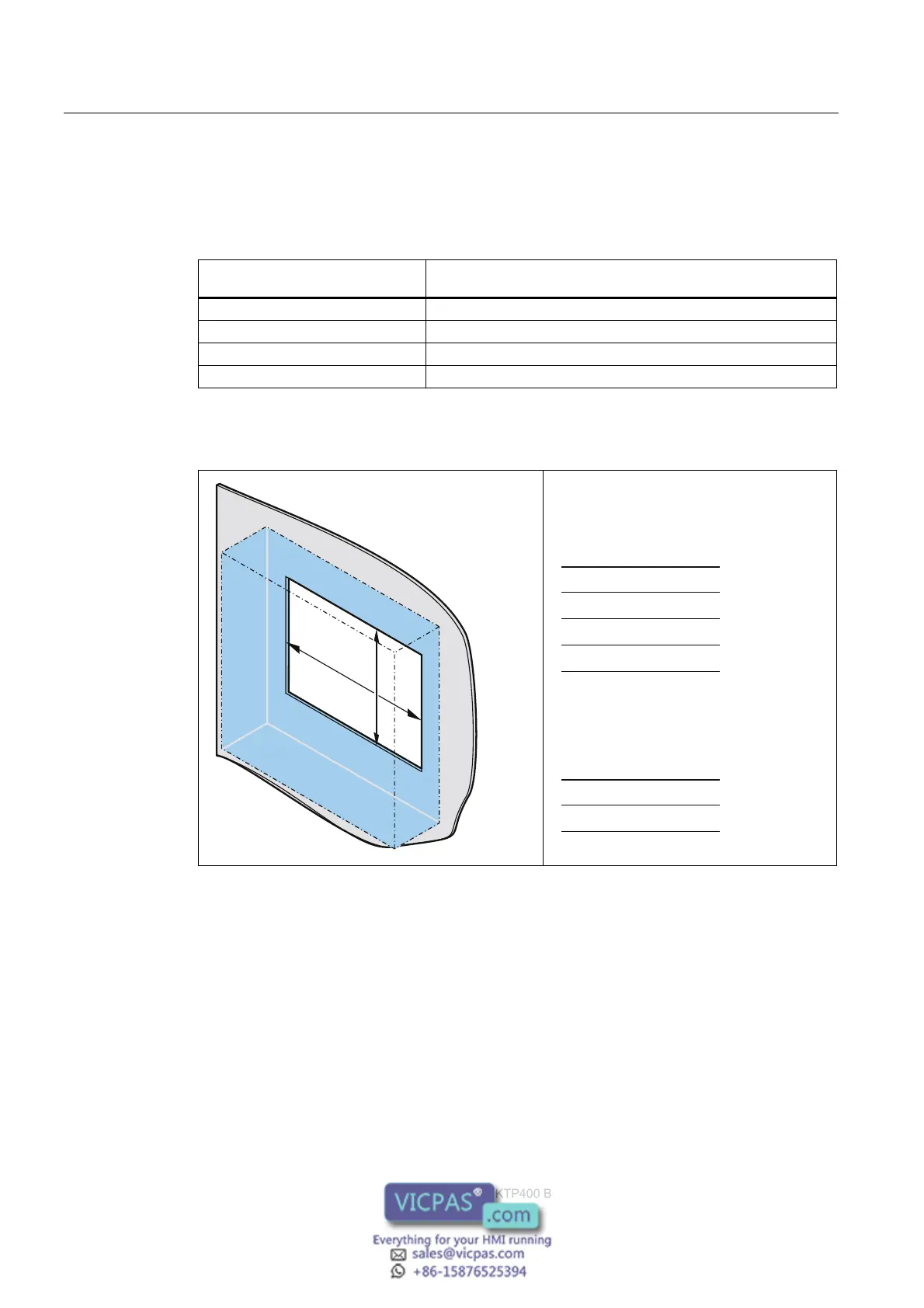

Mounting compatibility
The mounting cut-outs of the Basic panels are compatible with the mounting cut-outs of the
following SIMATIC HMI devices:
Mounting cut-out for the Basic
Panel
Compatible to the mounting cut-outs of the HMI device
KTP400 TP 177B 4"
KTP600 TP 177 A, TP 177B 6", TP 177micro
KTP1000 MP 277 10" Touch, MP 377 12" Touch
TP1500 MP 377 15" Touch, Thin Client 15" Touch
Dimensions of the mounting cut-out
w
h
Dimensions of the mounting cut-out for the
Basic HMI devices in horizontal mounting
position:
+1
0
+1
0
.73
.73
73
.73 
w




h



Dimensions of the mounting cut-out for the
Basic HMI devices in vertical mounting
position:
+1
0
+1
0
.73
.73 
w


h

All dimensions in mm
See also
Accessories (Page 19)

Siemens SIMATIC KTP400 Basic Specifications

General

Display Type	TFT LCD
Display Resolution	480 x 272 pixels
Supply Voltage	24 V DC
Display Size	4.3 inches
Touchscreen	Yes
Interface	PROFINET
Protection Class	IP65
Operating Temperature	0 to 50 °C
Storage Temperature	-20°C to 60°C
Communication Interface	PROFINET
Mounting	Panel Mount
