Mounting and connecting

3.3 Connecting the HMI device

KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic

32 Operating Instructions, 08/2008, A5E01075587-01

Procedure

.73

PP

PP

352),%86

352),1(7

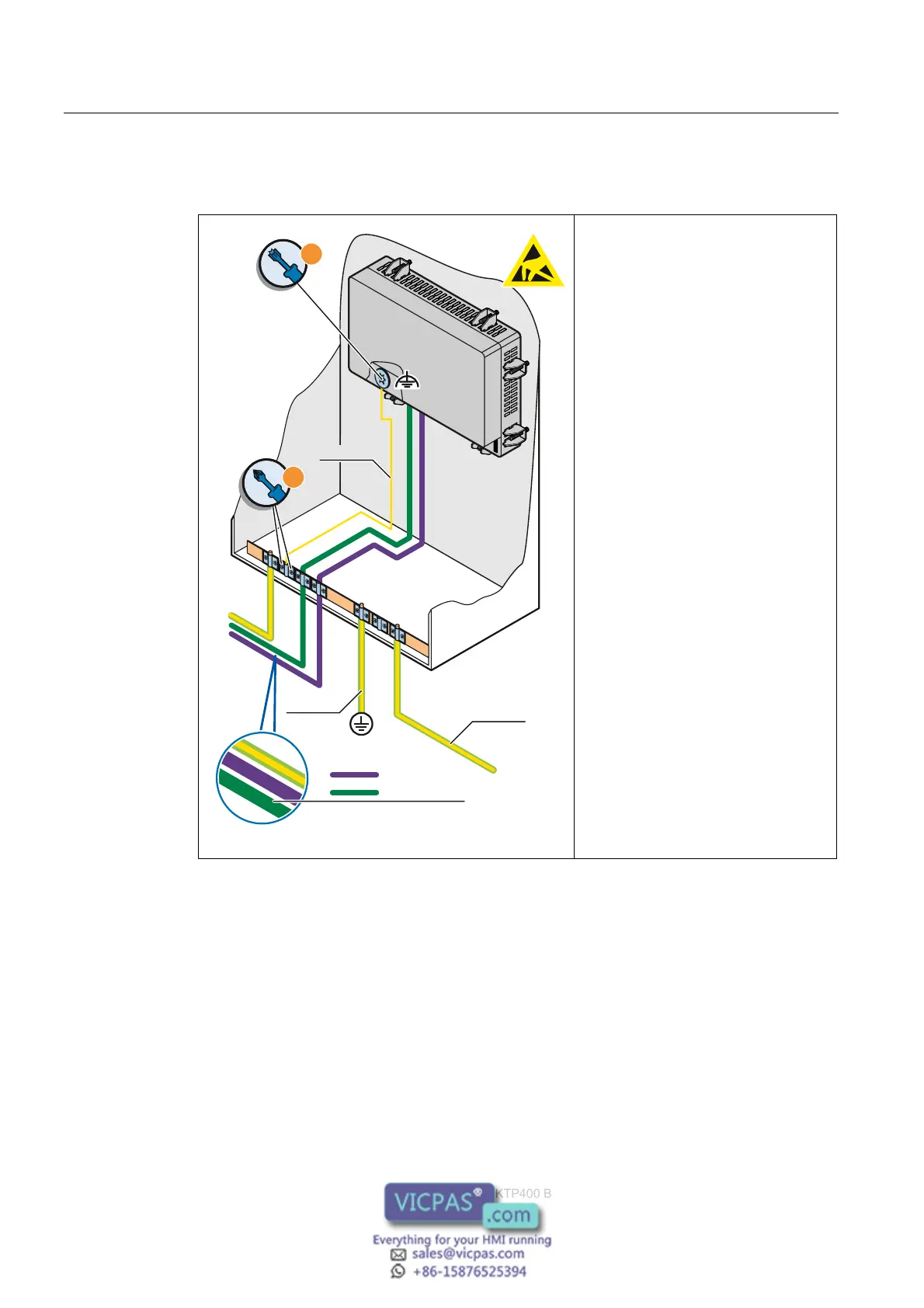

1. Interconnect functional ground of the

HMI device with an grounding cable,

cross-section 4 mm

2. Connect the grounding cable of the

HMI device to the equipotential

bonding rail.
