Siemens SIMATIC NET SCALANCE W722-1 User Manual

Configuring with Web Based Management
5.6 "Interfaces" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
168 Configuration Manual, 11/2014, C79000-G8976-C350-03
●
Negotiation
Shows whether the automatic configuration is enabled or disabled.
●
MAC Address
Shows the MAC address of the port.
5.6.1.2
Configuration
Configuring ports

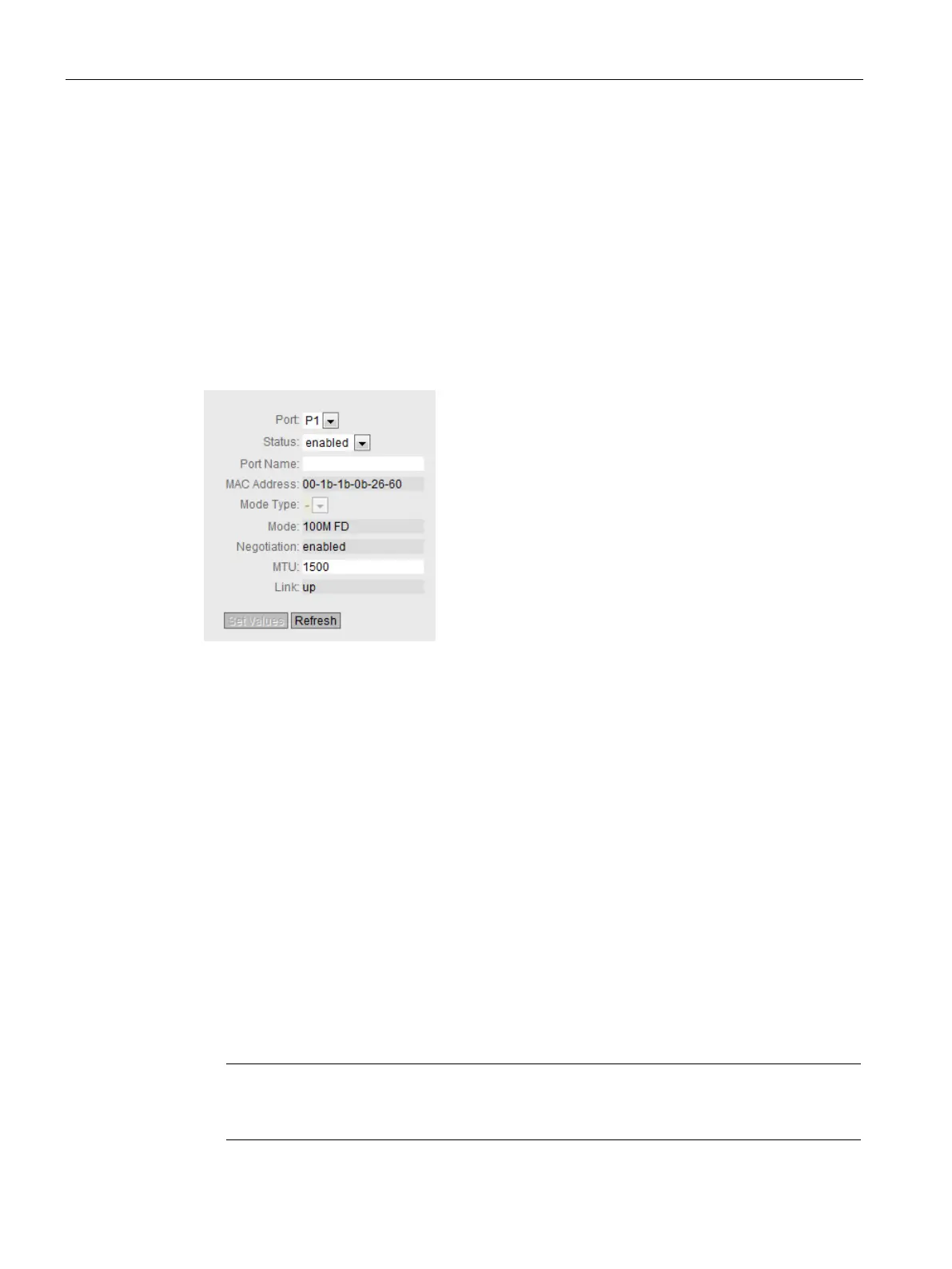

With this page, you configure the Ethernet port of the device.
Description
The table has the following rows:
●
"Port" drop-down list
Select the port to be configured from the drop-down list.
●
"Status" drop-down list
Specify whether the port is enabled or disabled.
– enabled
The port is enabled. Data traffic is possible only over an enabled port.
– disabled
The port is disabled.
●
Input box "Port Name"
Here, enter a name for the port.
●
MAC Address
Shows the MAC address of the port.
●
"Mode Type" drop-down list
Note
This parameter cannot be configured for the SCALANCE W760/W720 devices. The value
is preset to "Autonegotiation".

Siemens SIMATIC NET SCALANCE W722-1 Specifications

General

Product Type Designation	SCALANCE W722-1
Number of Radio Cards	1
Data Transmission Rate	Up to 300 Mbps
Number of RJ45 Ports	1
Operating Temperature Min	-20 °C
Protection Class	IP65
Degree of protection IP	IP65
Power Supply	24 V DC
Supply Voltage	24 V DC
Frequency Bands	2.4 GHz
Interface	Ethernet
Antenna	External
Interfaces	1 x RJ45
Operating Temperature	-20 ... 60 °C
Operating Temperature Max	60 °C
Mounting Type	Wall mounting
Wireless Frequencies	2.412 - 2.472 GHz, 5.180 - 5.825 GHz
