Configuring with Web Based Management
5.7 "Layer 2" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
204 Configuration Manual, 11/2014, C79000-G8976-C350-03
1. Select the "MSTP" check box.
2. From the "Protocol Compatibility" drop-down list, select the type of compatibility.
3. Click the "Set Values" button.
CIST General

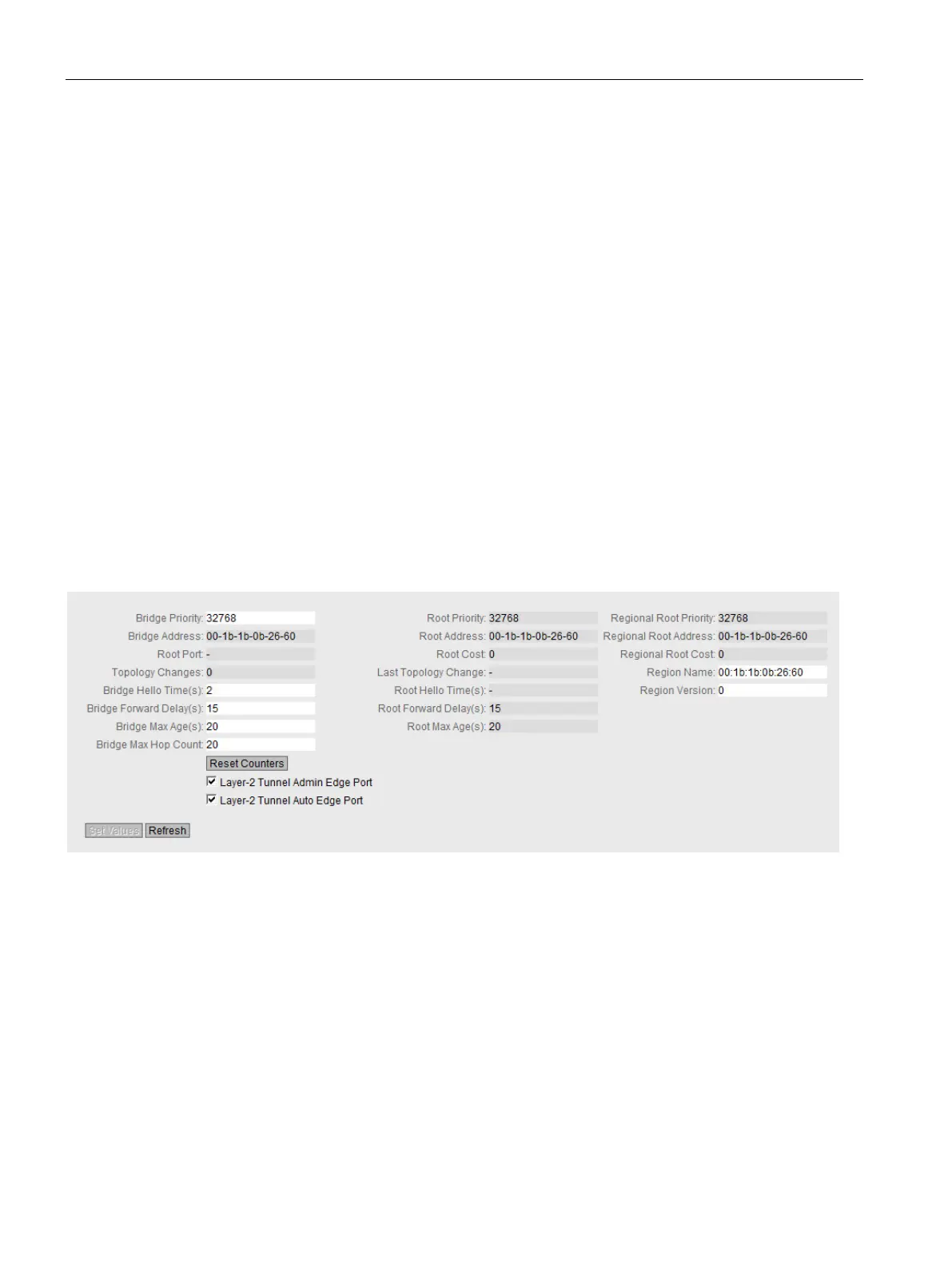

MSTP-CIST configuration
The page consists of the following parts.
● The left-hand side of the page shows the configuration of the device.
● The central part shows the configuration of the root bridge that can be derived from the
spanning tree frames received by an device.
● The right-hand side shows the configuration of the regional root bridge that can be
derived from the MSTP frames received by an device. The displayed data is only visible if
you have enabled "MSTP" on the "General" page and when "Protocol Compatiblity" is set
to "MSTP". This also applies to the "Bridge Max Hop Count" parameter. If the device is a
root bridge, the information on the left and right matches.
Display in access point mode
