Configuring with Web Based Management
5.3 "Wizard" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
47
●
Select the protocol from the drop-down list. The following settings are possible:
– "-" (SNMP disabled)
Access to device parameters via SNMP is not possible.
– SNMPv1/v2c/v3
Access to device parameters is possible with SNMP versions 1, 2c or 3. You can
configure other settings in "System > SNMP > General".
– SNMPv3
Access to device parameters is possible with SNMP version 3. You can configure
other settings in "System > SNMP > General".
●
check box
Enable or disable write access to SNMP variables with SNMPv1/v2c.
● "
SINEMA Configuration Interface
" check box
If the SINEMA configuration interface is enabled, you can download configurations to the
device via the TIA Portal.

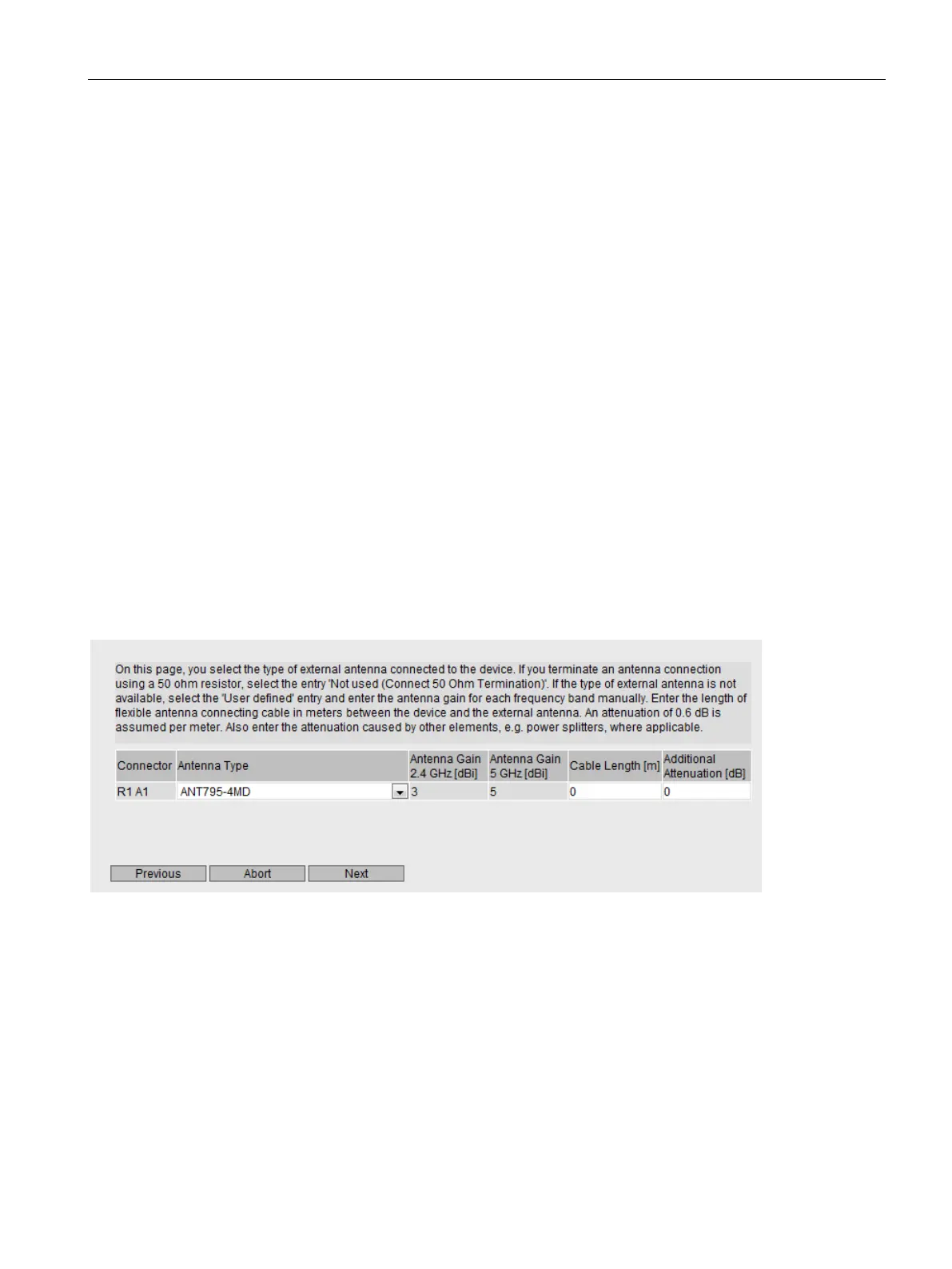

Antenna Settings
Introduction
On this Basic Wizard page, you configure the settings for the external antenna.
This table contains the following columns:
●
Shows the name of the relevant antenna connector.
●
Select the type of external antenna connected to the device. If the type of your antenna is
not available, select the entry "User defined".
