Configuring with Web Based Management
5.4 "Information" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
73
The table contains the following columns:
●
Shows the time the device has been running since the last restart when the described
fault occurred.
●
Display of the fault status for the device.
●
To delete errors of the "Cold/Warm Start" event, click the Clear Fault State" button.

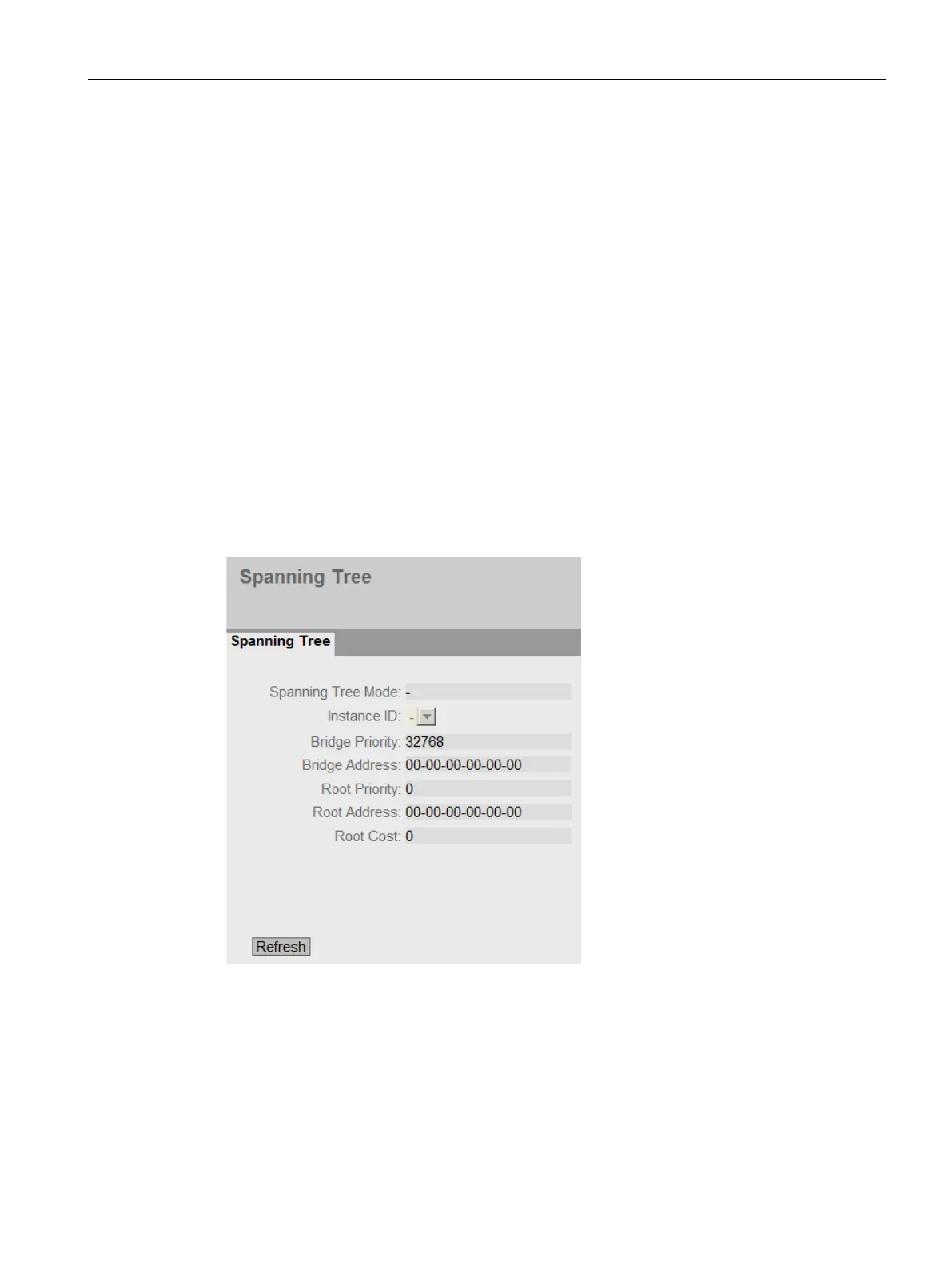

The page shows the current information about the Spanning Tree and the settings of the root
bridge.
If Spanning Tree is turned off, only the basic information about this device is displayed.
If Spanning Tree is turned on, the information about the status of the instance selected in the
"Instance ID" drop-down list is displayed and the information about the configured ports is
shown in the table. The information shown depends on the Spanning Tree mode.
