Signal Recorder
Recording the signal strength
The signal recorder displays or records the received signal strength of the connected access
point. Using this data, you can locate areas with an inadequate signal strength. The signal
recorder can be particularly useful when the client moves along a fixed path.
Note
This tab is only available in the client mode. The WLAN interface of the device
must be
enabled, otherwise no recording is possible.

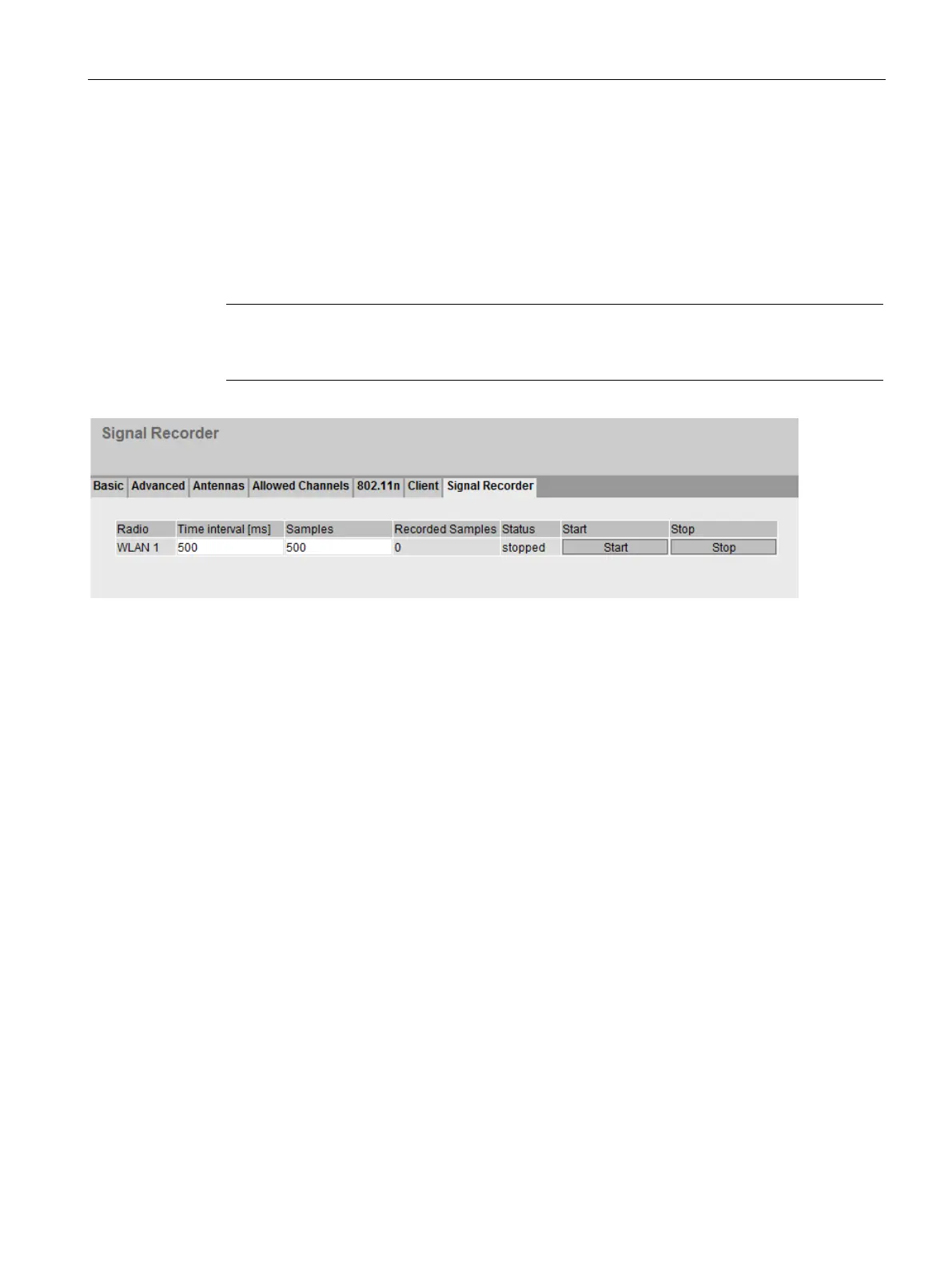

This table contains the following columns:
● Radio
Shows the WLAN interface to which the information applies. Since a client has a WLAN
interface, there is only ever one row for "WLAN 1" in this table.
● Time interval [ms]
The time interval between acquiring two measured values in milliseconds.
● Samples
The number of measurements.
● Recorded Samples
Number of currently taken measurements or the number of measurements taken during
the last recording
● Status
The status of the recording
– stopped
There is currently no recording of the signal strength.
– started
The signal strength is being recorded.
