Configuring with Web Based Management
5.6 "Interfaces" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
188 Configuration Manual, 11/2014, C79000-G8976-C350-03
AP 802.11n Rates
Data transmission speeds in IEEE 802.11n
Note
The tab is available only in access point mode.
The WBM page can only be configured if "802.11n
only" or "802.11n" is set for the WLAN

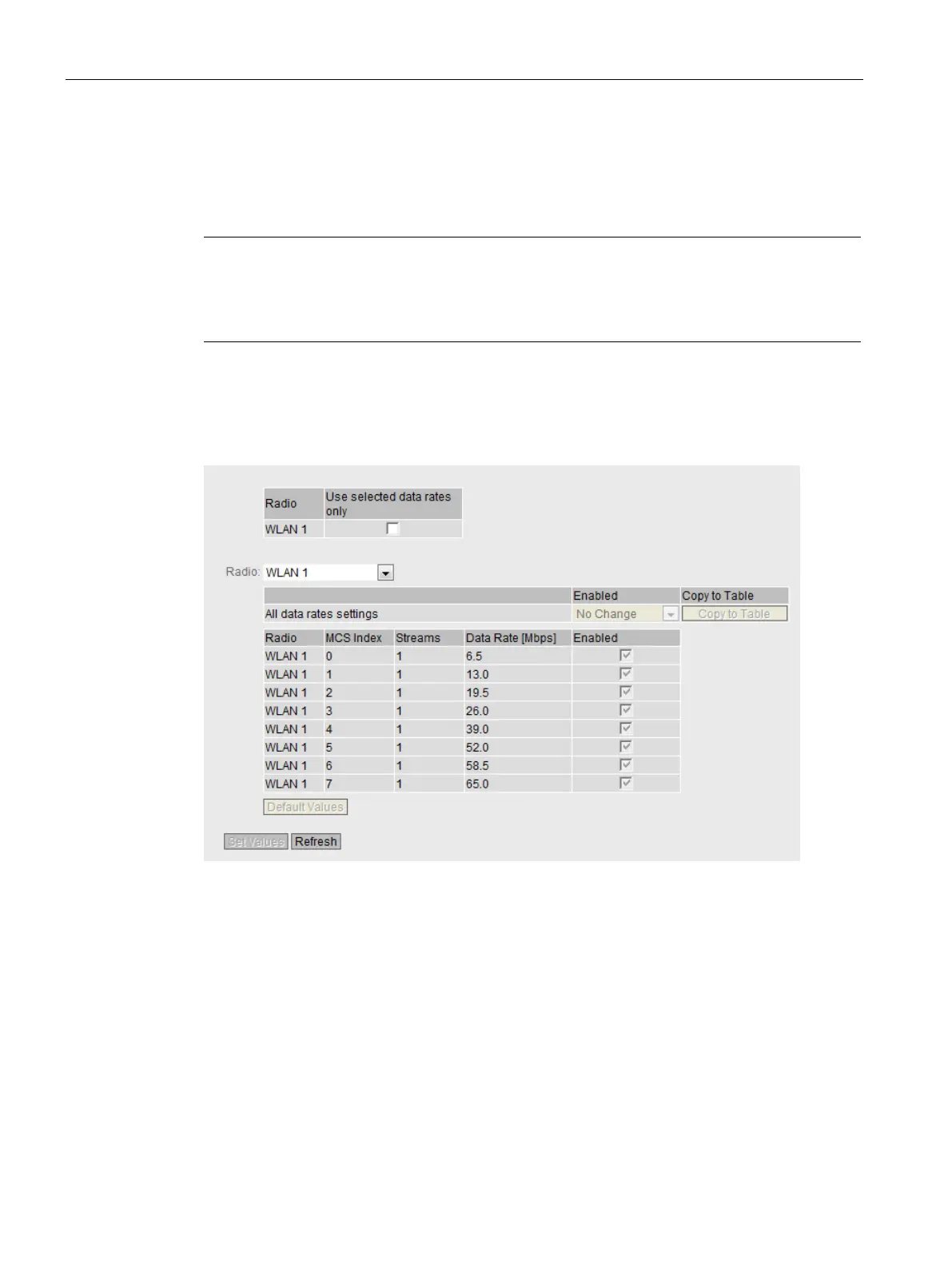

The WBM page shows the available data transmission speeds (MCS = Modulation and
Coding Schemes) for the WLAN mode 802.11n. You can select any combination of these
data transmission speeds. The access point will then use only the selected data
transmission speeds for communication with the clients.
Table 1 has the following columns:
ā
Specifies the WLAN interface to which the information relates.
ā
Use selected data rates only
If you select this option, you can specify the data transmission speeds for the required
WLAN interface.
If this option is disabled, the default values are used. As default, this option is disabled.
In this drop-down list, select the WLAN interfaces displayed in Table 3 (MCS Index).
