Configuring with Web Based Management
5.8 "Layer 3" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
217

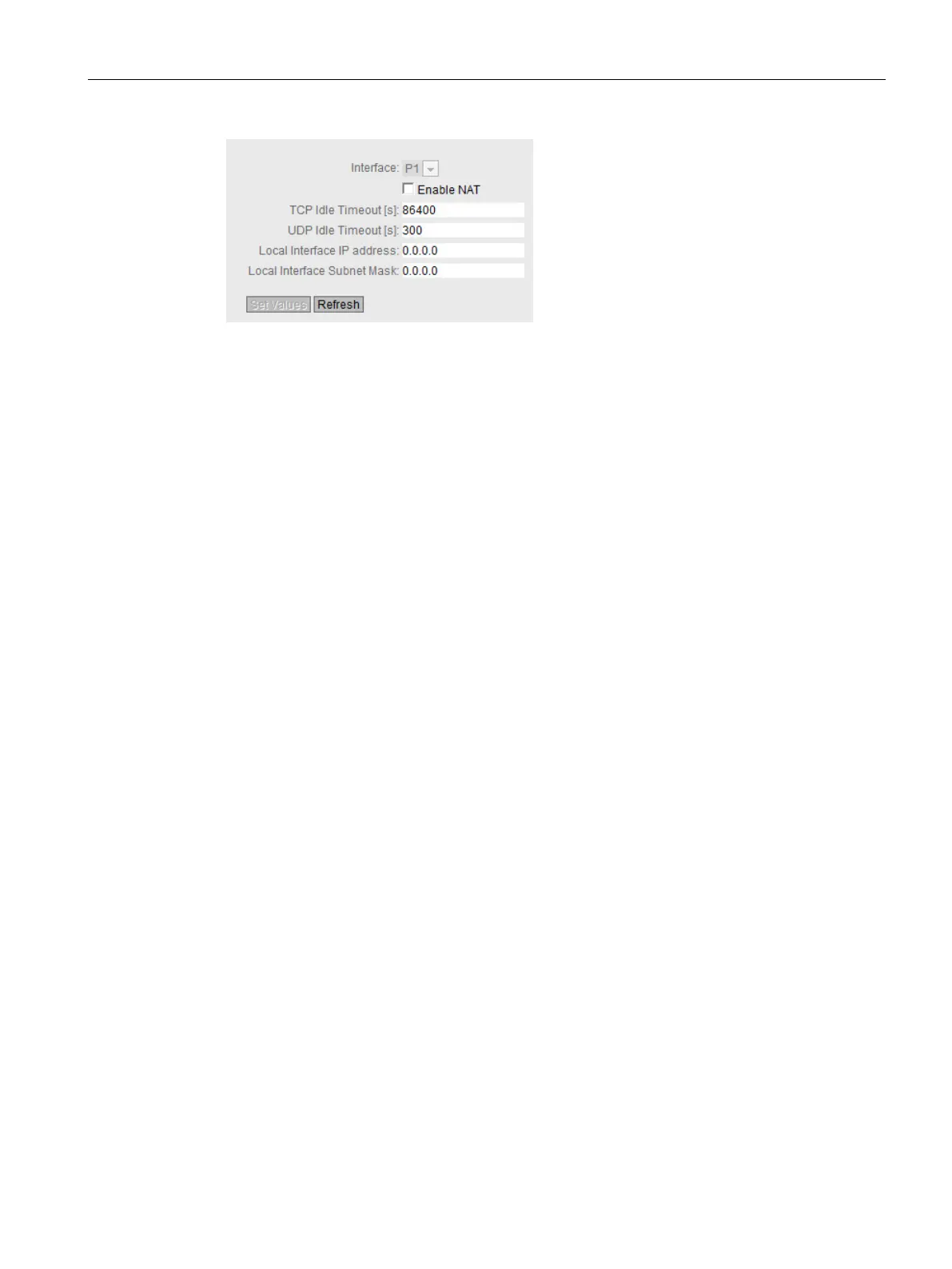

The page contains the following boxes:
●
Drop-down list "Interface"
From the drop-down list, select the required Ethernet interface.
●
Enable or disable NAT for the Ethernet interface. Can only be enabled if "Own" is set on
the client for "MAC Mode".
●
Input box "TCP Idle Timeout [s]"
Enter the required time in seconds. If no data exchange takes place, the TCP connection
is deleted from the translation table when this time has elapsed.
The range of values is 1 to 4294967295.
Default setting: 86400 seconds
●
Input box "UDP Idle Timeout [s]"
Enter the required time in seconds. If no data exchange takes place, the UDP connection
is deleted from the translation table when this time has elapsed.
The range of values is 1 to 4294967295.
Default setting: 300 seconds
●
Input box "Local Interface IP address"
Enter the local IP address of the Ethernet interface. This IP address is the gateway
address of the local device.
●
Input box "Local Interface Subnet Mask"
Enter the subnet mask for the local Ethernet.
1. In the "Local Interface IP addresses" input box, enter the local IP address of the Ethernet
interface.
2. In the "Local Interface Subnet Mask" input box, enter the subnet mask for the local
Ethernet
3. Enable NAT for the Ethernet interface.
4. Click the "Set Values" button.
