Siemens SIMATIC NET SCALANCE W760 Series User Manual

Configuring with Web Based Management
5.6 "Interfaces" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
184 Configuration Manual, 11/2014, C79000-G8976-C350-03
5.6.2.7
AP WDS
Communication between access points
In normal operation, the access point is used as an interface to a network and communicates
with clients. There are, however, situations in which several access points need to
communicate with each other, for example to extend wireless coverage or to set up a
wireless backbone. This mode is possible with WDS (Wireless Distributed System).
Note
This tab is available only in acc
ess point mode.
Description

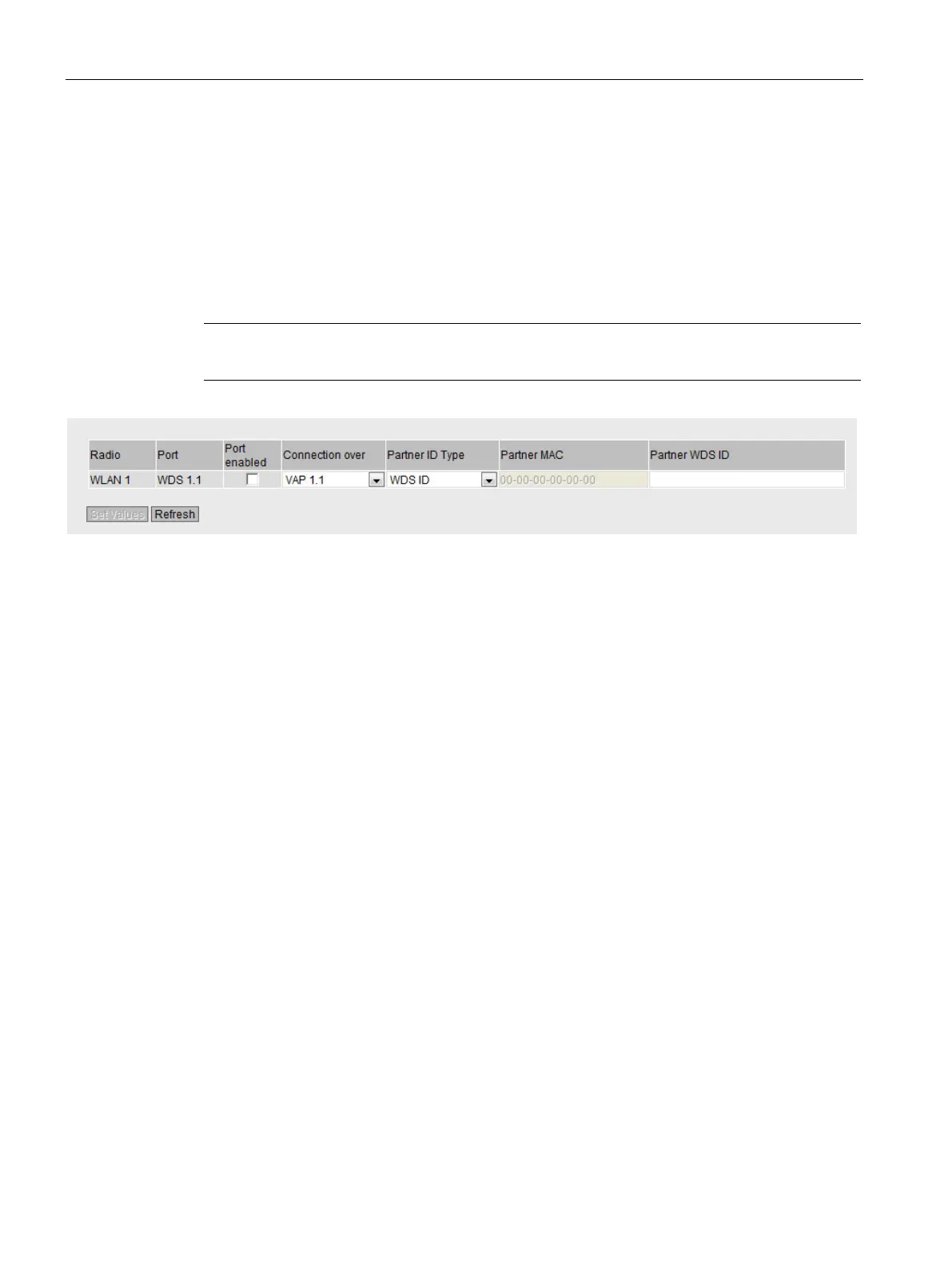

The table has the following columns:
●
Radio
Shows the available WLAN interfaces in this column.
●
Port
Shows the port.
●
Port enabeld
Enables the WDS interface.
●
Connection over
Specify the VAP interface via which the WDS connection is established. Both the MAC
address of the VAP as well as security settings (for example WPA2) are used.
●
Partner ID Type
Specify the type of WDS communication.
– MAC Address
The MAC address is used. The "Partner WDS ID" input box is grayed out. In "Partner
MAC", enter the MAC address of the WDS partner.
– WDS ID
The WDS ID is used. The "Partner MAC" input box is grayed out. In "Partner WDS
ID", enter the WDS ID of the WDS partner.
●
Partner MAC
Enter the MAC address of the WDS partner.
●
Partner WDS ID
Enter the WDS ID of the WDS partner.
For the WDS ID, ASCII code 0x20 to 0x7e is used.
