Configuring with Web Based Management
5.4 "Information" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
79
Packet Type
Received frames sorted by type

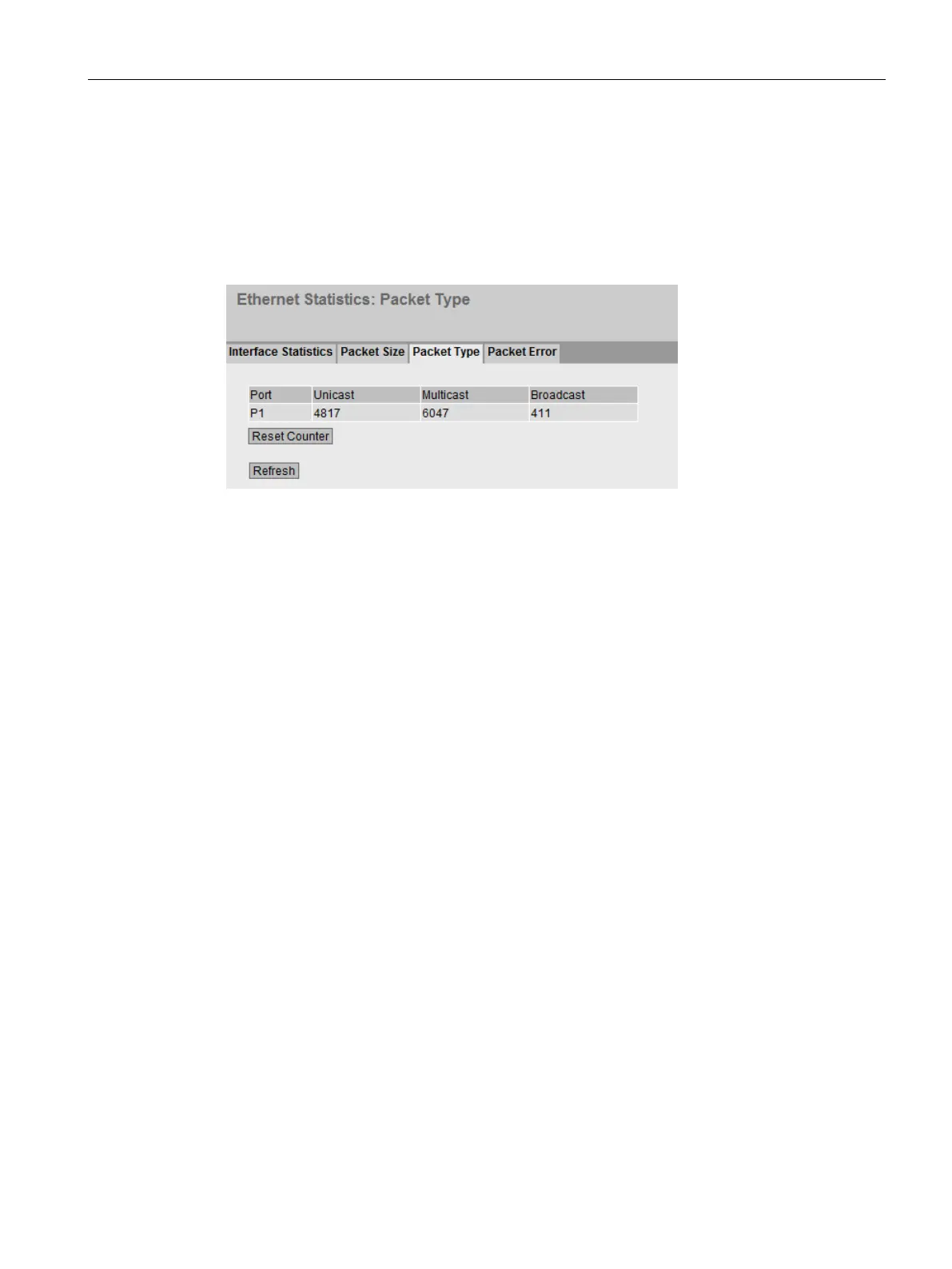

This page displays how many frames of the type "Unicast", "Multicast" and "Broadcast" were
received at each port. You cannot configure anything on this page.
The table has the following columns:
●
Shows the available ports.
●
Unicast/Multicast /Broadcast
The other columns after the port number contain the absolute numbers of the incoming
frames according to their frame type "Unicast", "Multicast" and "Broadcast"
Description of the button
"Reset Counter" button
Click "Reset Counter" to reset all counters. The counters are reset by a restart.
