Configuring with Web Based Management
5.4 "Information" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
80 Configuration Manual, 11/2014, C79000-G8976-C350-03
Packet Error
Bad received frames

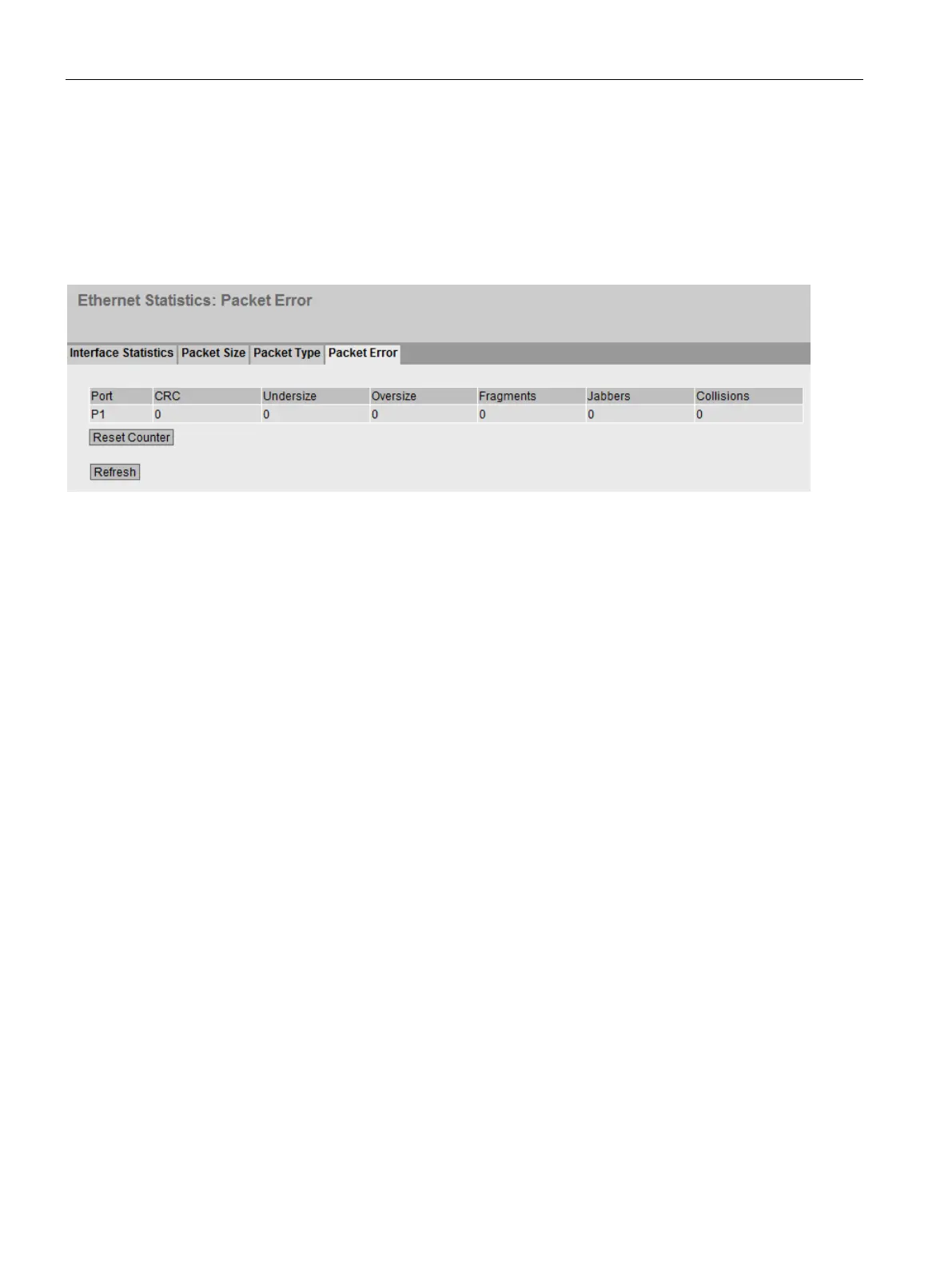

This page shows how many bad frames were received per port. You cannot configure
anything on this page.
The table has the following columns:
●
Shows the available ports.
●
The other columns after the port number contain the absolute numbers of the incoming
frames according to their error type.
In the columns of the table, a distinction is made according to the following error types:
– CRC
Packets whose content does not match the CRC checksum.
– Undersize
Packets with a length less than 64 bytes.
– Oversize
Packets discarded because they were too long.
– Fragments
Packets with a length less than 64 bytes and a bad CRC checksum.
– Jabbers
VLAN-tagged packets with an incorrect CRC checksum that were discarded because
they were too long.
– Collisions
Detected collisions.
