Siemens SIMATIC NET SCALANCE W760 Series User Manual

Configuring with Web Based Management
5.9 "Security" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
230 Configuration Manual, 11/2014, C79000-G8976-C350-03
Description

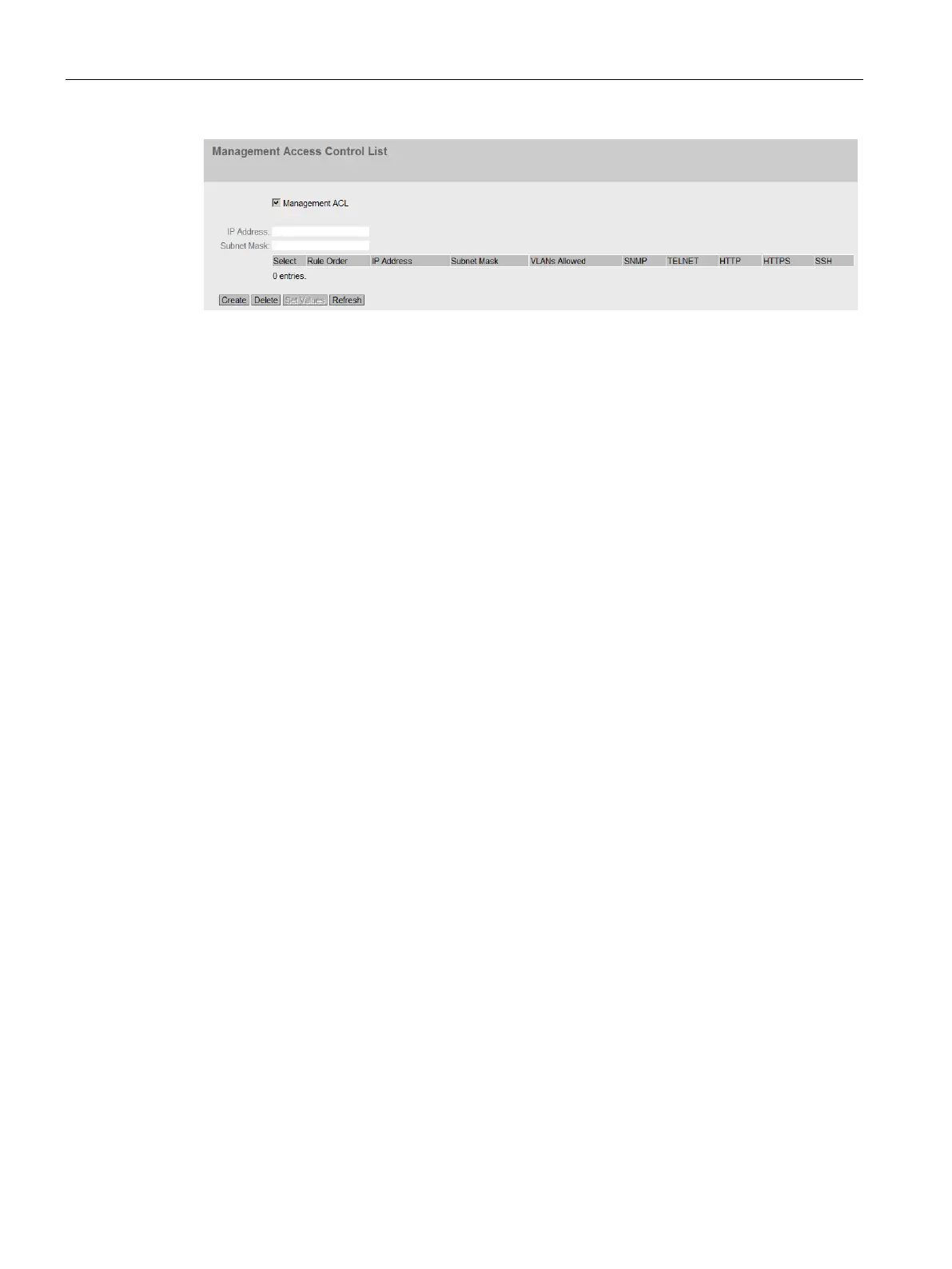

The page contains the following boxes:
●
"Management ACL" check box
Enable or disable the function.
●
"IP Address" input box
Enter the IP address or the network address to which the rule will apply. If you use the IP
address 0.0.0.0, the settings apply to all IP addresses.
●
"Subnet Mask" input box
Enter the subnet mask. The subnet mask 255.255.255.255 is for a specific IP address. If
you want to allow a subnet, for example a C subnet, enter 255.255.255.0. The subnet
mask 0.0.0.0 applies to all subnets.
The table has the following columns:
●
Select
Select the check box in the row to be deleted.
●
Rule Order
Shows the number of the rule. If you click the "Create" button, a new row with a unique
number is created
●
IP Address
Shows the IP address.
●
Subnet Mask
Shows the subnet mask.
●
VLANs Allowed
Only available if 802.1Q VLAN Bridge is set for "Layer 2 > VLAN > General".
Enter the number of the VLAN in which the device is located. The station can only access
the device if it is located in this configured VLAN. If this input box remains empty, there is
no restriction relating to the VLANs.
●
SNMP
Specify whether the station (or the IP address) accesses the device using the SNMP
protocol.
●
TELNET
Specify whether the station (or the IP address) accesses the device using the TELNET
protocol.
●
HTTP
Specify whether the station (or the IP address) accesses the device using the HTTP
protocol.
