Result

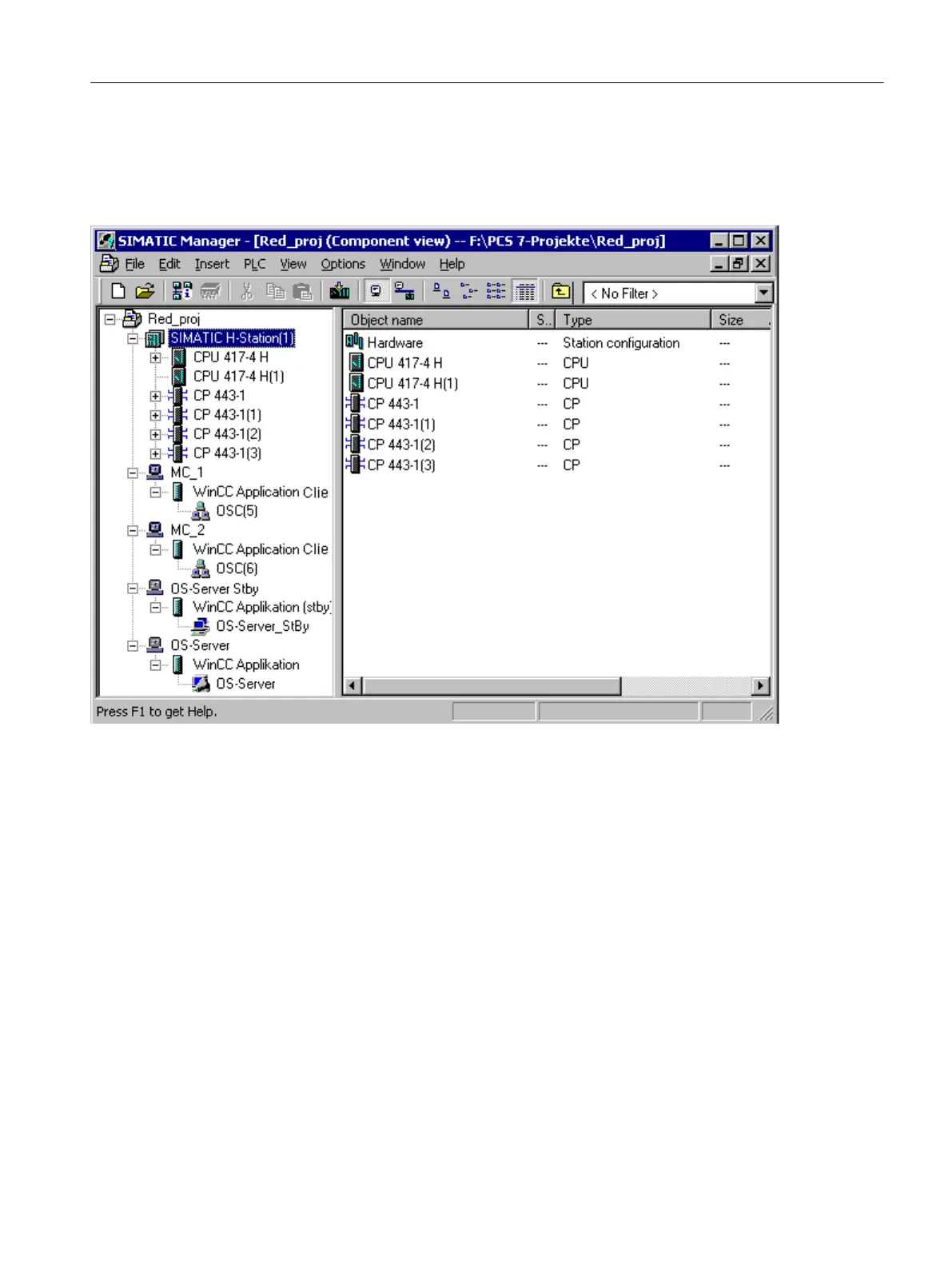

Your project should now correspond to the project shown in the following figure. You can
change the names of the components as you wish.
Using reference clients
You can set up additional monitoring stations using reference clients. They use configured OS
clients as a basis.
Refer to the configuration manual
Process Control System PCS 7; Operator Station for more
information
.
5.5.9 How to configure an OS client for permanent operability
Introduction
A minimum of two OS clients are required for permanent operability. A preferred server is
specified separately for each client, thus distributing the OS clients to the redundant OS
servers. This ensures that the process is continuously available even during a switchover from
a faulty OS server to the redundant OS partner server.
Advantages of high availability components
5.5 Operator stations
High Availability Process Control Systems (V9.0)
Function Manual, 05/2017, A5E39221836-AA 165
