Result

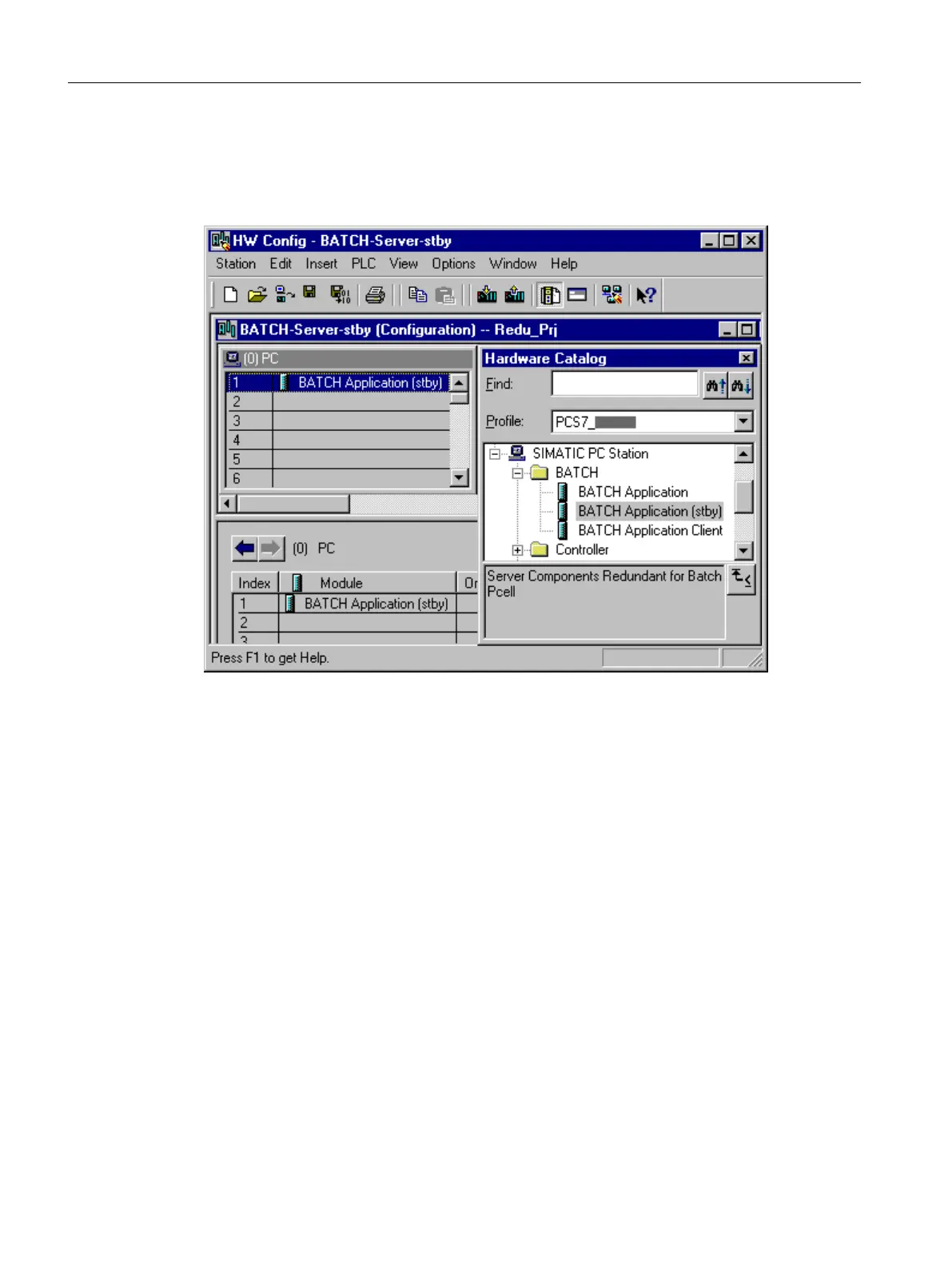

The following figure shows an example configuration of a SIMATIC PC station with BATCH
application (stby):
Additional information
● Configuration manual
Process Control System PCS 7; Engineering System
; section "How
to Expand a Project with Pre-Configured Stations Using the PCS 7 Wizards"
● Manual
Process Control System PCS 7; SIMATIC BATCH
5.6.3 How to configure a BATCH client
Introduction
A BATCH client and a OS client are often run together on one SIMATIC PC station. You
configure both client applications in HW Config in a SIMATIC PC station.
Requirements
● The SIMATIC BATCH software package (BATCH Engineering) has been installed in
addition to the PCS 7 software.
● The PCS 7 project is open in SIMATIC Manager.
Advantages of high availability components
5.6 SIMATIC BATCH stations
High Availability Process Control Systems (V9.0)
172 Function Manual, 05/2017, A5E39221836-AA
