Siemens SIMATIC PCS 7 - How to Configure Redundant PROFIBUS DP

Result

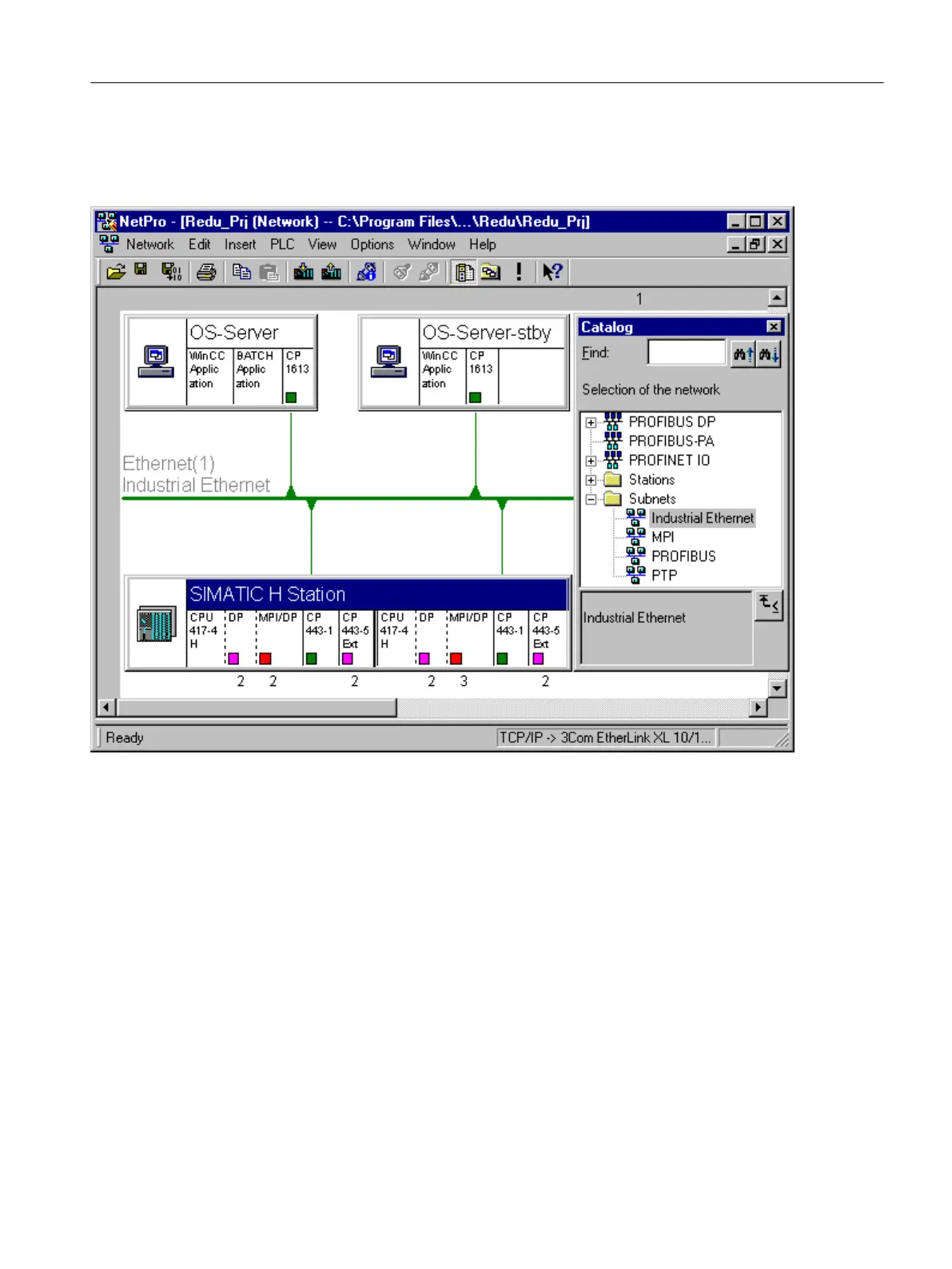

The following figure shows the resulting configuration:
Additional information
● Online help for STEP 7
5.3.4 How to configure redundant PROFIBUS DP
Introduction
The following section describes how to create and connect a redundant PROFIBUS DP.
Requirements
● The PCS 7 project with a SIMATIC H station is open in SIMATIC Manager.
● HW Config is open.
Advantages of high availability components
5.3 Communications connections
High Availability Process Control Systems (V9.0)
Function Manual, 05/2017, A5E39221836-AA 119
