Configuration
Examples using the FF Link for connections to field devices via AFD and AFS are shown in
the following figures.
UHGXQGDQW
'3PDVWHUV\VWHP
UHGXQGDQW
'3PDVWHUV\VWHP
)281'$7,21)LHOGEXV
PD[$)'
PD[$)'
PD[
PD[
PD[
PD[
[&RPSDFW))/LQN
[&RPSDFW))/LQN
+LJKDYDLODELOLW\)281'$7,21)LHOGEXV
+LJKDYDLODELOLW\)281'$7,21)LHOGEXV
352),%86'3
6+
$)6
$)'L6
$)'
$)'L6
$)'

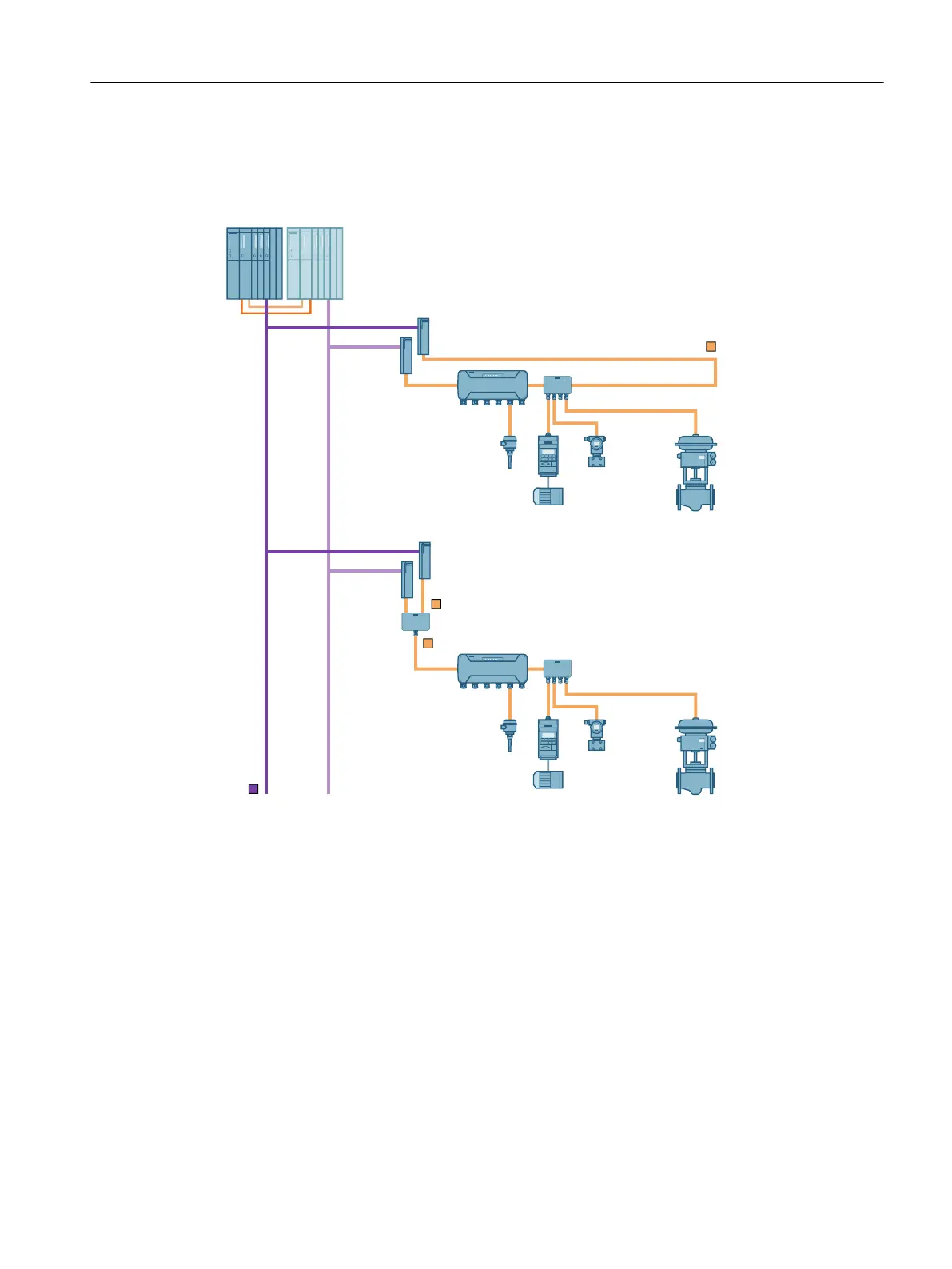

Figure 4-7 Connection to a redundant PROFIBUS DP
Transmission rate
You have two interconnection options for the gateway between PROFIBUS DP and
FOUNDATION Fieldbus . These result in different transmission rates on PROFIBUS DP.
● If you connect via a bus link, a transmission rate of up to 12 Mbps is possible on PROFIBUS
DP.
● The transmission speed on the FOUNDATION Fieldbus is 31.25 Kbps.
Availability - high availability interfacing
In a redundant system, we recommend that you implement the interface to PROFIBUS DP
redundantly (redundant bus link).
High availability solutions in PCS 7
4.3 Solutions for communication
High Availability Process Control Systems (V9.0)
Function Manual, 05/2017, A5E39221836-AA 91
